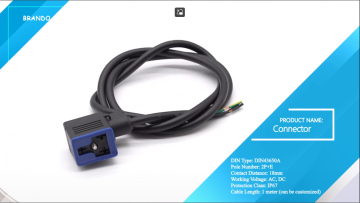

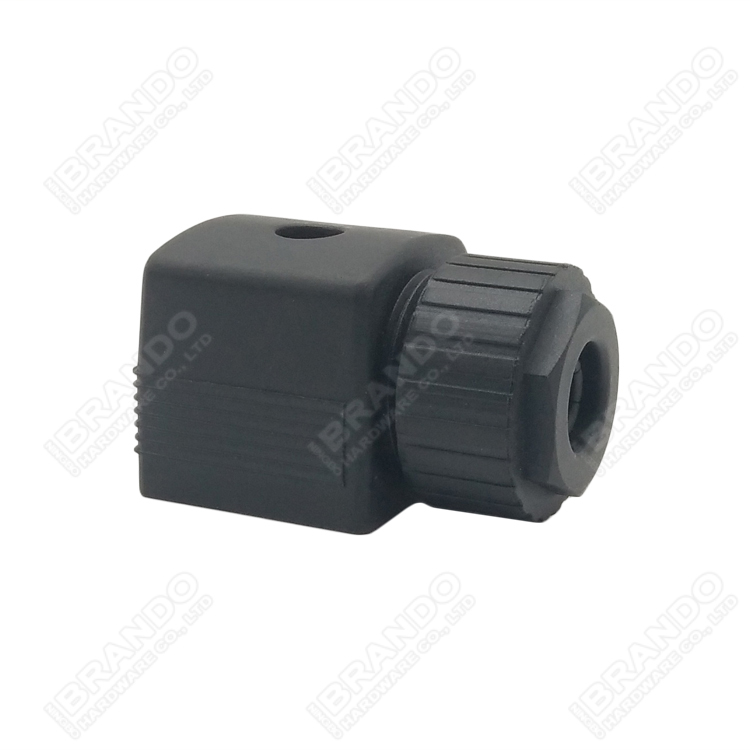

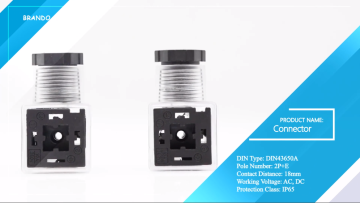

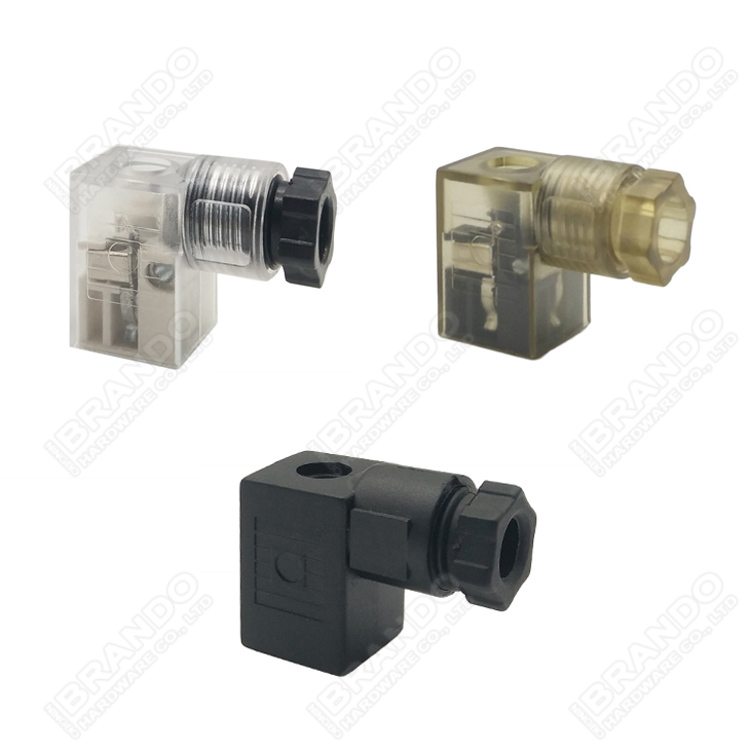

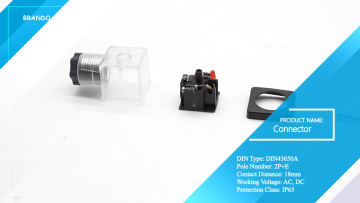

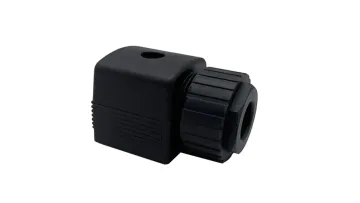

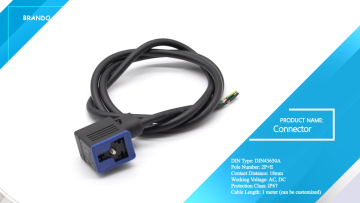

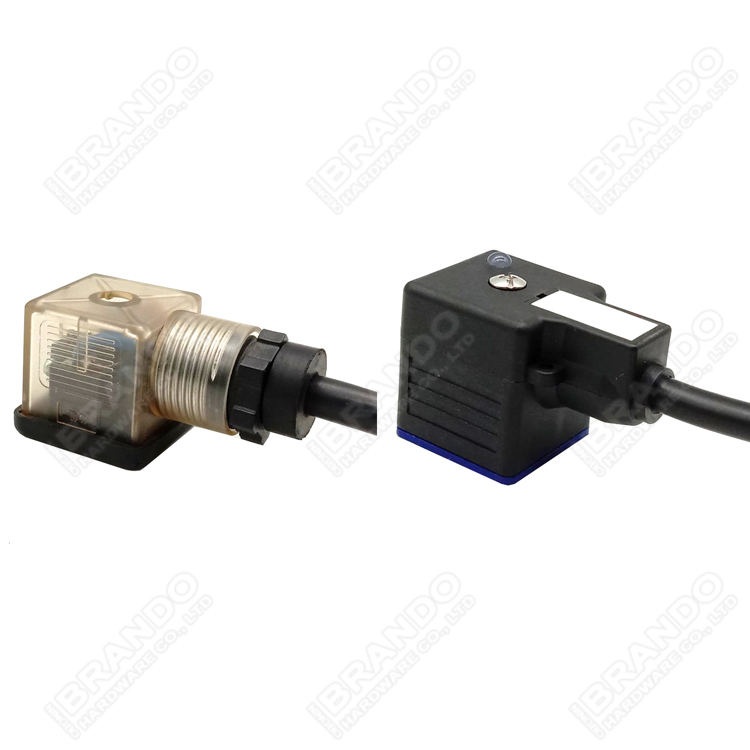

DIN 43650A Solenoid Valve Coil Connector With Cable
DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications. They're not affected by voltage surges or electro-magnetic interference.
DIN 43650 solenoid connectors are available in three formats: Form A, Form B or Form C. They're made to function within certain voltage limits. There are also three gasket options available for DIN connectors: NBR Profile, NBR Flat or EPDM Flat, each with different characteristics. While NBR rubber is an oil-resistant material, EPDM rubber isn't as resilient against oils but can cope better with ozone, heat and adverse weather conditions. Male and female solenoid connectors are available and they're designed with different enclosure locks to choose from.

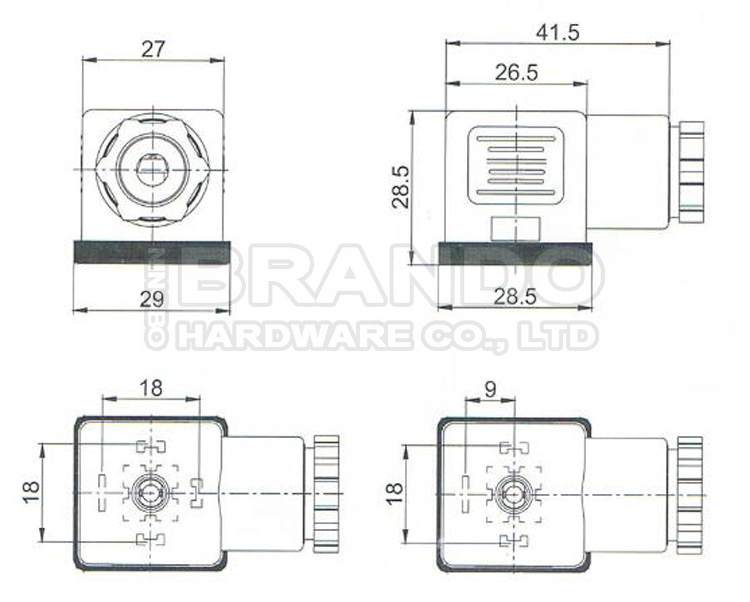

Technical Data of DIN43650A Solenoid Valve Connector:
|
DIN 43650 Type
|
DIN 43650 Form A
|
|
Termination Method
|
Screw
|
|
Contact Spacing
|
18mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x28mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|

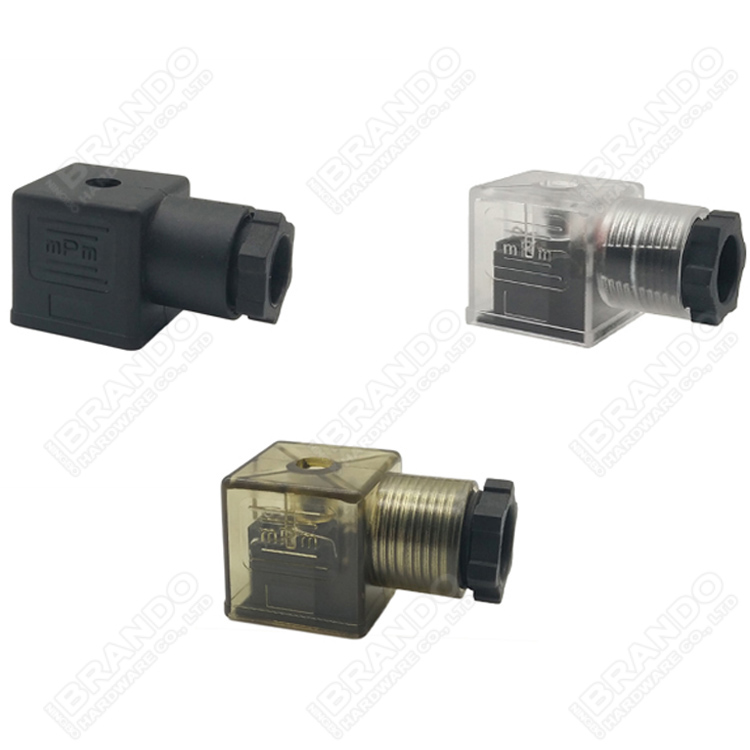

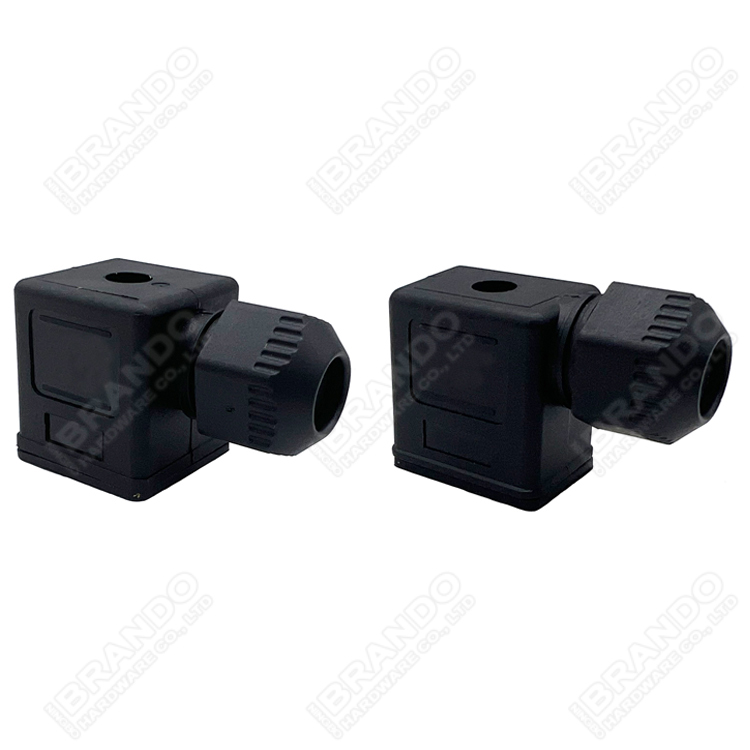

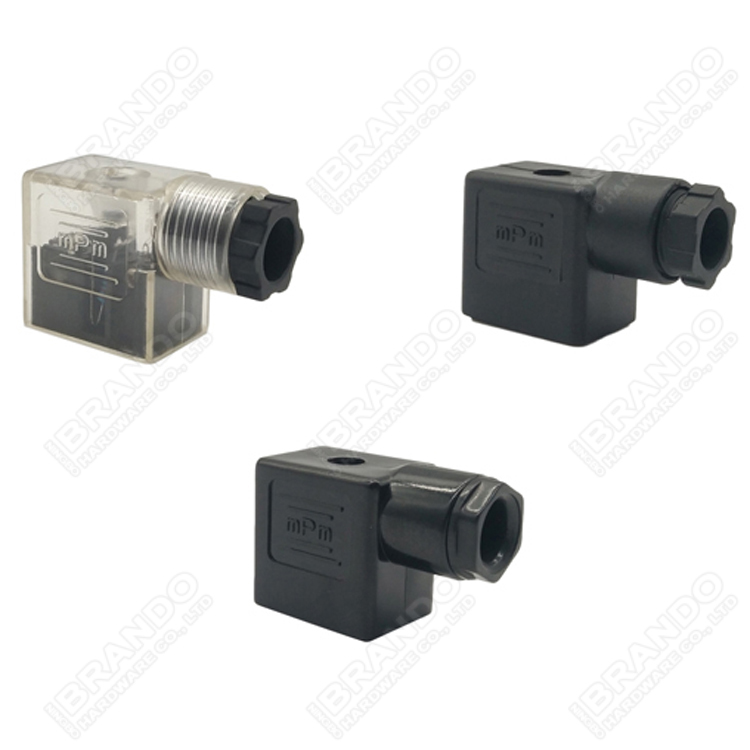

More Solenoid Valve Coil Connectors for you to choose:
DIN43650A
DIN43650B
DIN43650C
Waterproof
With Cable
Other

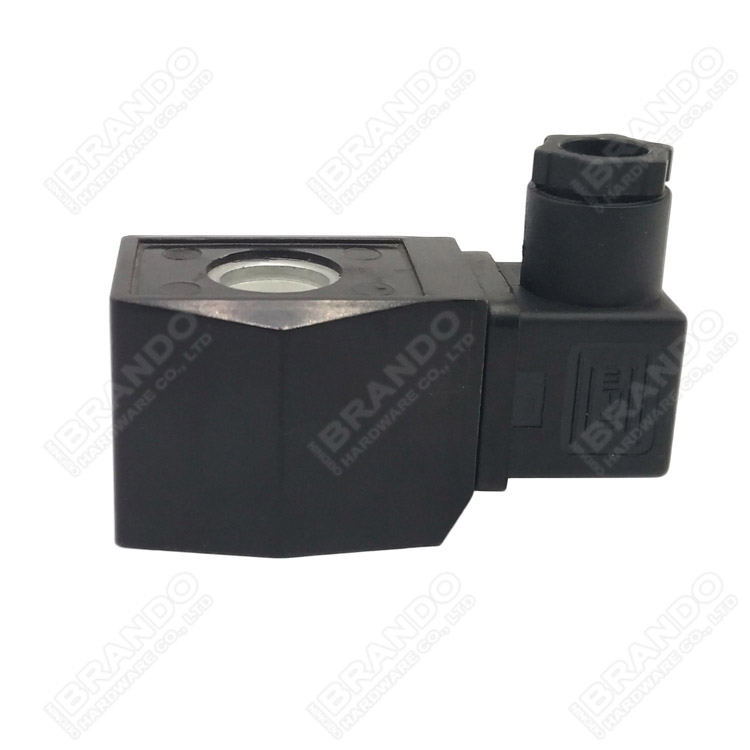

More Solenoid Valve Coils for you to choose:
 |
 |
 |
 |
