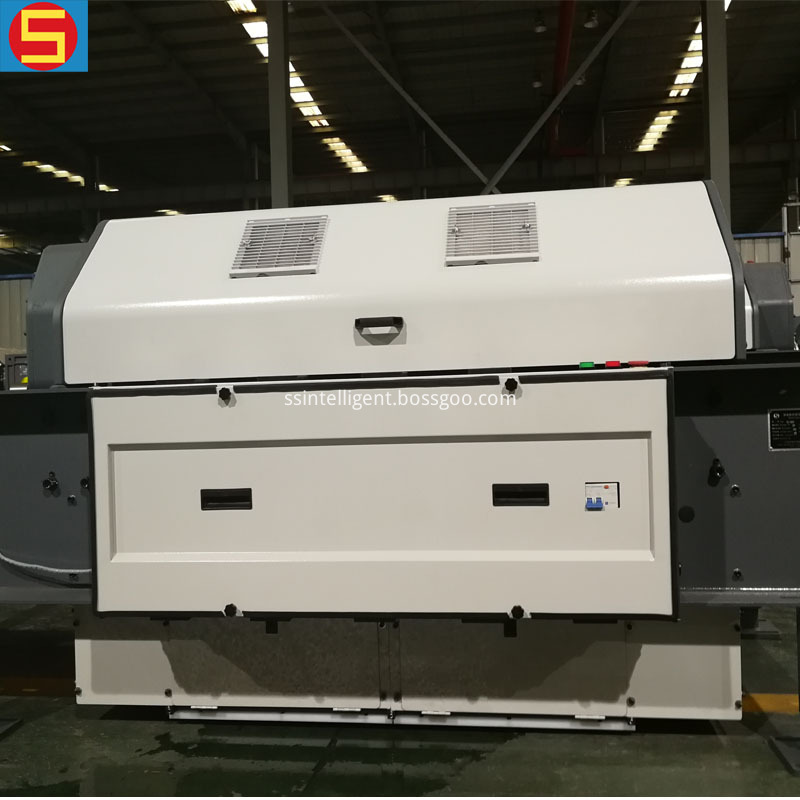

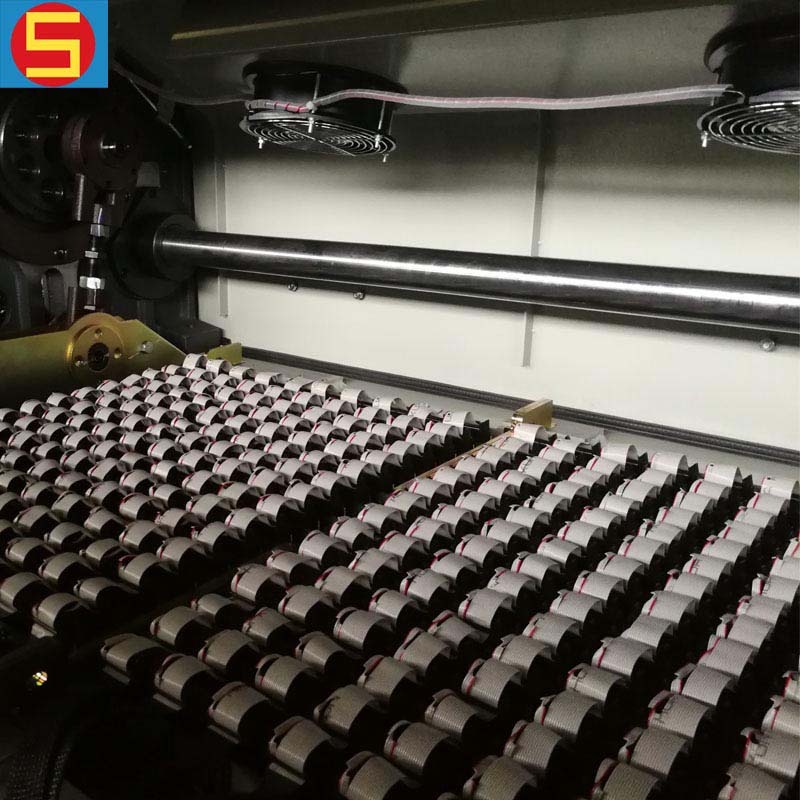

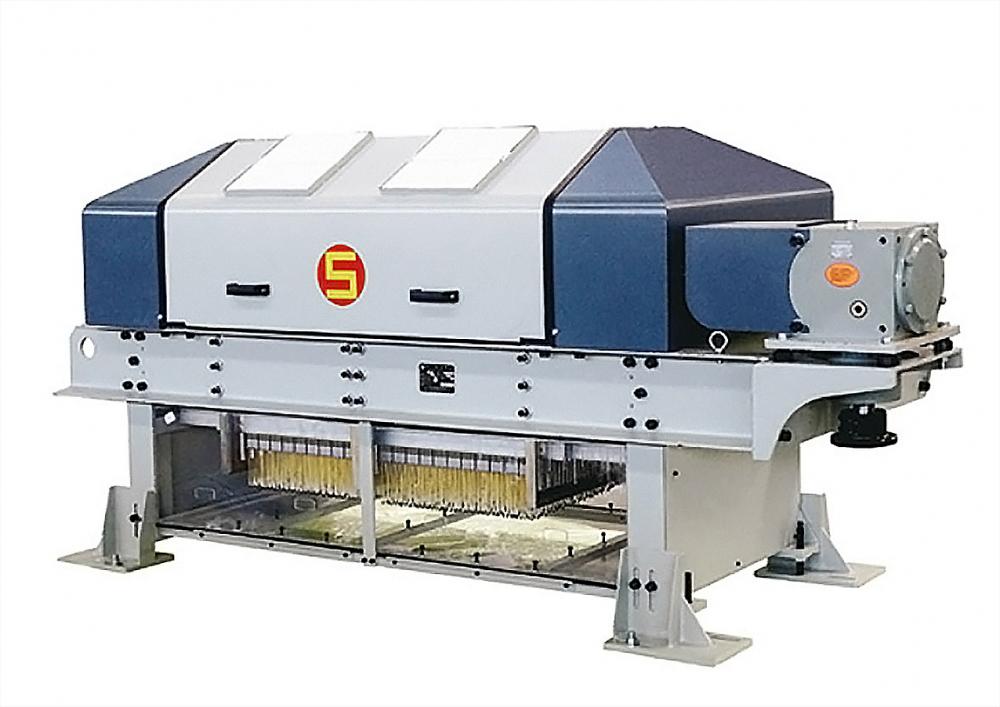

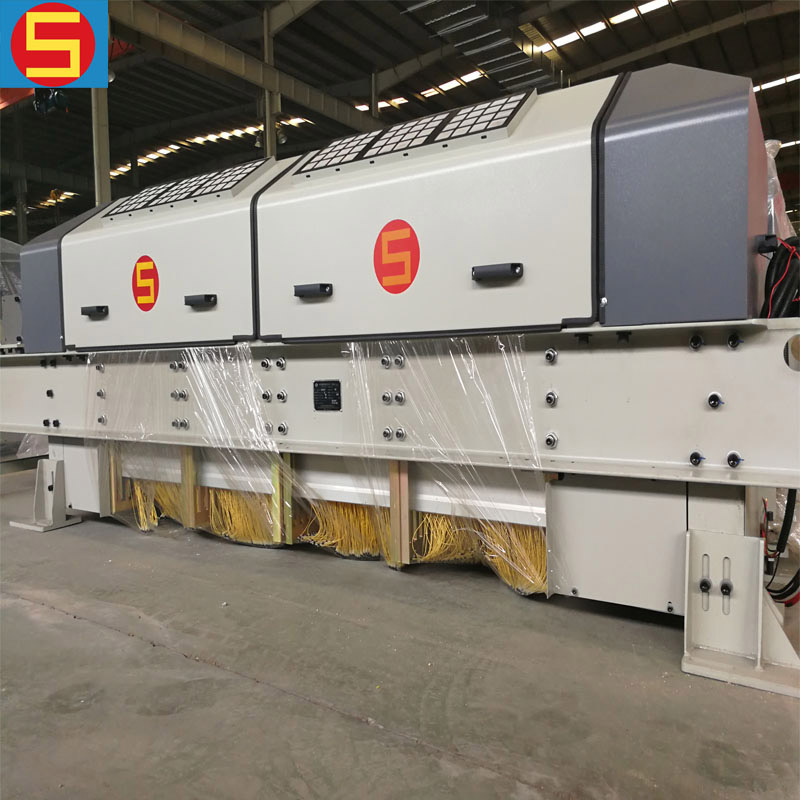

SLX 2688 cam type electronic jacquard machine is easy to install and suitable for all kind of weaving machines such as rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom. This model of cam type electronic jacquard loom is mainly composed of the gear institutions, pick-up needle institutions of components and computer control system. This digital jacquard textile weaving machine has extremely simple structure and provides stable performance. This model has low malfunction and easy to maintain module. The open model adopts after plug-fuse types. The computerized jacquard loom has a power that can achieve speed up-to 750 RPM.
SLX 2688 cam type electronic jacquard machines are in strict material selection and production process perfect balance of moving parts, conjugate cam oil bath lubrication, all bearings permanent lubrication to ensure wear resistance, long service time, maintenance work will be reduced to the minimum, coaxial system driven by conjugate cam. Further strengthened drives and sturdy base of this electronic jacquard weaving looms make the machine to withstand higher loads.
Applicable to：
Rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom with any reed width.
Weaving Products:
Label, tie, upholstery fabric, curtain fabric, shading fabric, sofa cloth, bedding cloth, towel, carpet, velvet, garment fabric, sari fabric, silk fabric, lining fabric etc.
Hooks:2688
Shed Opening: 55-120mm
Max Speed: 750 rpm
Advantageous Features：
1. Sealed fuselage, optimized filtration and ventilation system of our cam type digital jacquard machines can effectively prevent flying flowers into the system.
2. The optimized shuttle opening keeps good effect. The opening curve can be designed according to the need to ensure the best weft insertion, reduce the tension on warp yarn and breaks
3. The self-locking characteristic of the conjugate CAM can reduce the interference to the braking performance of the loom
4. The concentrated lubrication oil hole and grease hole are easy to reach and check.
5.The small pull rod composite bearing with special filling hole, to ensure the longer service time.
