Smoked Sausage Line

4 year ago
74 0
Product details

To Understand Barrel Sausage Cutter

Line 1

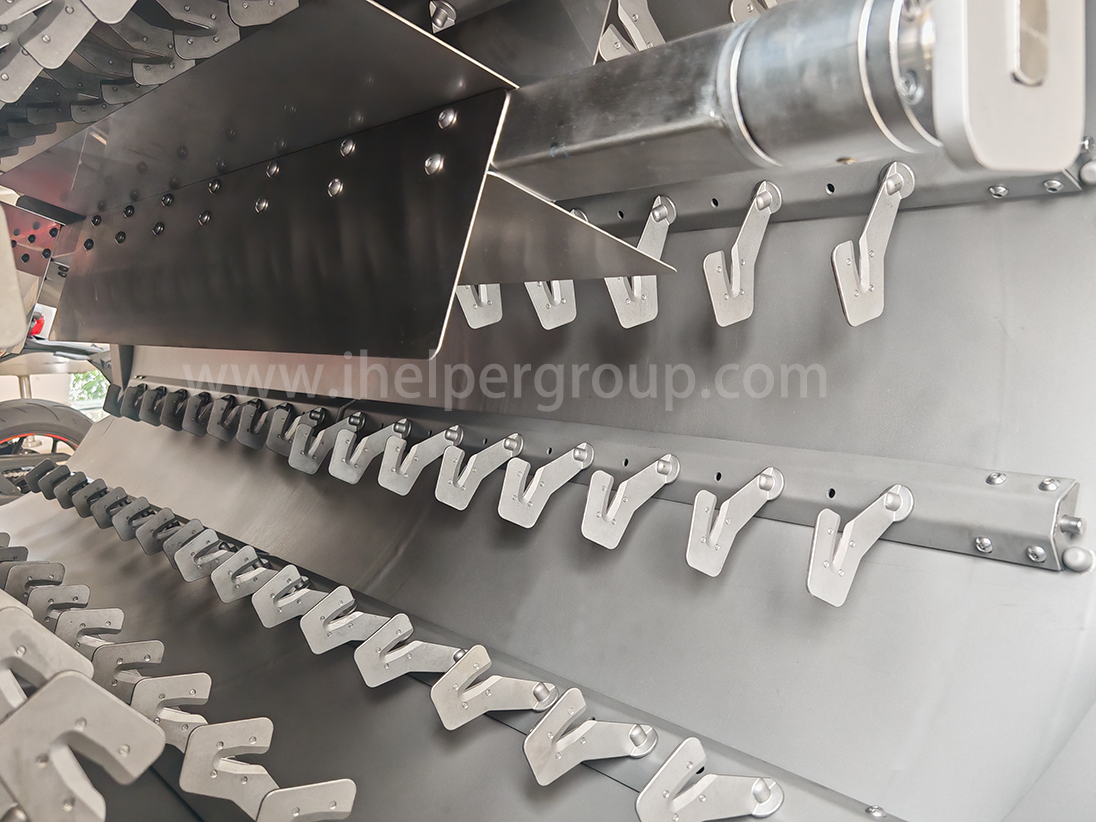

A barrel sausage cutter, or we call it roller sausage cutter spearator, is a barrel structure cutting device. The function is to cut the linked sausage to pieces. There are many tiny knives inside the barrel, when there are sausage being put into the barrel, the knives will cut the knots directly during the rolling movement of sausage. As the knives are very small, so they are impossible to touch the surface of real sausage, so don't worry that the barrel sausage cutter may destory your sausage.

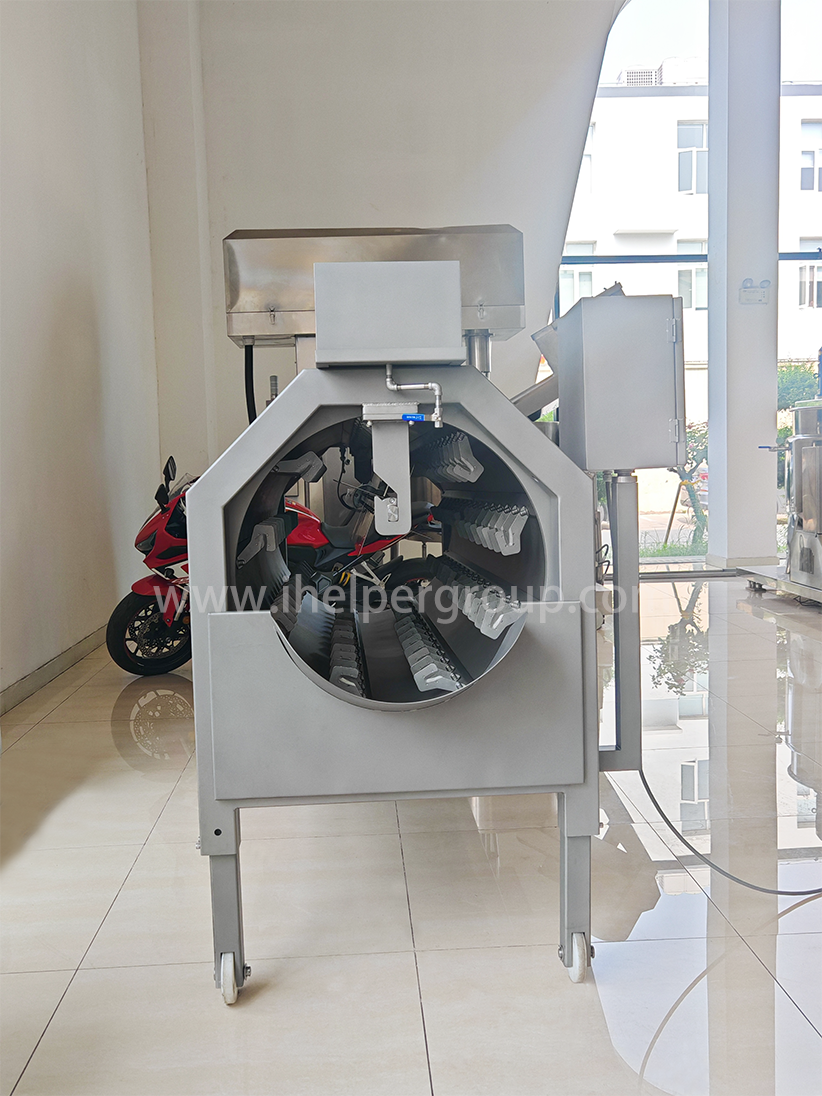

The GQC-3000 roller sausage cutter is consist of roller, auger, knives, frame, reducer, electrical cabinet, etc.. Neat appearance, easy operating, low noise, low energy consumption, high efficiency are the characters of this machine. Separating sausage in a complete new solution that help end users to expand production capacity greatly. Special scalpel steel blades and the tender cutting structure are very important for this machine. Thanks to the good industrial base of China, this machine have the feature of excellent performance, and very good price advantage that make it worth buying.


Features and characters

Line 1

--- It is applicable to products such as collagen casing, natural casing,ect.
--- It can be adjusted by the products diameter.
--- Suit to sausage with length ≤ 180 mm and diameter ≤ Ф35.
--- Easy to operate, the roller speed, auger speed and height of frame can be adjusted freely.
--- Safe with good mobility performance.
--- Work stably, low noise, and low energy consumption.

MAIN TECHNICAL PARAMETERS

Line 1

Roller speed :1-9 r/min. Auger speed: 1-9 r/min.
Outer dimension: L*W*H=3170x950x1670 mm
Roller motor: 0.75 kw
Auger motor: 0.25 kw
Voltage: 380V
Production: 1000 kg/h
Minimum length of sausage: 10 mm
Maximum length of sausage: 200 mm
Diameter of sausage: Ф10~Ф35

Revolutions per minute of roller from feeding to discharging: 45-55 circles
