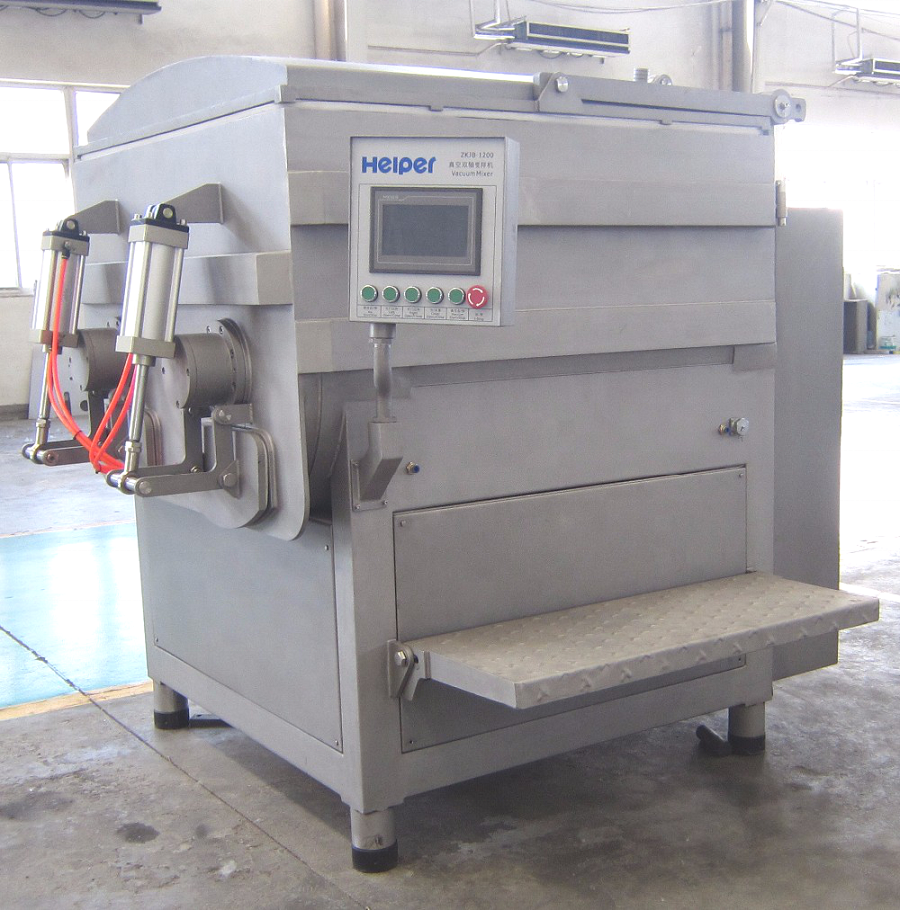

Brief Introduction Of Meat Vacuum Mixer

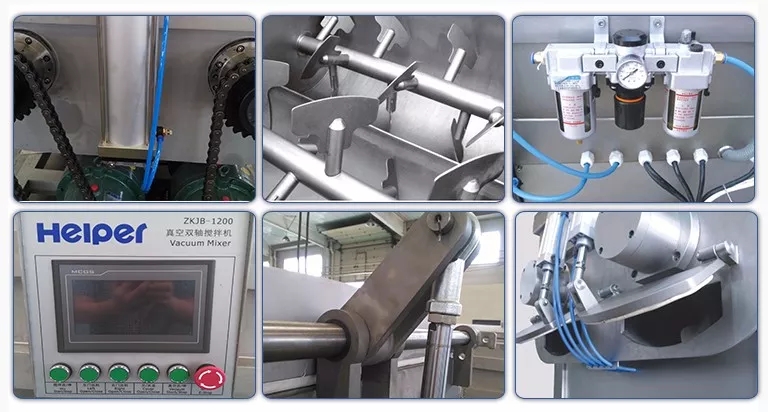

The mixing box and external of the machine are made of stainless steel, endurable with water spray pumping, convenient and sanitary
The open and close of covers of the stuffing box and offload door are all operated by pneumatic power, all actions are easily realized only by turning the button Reasonable design, the stuffing can do circular motion at the same time of mix processing, results to the well-portioned of various materials.
Pin gear cycloid motor reducer adopted, chain driving, make sure the steady running and lower noise
Functions & Feathers Of Meat Vacuum Mixer
--- Vacuum or Non-vacuum options.
--- The cycloidal gear of this machine makes transmission stable reliable, and low noise.
--- Single and double shaft structure are available for different capacities.
--- The backward lid opening structure makes it safe and reliable.
--- Switch knobs to control of positive and inversive rotation.
--- Cooling system, weighing system, self-cleaning function, auto water feeding device are customized for special requirements.
--- Stainless steel structure and excellent surface treatment make machine body easy cleaning.
Technical Data Of Meat Mixer Machine
| Model | Volume （L） | Capacity （kg/batch） | Mixing Speed （rpm） | Power （kw） | Weight （kg） | Dimension （mm） |
| ZKJB-2500 | 2500 | 1500-1800 | 20-40 rpm Frequency Adjustable | 25 | 3300 | 2340*2150*2230 |
|
ZKJB-2000 |
2000 | 1400-1600 | 10-40 rpm Frequency Adjustable | 18 | 3000 | 2270*1930*2150 |
| ZKJB-1200 | 1200 | 800-1000 |
84/ 42 |
17.2 | 1760 | 2160*1500*2000 |
|
ZKJB-1200 Cooling |
1200 |
800-1000 |
84 /42 | 19 | 1860 | 1835*1500*1835 |
| JB-1200 No Vacuum | 1200 | 800-1200 | 84/42 | 15 | 1100 | 2160*1460*2000 |
|
ZKJB-650 |
650 | 450-500 | 84/42 | 10.1 | 1300 | 1553*1300*1568 |
| ZKJB-650 Cooling | 650 |
450-500 |
84/42 | 10.1 | 1500 | 1585*1338*1750 |
| JB-650 No Vacuum | 650 | 450-500 | 84/42 | 9 | 700 | 1760*1130*1500 |
|
JB-400 |
400 |
250-300 |
100/50 |
4.4/4.6 |
450 |
1400*900*1500 |
|
ZKJB-300 |
300 | 200-250 |
84/42 |
5.9 | 600 | 1190*1010-1447 |
|
ZKJB-150 |
150 | 100-120 | 80/40 | 3.5 | 430 | 1360*680*1200 |
| JB-150 No Vacuum | 150 | 100-120 | 80/40 | 2.4 | 350 | 1360*680*1200 |
|
ZKJB-60 |
60 | 40 | 75/37.5 | 1.5 | 260 | 1060*600*1220 |
| JB-60 | 60 | 40 | 75/37.5 | 0.75 | 180 | 1060*500*1220 |
