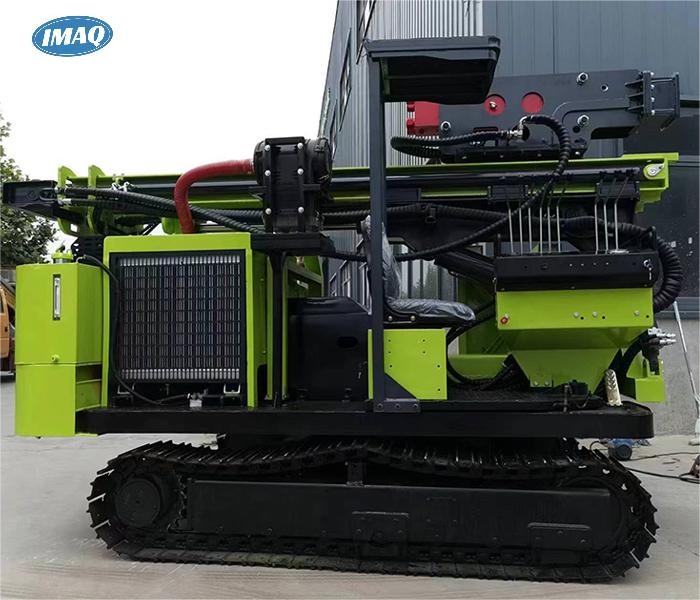

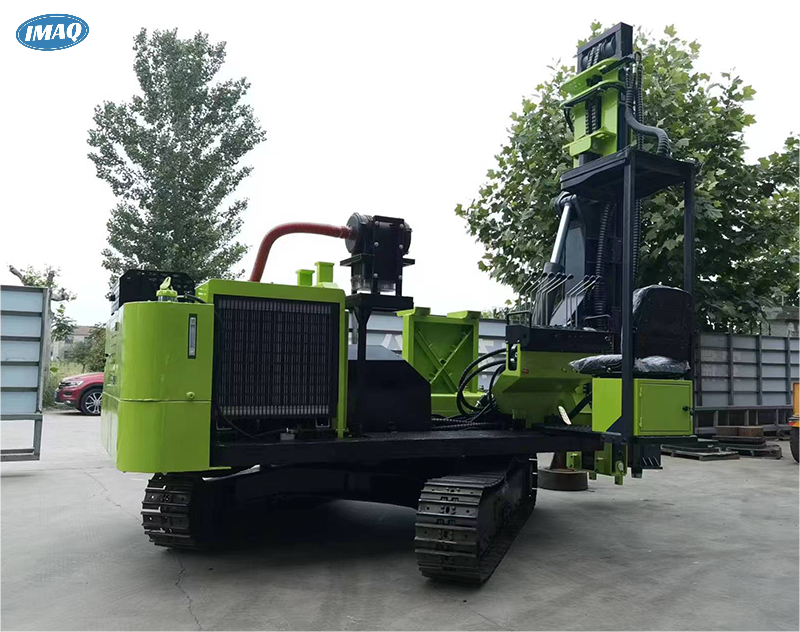

IM390 solar pile driver
The IM390 Solar pile driver is a highly efficient pile driver designed for photovoltaic installation projects. Here are some of its features and basic parameters:
Features:
Efficient performance: IM390 uses advanced power system and hydraulic transmission technology to quickly and accurately complete pile driving tasks, significantly improving work efficiency.
Stable and reliable: reasonable structural design and high-quality materials ensure the stability and reliability of the equipment in a variety of harsh environments and reduce the failure rate.
Easy to operate: user-friendly design, easy to understand, even for first time use. At the same time, it is equipped with a perfect safety protection device to ensure the safety of the operator.
Strong applicability: Suitable for different types of photovoltaic piles, IM390 can adapt to a variety of complex terrain and climate conditions, providing great convenience for photovoltaic installation projects.
Environmental protection: The use of energy-saving design, reduce energy consumption, noise and exhaust emissions, in line with environmental requirements.
Welcome to our detailed information page, we specialize in construction machinery, such as photovoltaic pile drivers, guardrail pile drivers, mini excavators, mining equipment, energy equipment, etc. We also offer a wide range of used equipment to meet all your construction machinery needs.
parameter:
| Hydraulic Solar Pile Driver IM390 Technical parameter | ||
| Item | Value | Unite |
| Work dimension (L*W*H) | 4295（4695）*2210*5330 | mm |
| Transport dimension (L*W*H) | 4632*2210*2591 | mm |
| Vehicle weight | 5300 | KG |
| Diesel engine power | 91 | KW |
| Walking motor torque | 7700 | Nm |
| tary motor torque(grond screw piling) | 13000 | Nm |
| Rotary motor torque(auger dr il) | 13000 | Nm |
| Post length(Max) | 4200 | mm |
| Grond screw length(Max) | 4200 | mm |
| Driling depth | 0-6000 | mm |
| Grond screw piling depth | 0-6000 | mm |
| Driling diameter (auger driling) | 50-500 | mm |
| Driling angle(left/right) | -20 | ° |
| Driling angle(forwards/backwards) | 0-110 | ° |
| Hydraulic system pressure | 20 | Mpa |
| Total hydraulic system flow | 115 | L/min |
| Rotary motor flow | 160 | L/min |
| Walking speed | 0-3.5 | Km/h |
| Chassis spec(L*W*H) | 2300*1900*570 | mm |
| Width of steel chassis Track | 300 | mm |
| Track height above the ground | 230 | mm |
| Grade ability | <30 | ° |
| Track tum rate | 01:21.4 | |
| Tracking working pressure difference | 13 | Mpa |
| Double pump + double valve valve | 63+32 | |
| Involving models | IM390 | |
If you are interested in the product, contact 2bvideo.com for more information for more information
