H-TC1520ARS

4 year ago

99 0

KC Printing Machine (Group) Limited

 9 year year

Product details

Introduction

For products with a relatively fixed shape, it is almost an inevitable trend to use a fully automatic hot stamping machine. For example, paper, film, leather, etc. can be cut into fixed-size products. This fully automatic hot stamping machine uses a stacker to feed materials. The materials that need to be stamped will be neatly stacked on the stacker, and will be fed one by one by the feeding manipulator. The product is sent to the hot stamping position. The hot stamping device is generally composed of a servo-controlled plane hot stamping machine, which can be adjusted accurately from left to right, front to back, and up and down. After the bronzing is completed, the unloading manipulator will suck and transfer the product to the unloading workbench. The whole process is mechanized to avoid human intervention. Not only is the speed fast, but the safety is also greatly improved.
At present, such automatic hot stamping machines are widely used in hot stamping processing of gift boxes, jewelry boxes, paper packaging, shoe materials and other products.

Full automatically A4 paper hot stamping machine //

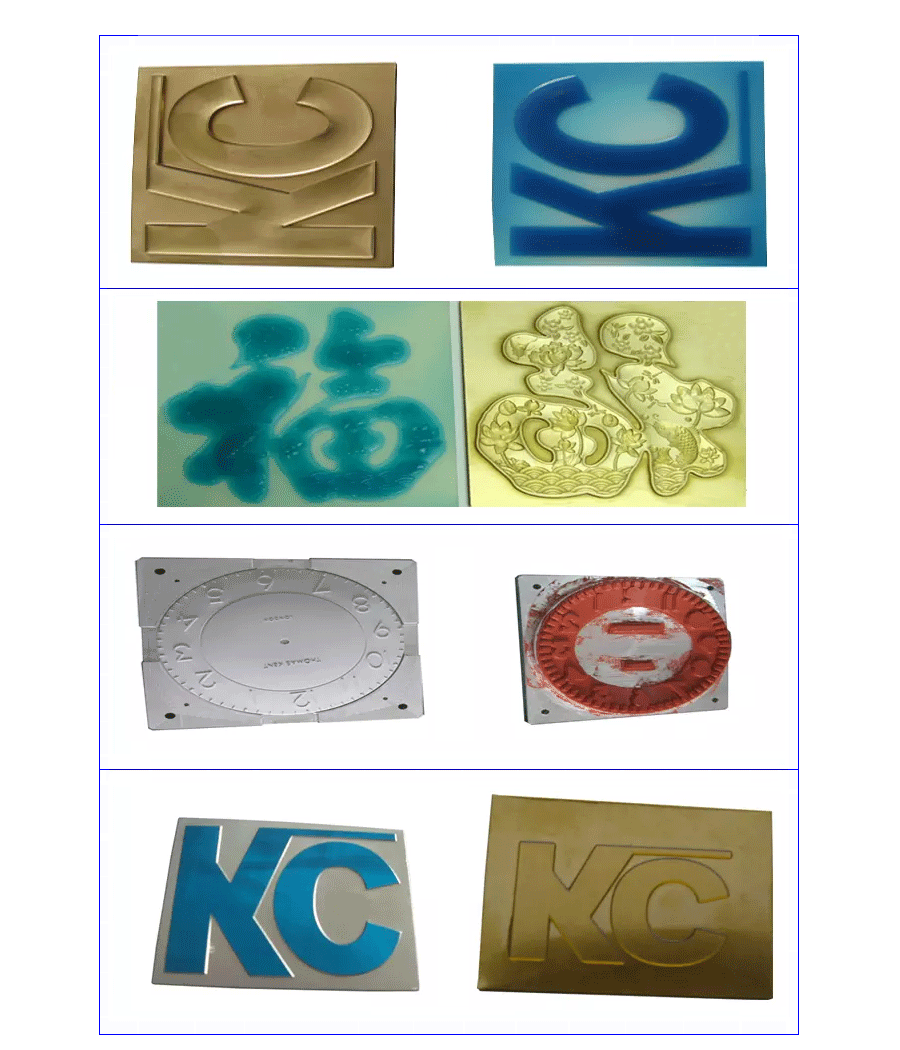

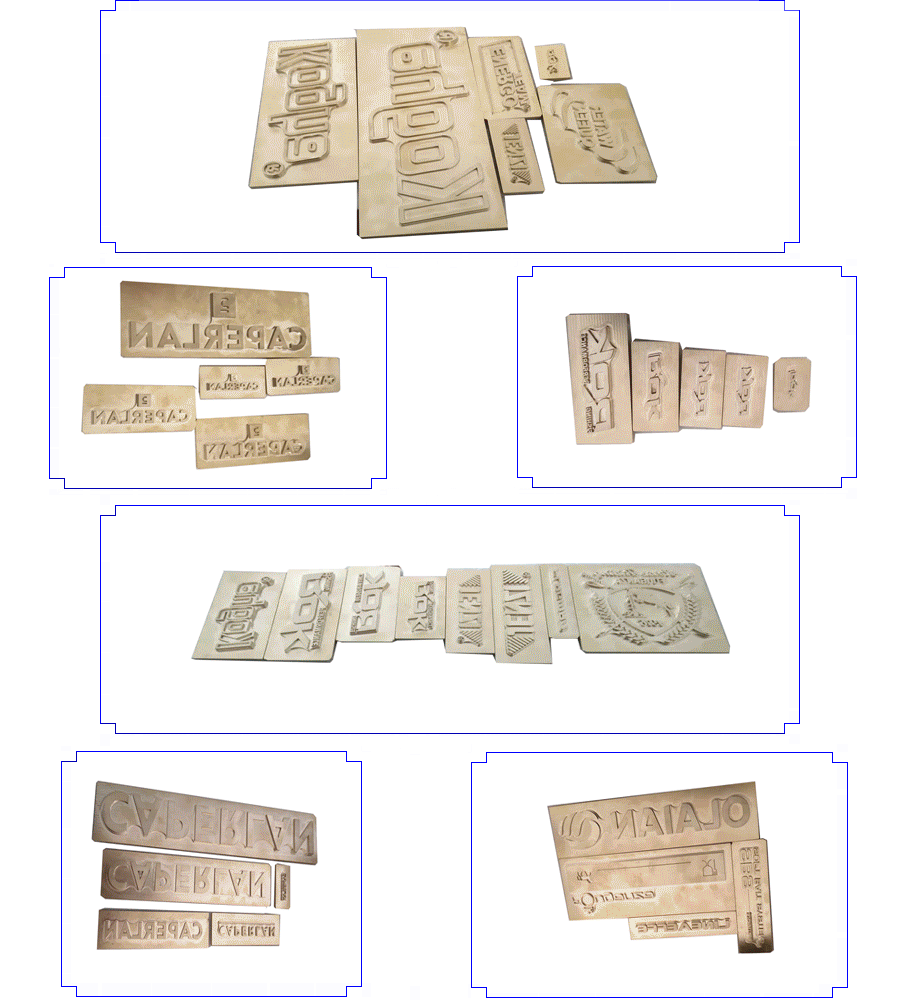

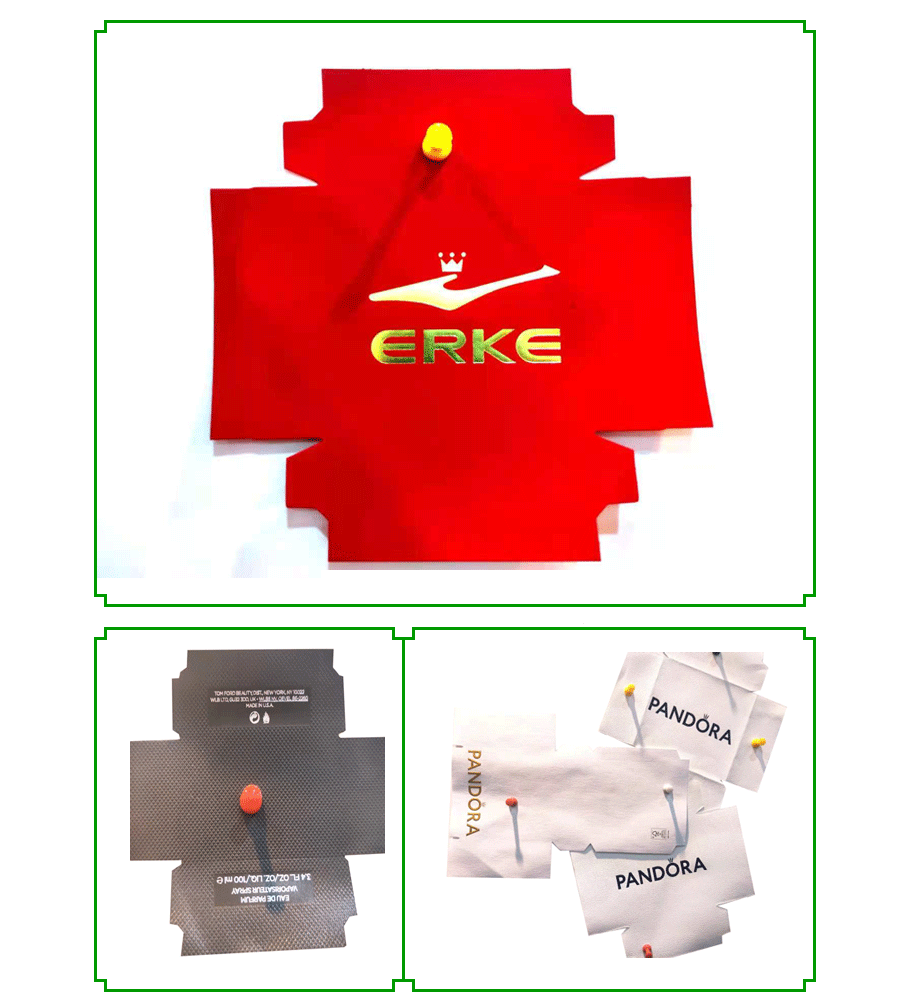

Usage and printed samples

153

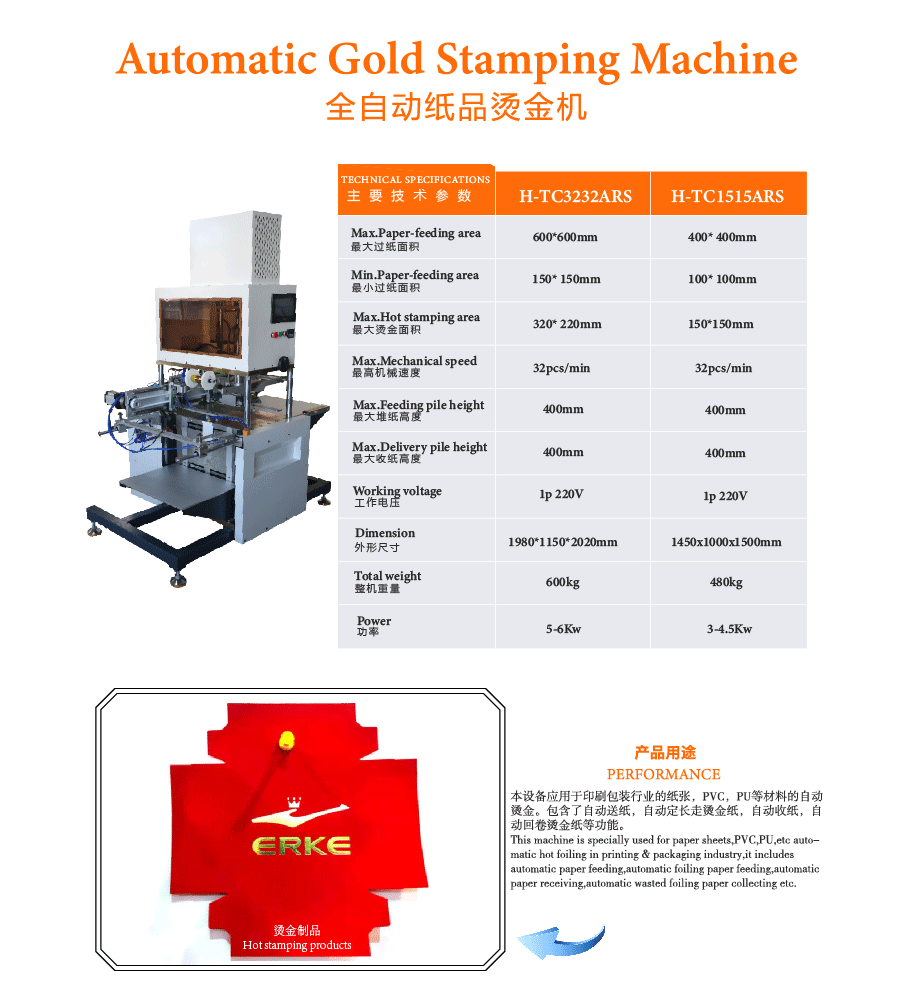

Technical data

Full automatically paper hot stamping Machine //Structure
Feeding	Paper feeding robot
Press	Servo vertical press
Temperature control	IR Heater, automatically controlling
Foil collecting	Automatically collecting
Downloading	Automatically Robot
Full automatically paper hot stamping machine //Usage and characters
Guide	Hot stamping of plain paper below 600*600mm size; Hot stamping for harder sheets; If the surface of the sheet and paper is printed with graphics, the accuracy of bronzing should not be too high; It is a fully automatic hot stamping machine with automatic stacking paper conveying. It is suitable for large-volume uniform shape documents, greeting cards, books, and document pockets. The structure is designed with a compact central structure; the paper is automatically transported from the stacker and positioned into the hot stamping station; The stable opening and closing movement is controlled by the servo motor , the hot stamping pressure is uniform, and the hot stamping quality is good.
	Stamping temperature Rnange:20∼300℃; stamping size : 320320mm Table size:800800mm Max stamping Speed:1500-2000pcs/h Outer dimension: 1800×1400×1800mm; Net weight(kg) : 1050; Motor wattage: 750W; Power supply: 1P220V; Heater wattage: 3500W IR. Max pressure :3 tons Stamping accurate: 0.1-0.25mm
Works supply	1 P 220v Power supply；
Package list	Package size: 1850×1450×1880mm; Gross weight:1080kg CBM: 6.329
H.S.Code	8443198000
Certificate	CE

Details

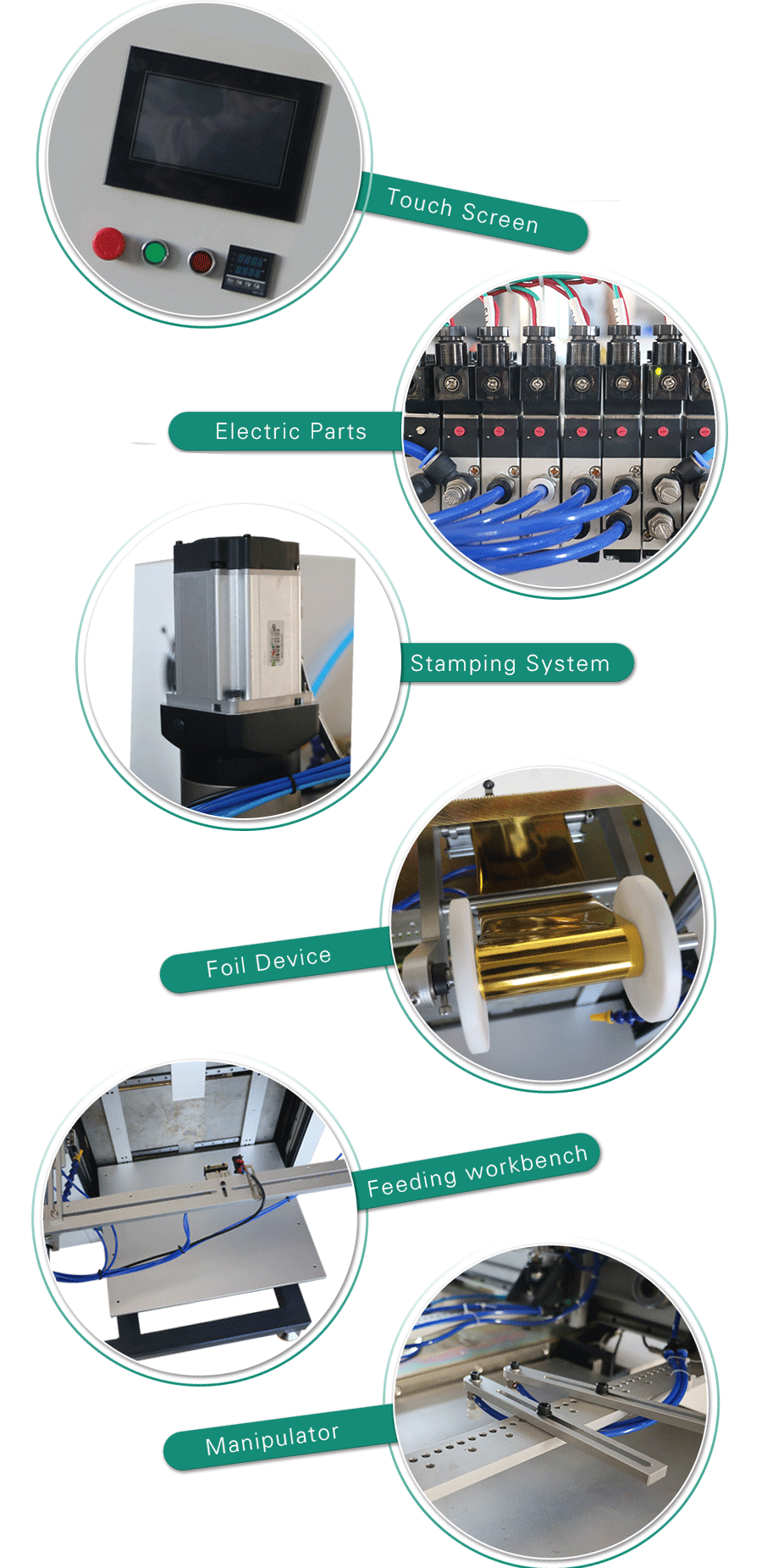

PLC	XIN JIE
Touch Panel	XIN JIE
Servo Motor	XIN JIE
Solenoid Valve	Airtac/SMC
Air Cylinder	Xing Chen
Stepping Motor	LEI SAI
Sensor	Omron
Silencer	SMC
Relay	Omron
Circuit Interrupter	Chint
Switching power supply	Mingwei

Structure

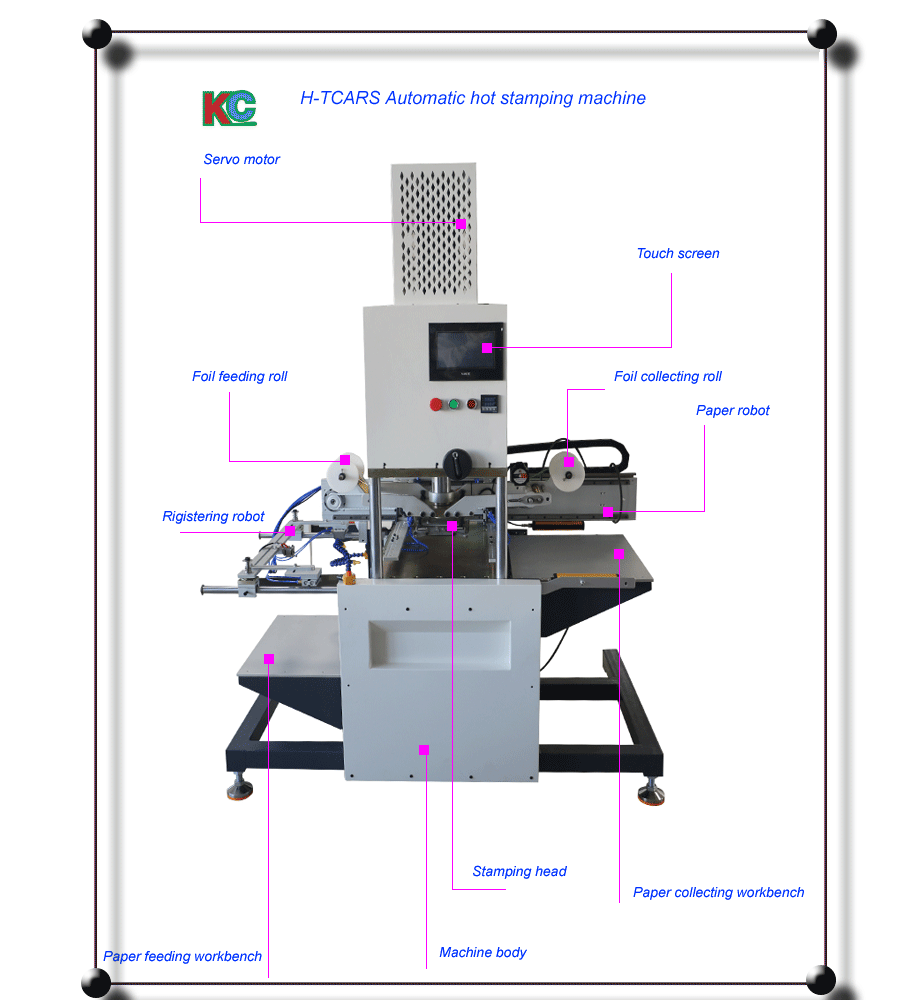

Automatic hot stamping of paper, PVC, PU and other materials used in the printing and packaging industry. It includes automatic paper feeding, automatic length walking hot stamping paper, automatic paper collection, automatic rewinding of hot stamping paper and other functions.
Automatic paper feeding and automatic paper collection are controlled by servo motors, the paper is accurate, and the error can be controlled within 0.1mm. Both the paper feed table and the paper collection table can be automatically adjusted according to the height of the paper, ensuring the precise positioning of the paper collection and paper feeding.
The automatic bronzing spindle is controlled by a 1500W servo motor with brakes + planetary reducer, which can easily achieve a pressure adjustment range of 0-1.5 tons.
The bronzing temperature control system uses high-precision temperature control switches, thermocouples, and 400W heating plates, and the temperature difference range can be controlled within 2-3 °C, which is extremely effective for temperature-sensitive aluminum hot stamping film.
The automatic paper walking of aluminum galvanized aluminum and bronzing paper is controlled by stepper motor + high-precision pulley, and the fixed length of hot stamping paper is within 0.2mm.
The whole machine is programmable logic controller + touch screen man-machine interface + high-precision servo motor + cylinder control operation, reasonable design, high precision, small appearance and space-saving, especially suitable for jewelry box packaging, wallet watch box packaging, small leather shell, red packet bag, display box PVC and other products surface gilding.
