CZ Purlin Roll Forming Machine (C & Z Purlin Line)
C/Z purlin interchangeable Roll Forming Machine adopting integrated adjustment with unique design can provide quick, infinite size change and C rapid shape roller to Z shape roller change, which simplifies the process of the CZ Purlin Roll Forming Machine (CZ Purlin Line)
Detailed images of C80-300 Z120-300 Purlin Making Machine
Machine parts

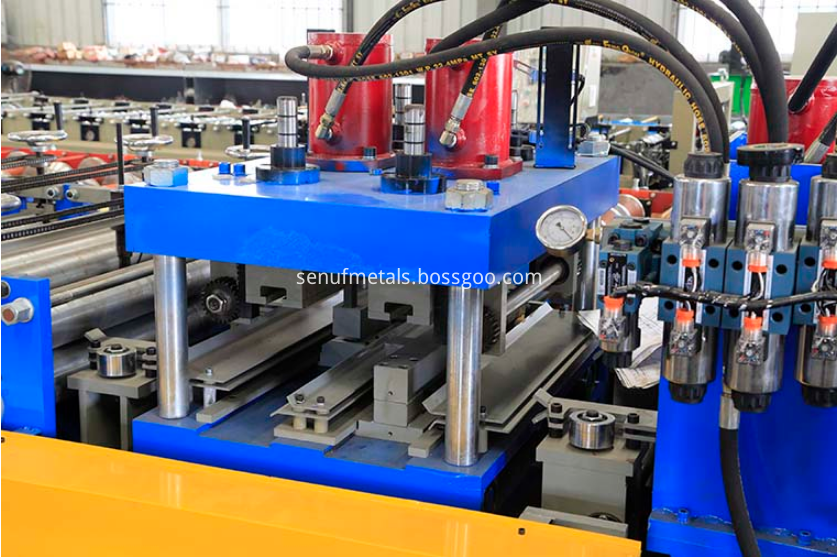

(1) CZ purlin machine punching system
Brand: SUF Original: China
with 3 cylinder (one cyinder for single hole and 2 cylinders for dual holes)

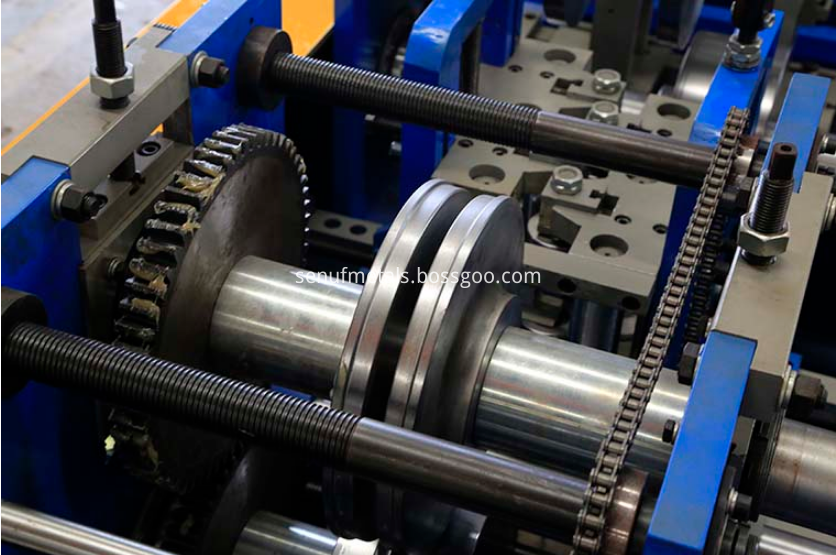

(2) CZ purlin machine rollers
Rollers manufacured from high quality bearing steel Gcr15, CNC lathes, Heat Treatments,
With black treatment or and-Chrome Coating for options:
With feeding material guide, body frame made from 450# H type steel by welding

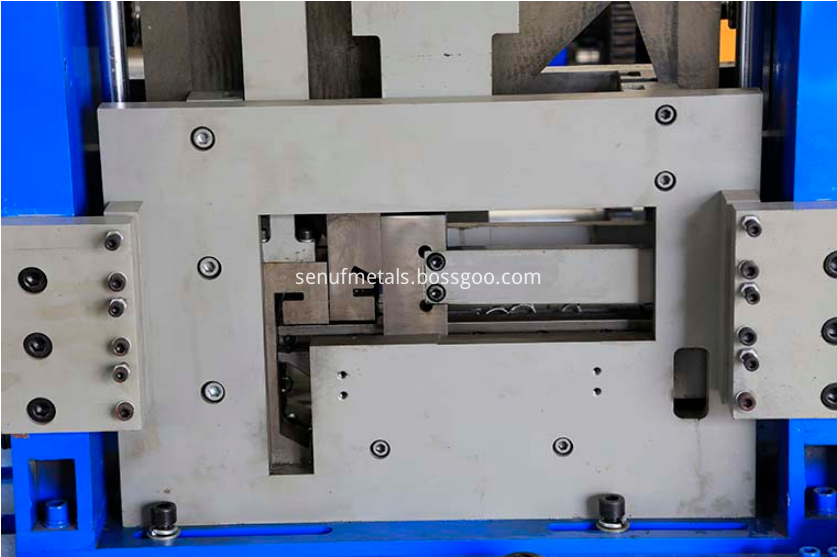

(3) CZ purlin machine post cutter
Patened universal post-cutter, no need to change cutter for different size,
Made by high quality mold steel Cr12Mov with heat treatment,
Cutter frame from high quality 30mm steel plate by welding,
Pre-punching & Pre-cutting, stop to punch, stop to cut,
Hdraulic motor: 7.5kw, hydraulic pressure range: 0-16Mpa,
(4) CZ purlin machine decoiler

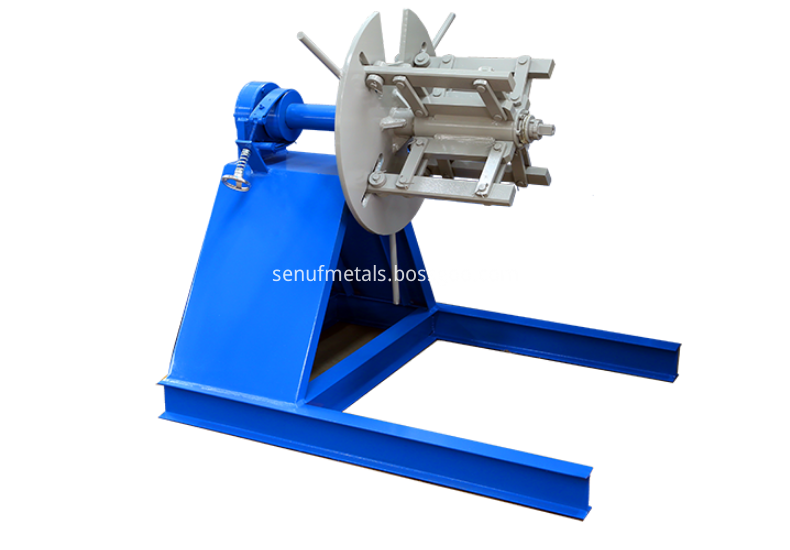

Manual decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max feeding width: 500mm, coil ID range 470mm±30mm,
Capacity: Max 4 tons

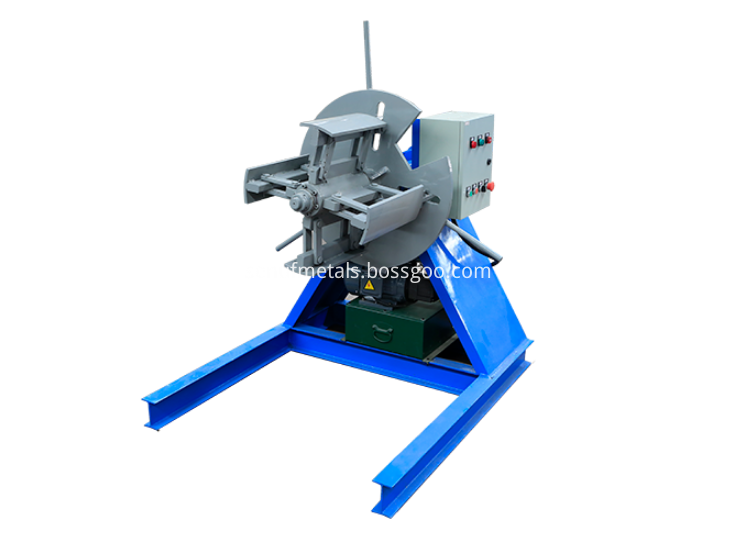

With 5 tons hydraulic decoiler for optional:

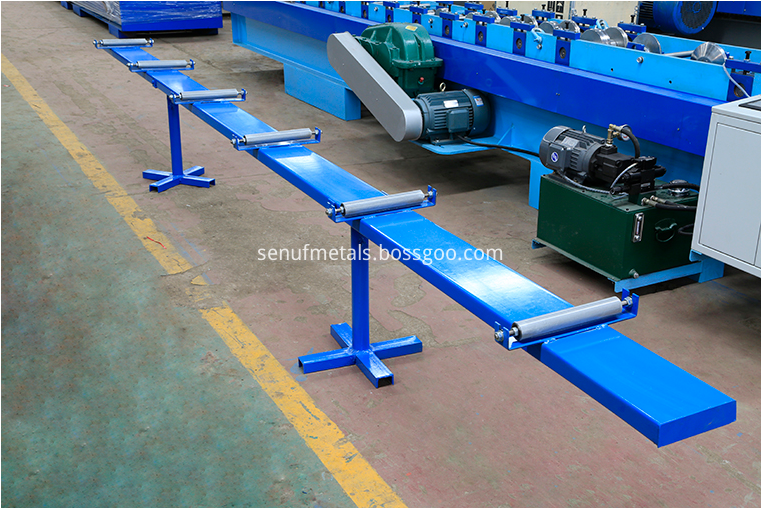

(5) CZ purlin machine exit rack
Un-powered, two sets
