Product details

Description:

Intelligent Slotting Machine is the core of the automatic production line. It integrates a variety of spare parts to ensure fast and secure packaging of products. Customers can choose the Inline Pre Feeder, which can accurately feed products into the machine without human intervention, greatly improving production efficiency.

Features:

No limited on box height, No limited on Sheet Length.
There is no need for a skilled operator, and a novice can take up his post.
Servo motor, accurate movement.
Independent trimming, single piece, double pieces are automatic adjustment, no need remove & reinstall slotting knives.
Pre-creasing, creasing are automatically lift, quick set up of 3ply & 5ply corrugated board.
No need to adjustable positioning baffle.
The host can adjust the next order without stop the machine.
600 order memory, easy repeat order.
Digital control, touch screen or QR code scan order data, machine will automatically finish setting and prepare next order.

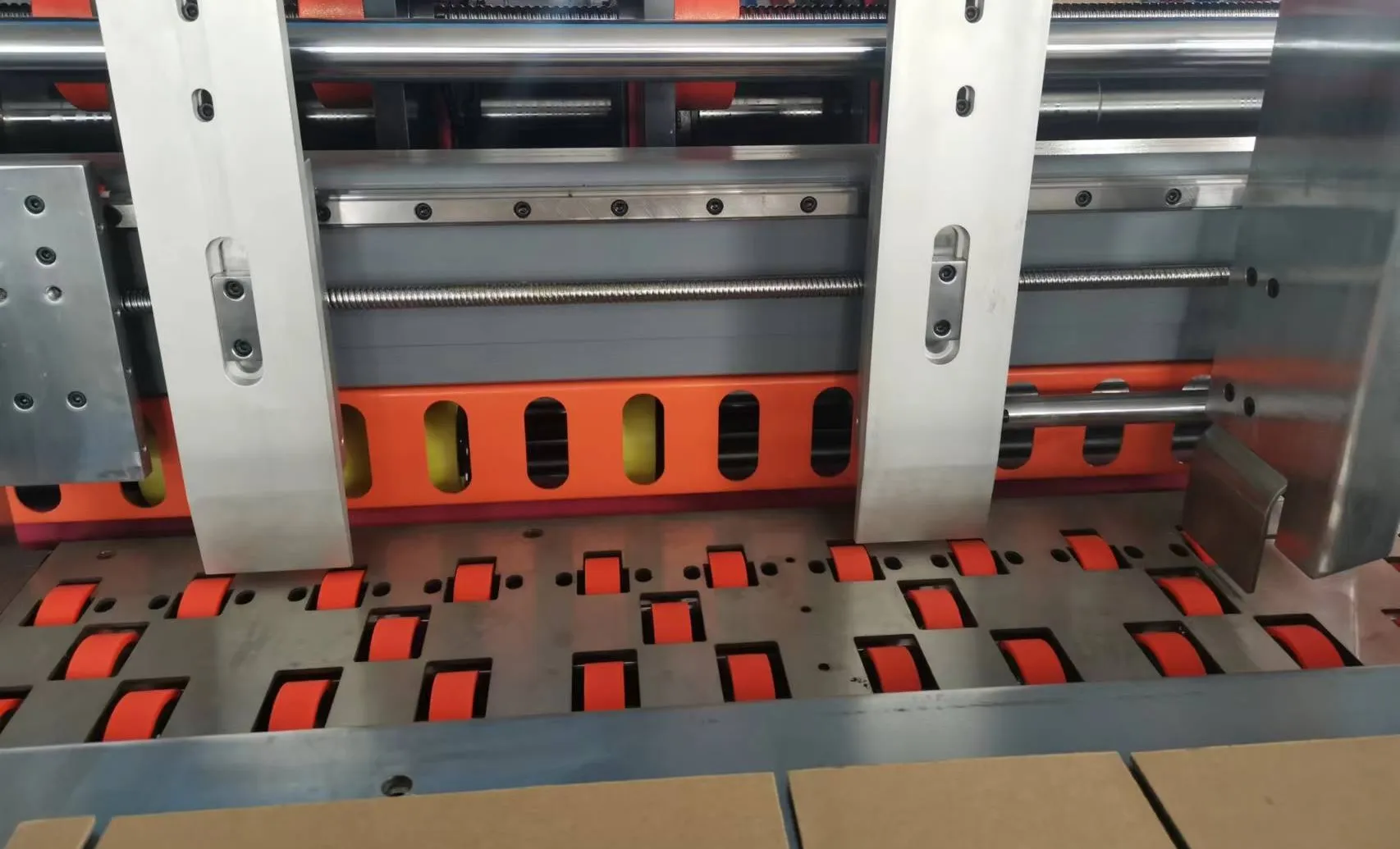

Lead Edge Feeding System, Servo Drive, Intelligent Operation:

Item	Specification
Model	1628
Working speed	120m/min
Minimum feed length	280mm
Minimum width (1st and 2nd knife)	210mm
Minimum width (2nd and 3rd knife)	60mm
Slotting & creasing positioning accuracy	±1mm
Knife specification	200mm + 100mm + 100mm
Suitable board thickness	2-12mm
Main motor power	5.5kw
Total power	25kw
Total weight	6110kg
Machine overall size	(length * width * height) 3000 * 4300 * 1800mm
Touch screen	Touch screen operation, simple interface, easy to operate.
Creasing performance	Tip to flat, up and down creasing symchronous
Double screw rod	Adopts ball screw rod design, which is characterized by precision, stability, high speed, etc
Servo drive motor (feeder)	Innovance servo motor 1.8kw, *3
Servo drive motor (side baffle)	Schneider servo motor 400w, *2
Vacuum suction fan	Popular 7.5kw
Cutter seat servo drive motor	Schneider servo motor 750w, *4
Box height, Phase servo drive motor	Schneider servo motor 750w, *1
Trimming servo drive motor	Schneider servo motor 400w, *1
Main drive frequency converter	Suqu
Low voltage electrical apparatus	Schneider series
Servo motor. Servo drive	Schneider
PLC controller	Schneider
Touch screen	Weinview
Bearing	NSK, Harbin, C&U
