Product details
Description
The intelligent folder gluer stitcher machine is one of the post-processing equipment for cartons, which is used for various the sealing of corrugated boxes has fast forming speed and standard nail distance, which replaces the traditional manual stitcher & gluer, which is high labor intensity and low efficiency. Most of the automatic gluing and stitching boxes machine use belts to convey cartons, and uses the wheel-type concave-convex creasing line and other methods to complete the origami processes; this method for the relative hard corrugated board and light creasing corrugated board, there will result fishtail and uneven seams in the carton.

Aiming at the defects in this aspect, our company has developed and produced the FM auto folder gluer stitcher machine. The motion system is precisely controlled by numerical control, the digital transmission signal, and the automation of the press creasing line forming method. Intelligent equipment with digital, easy operation input, one-button precise control mode. Fast order changes can be completed in 30-50seconds. Automatic feeding, forming and folding, front & back pushed to square, box stitching, box turn over, and count the output of the second beat.

The machine can be inline with flexo printing slitter and scorer, pre loader, and pp strapping, form a production line, saving a lot of labor costs.


Technical Data
Folder Gluer Stitcher Specification
Model&Specification 0924FM 1024FM 1224FM 1230FM 1430FM
Max.sheet length(A+B)*2(mm) 2400 2400 2400 2900 2900
Min.sheet length(A+B)*2(mm) 750 750 750 750 825
Max.A(mm) 750 750 750 900 1100
Min.A(mm) 230 230 230 230 240
Max.B(mm) 600 600 600 700 650
Min.B(mm) 145 145 145 145 185
Min.sheet width(C+D+C)(mm) 900 1000 1200 1200 1400
Min.sheet width(C+D+C)(mm) 300 300 300 300 300
Max.C(mm) 250 250 250 250 350
First stitching(mm) 40-300 40-300 40-300 40-300 38-350
Max.height(D)(mm) 600 650 800 800 1100
Min.height(D)(mm) 120 125 130 130 150
Max.tab(mm) 32-45 32-45 32-45 32-45 32-50
Corrugated board thickness(mm) 3-10 3-10 3-10 3-10 3-10
Stitching distance(mm) 45-110 45-110 45-110 45-110 45-110
Stitching quantity 2-15 2-15 2-15 2-20 2-30
Stitching head max.speed 1000 1000 1000 1000 1000
Stitching wire length(mm) 32/35 32/35 32/35 35 -


Main Function
Feeding Section

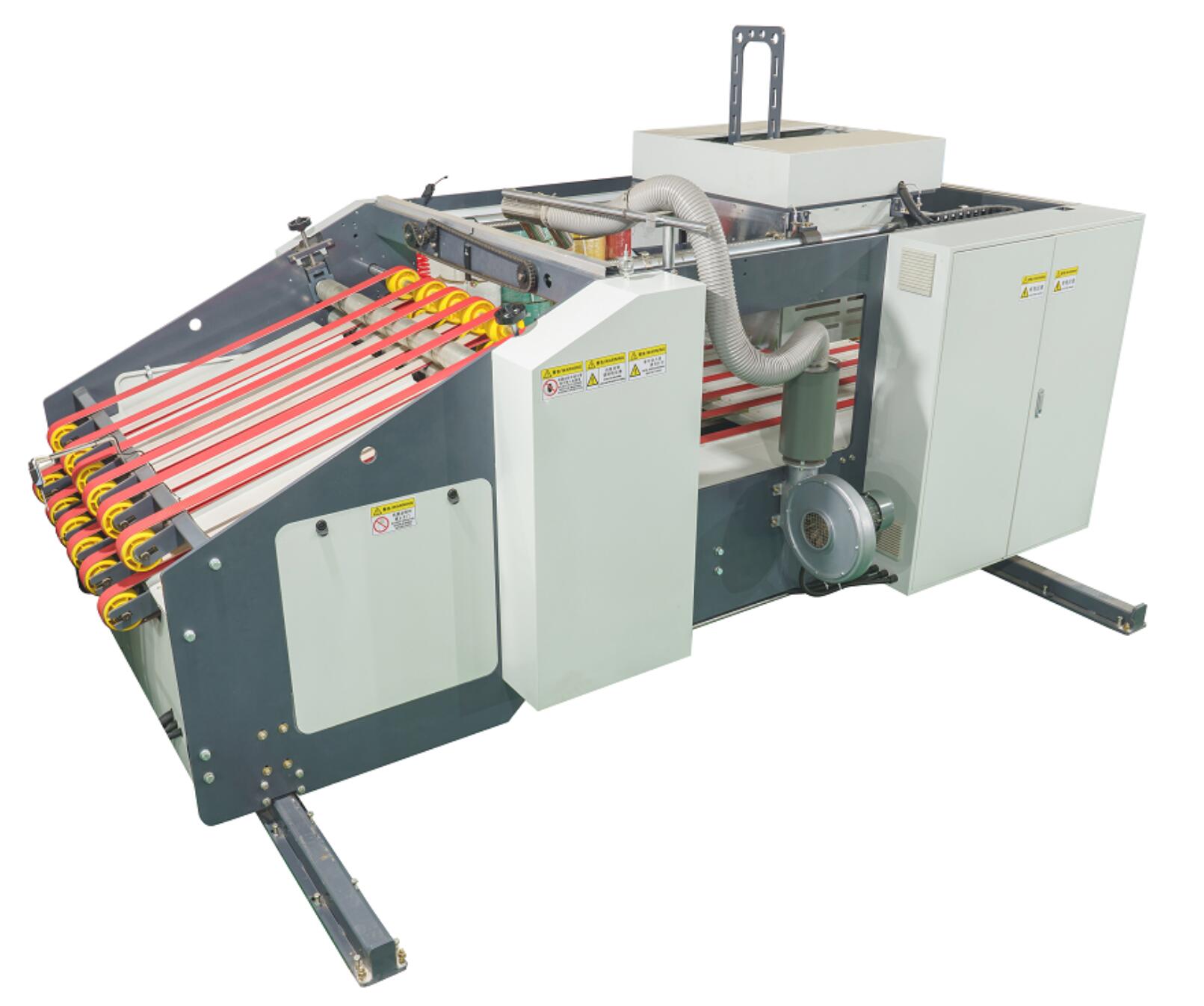

Suction Belt Feeder

Press Creasing Line System

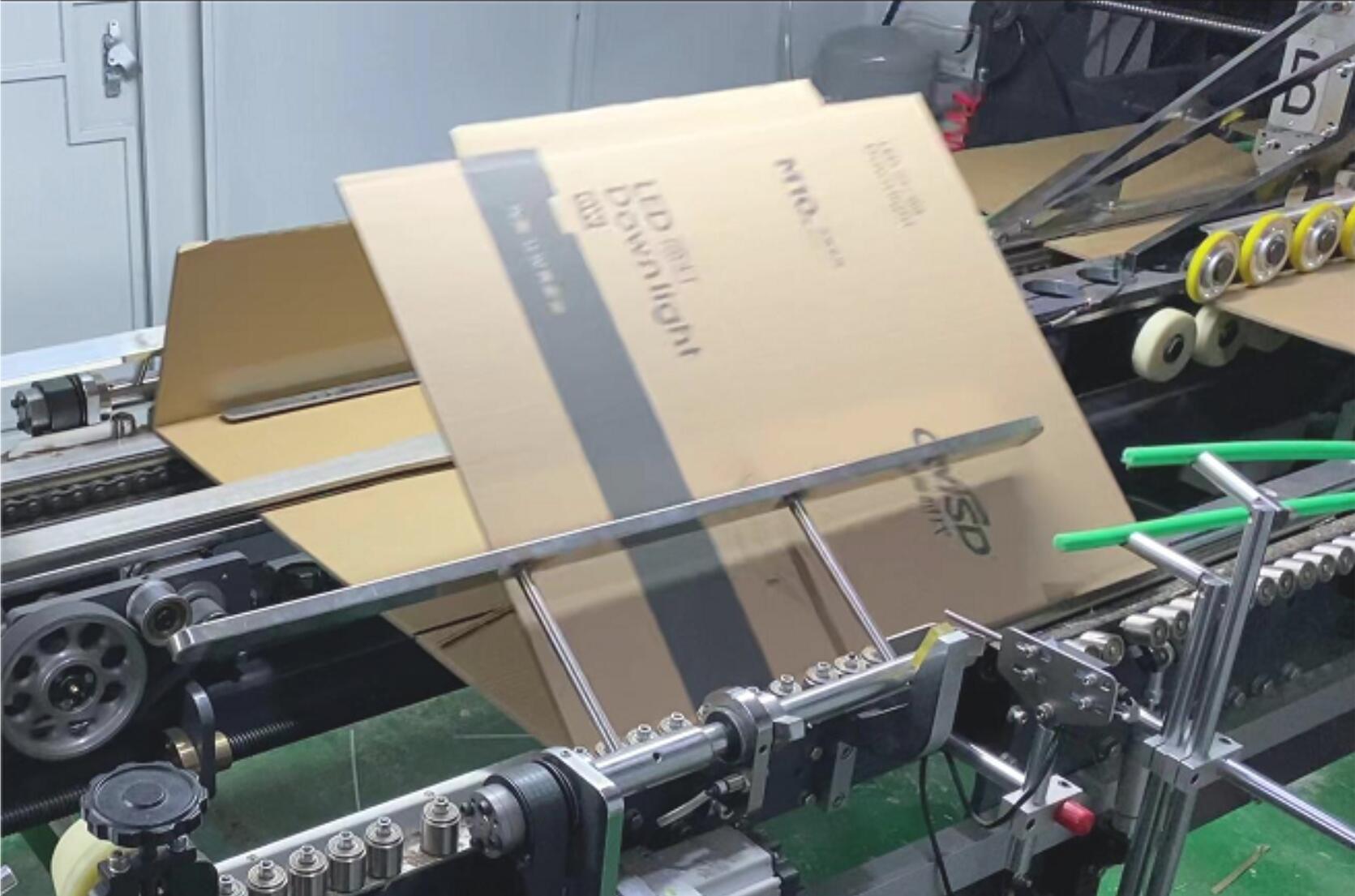

Press Creasing Line System

Gluing Section

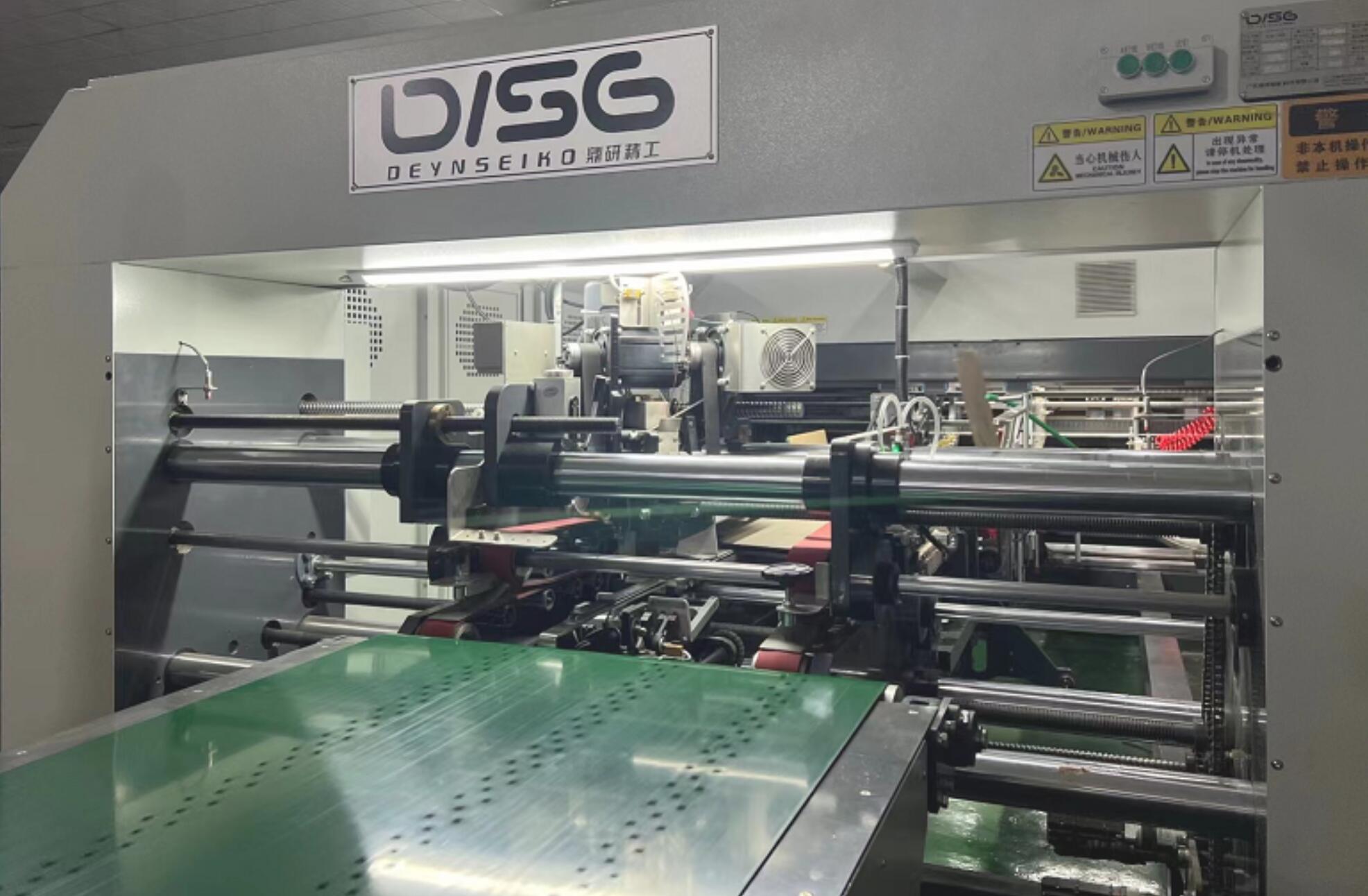

Glue System

Folding Section

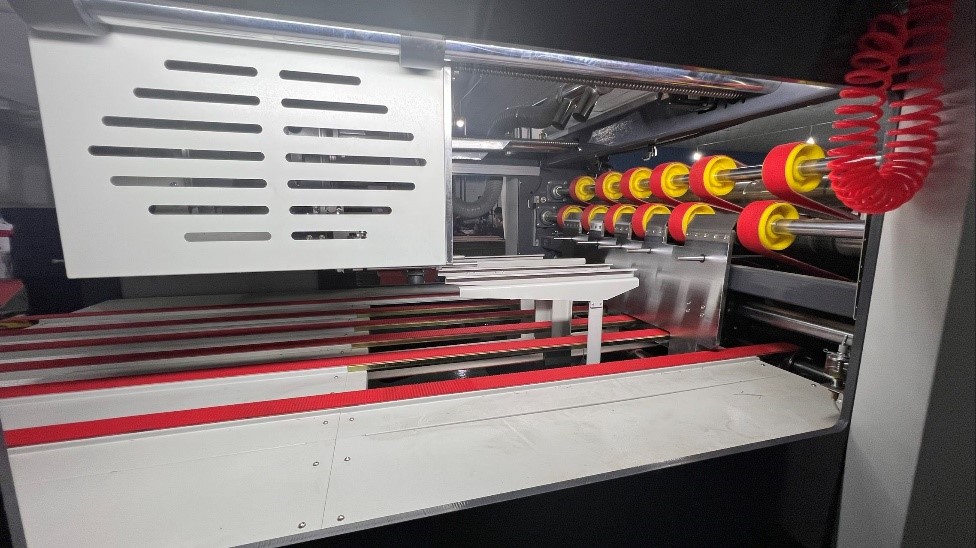

Folding Section

Stitching Section

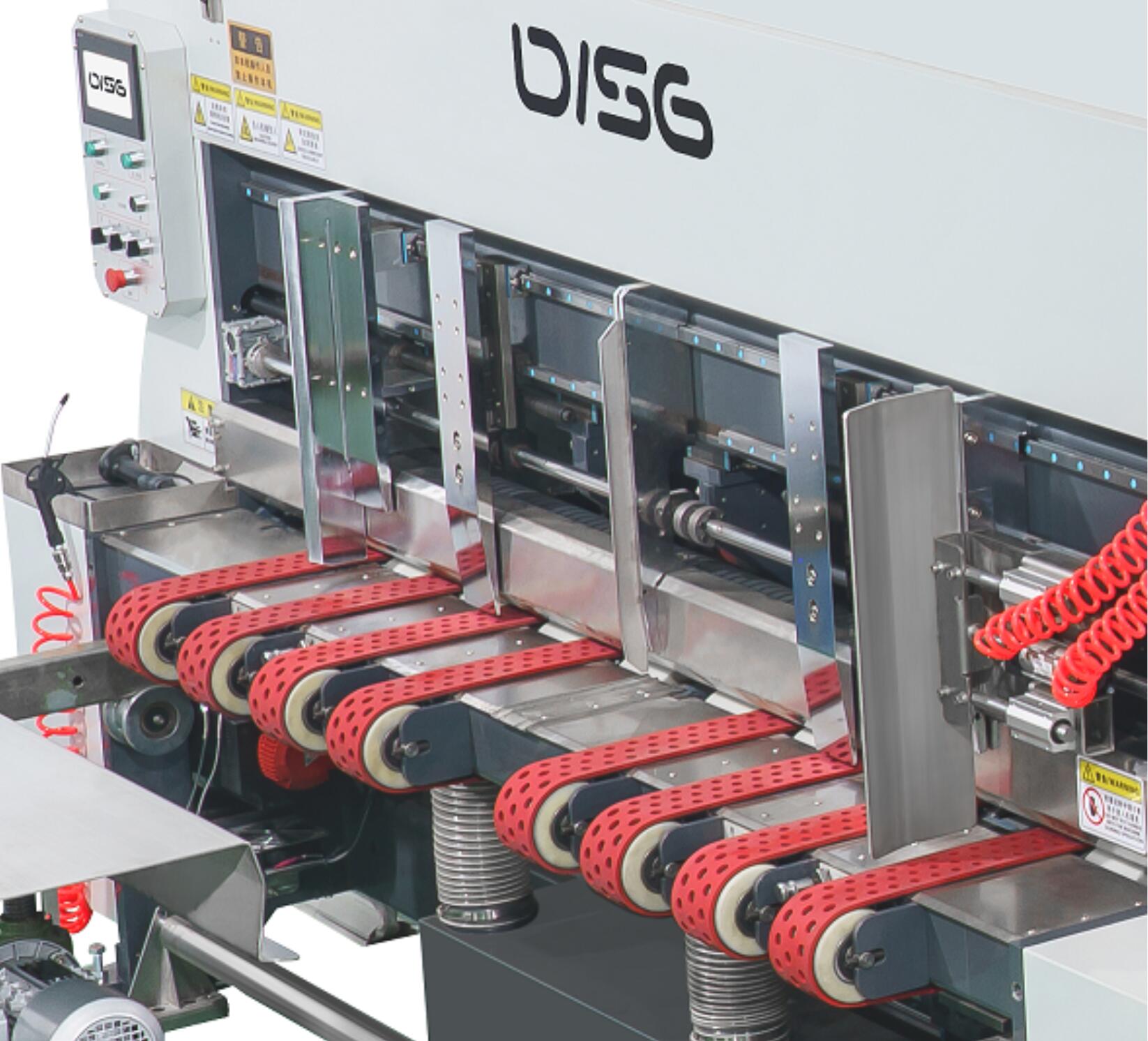

Stitching Section

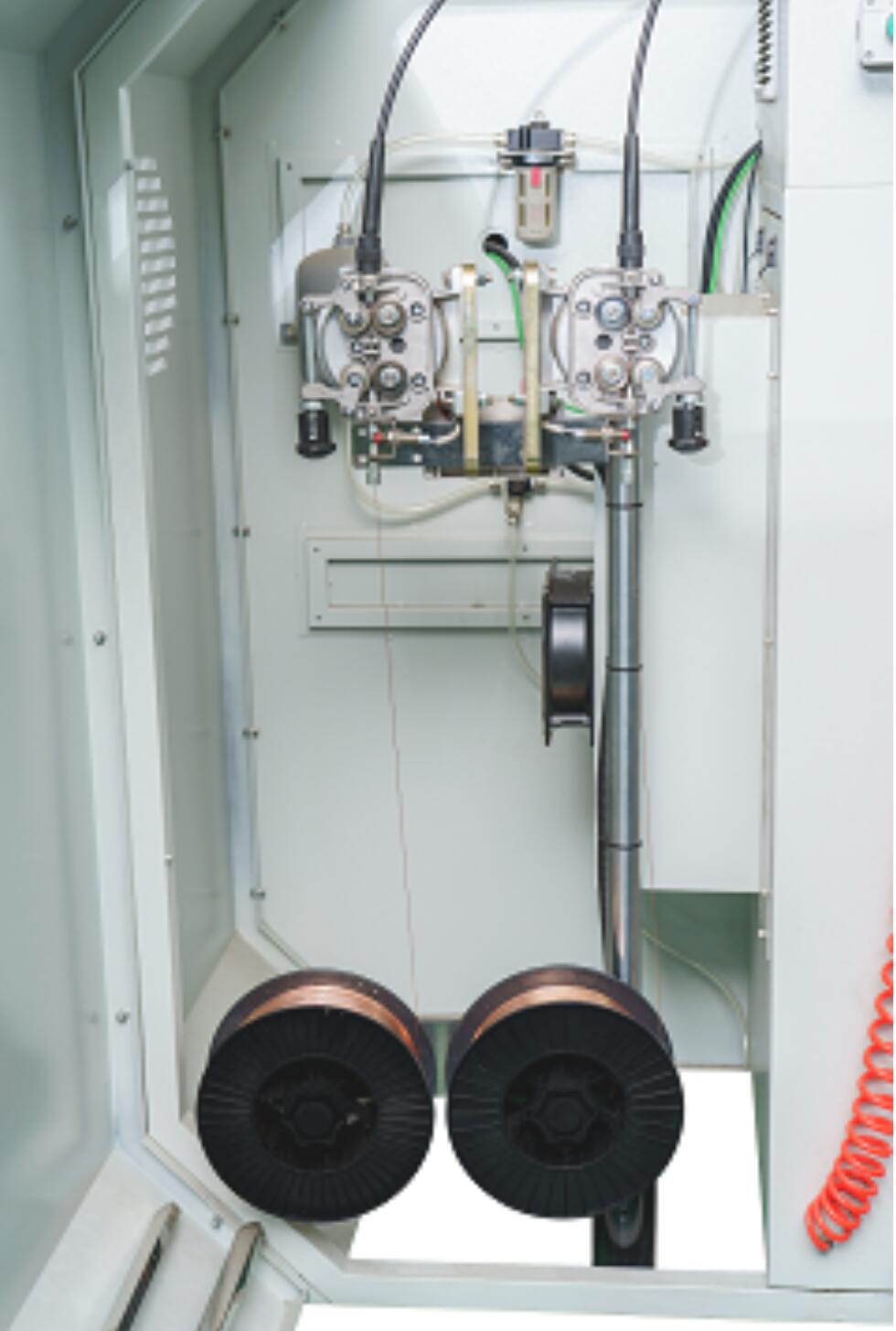

Stitching Wire Section

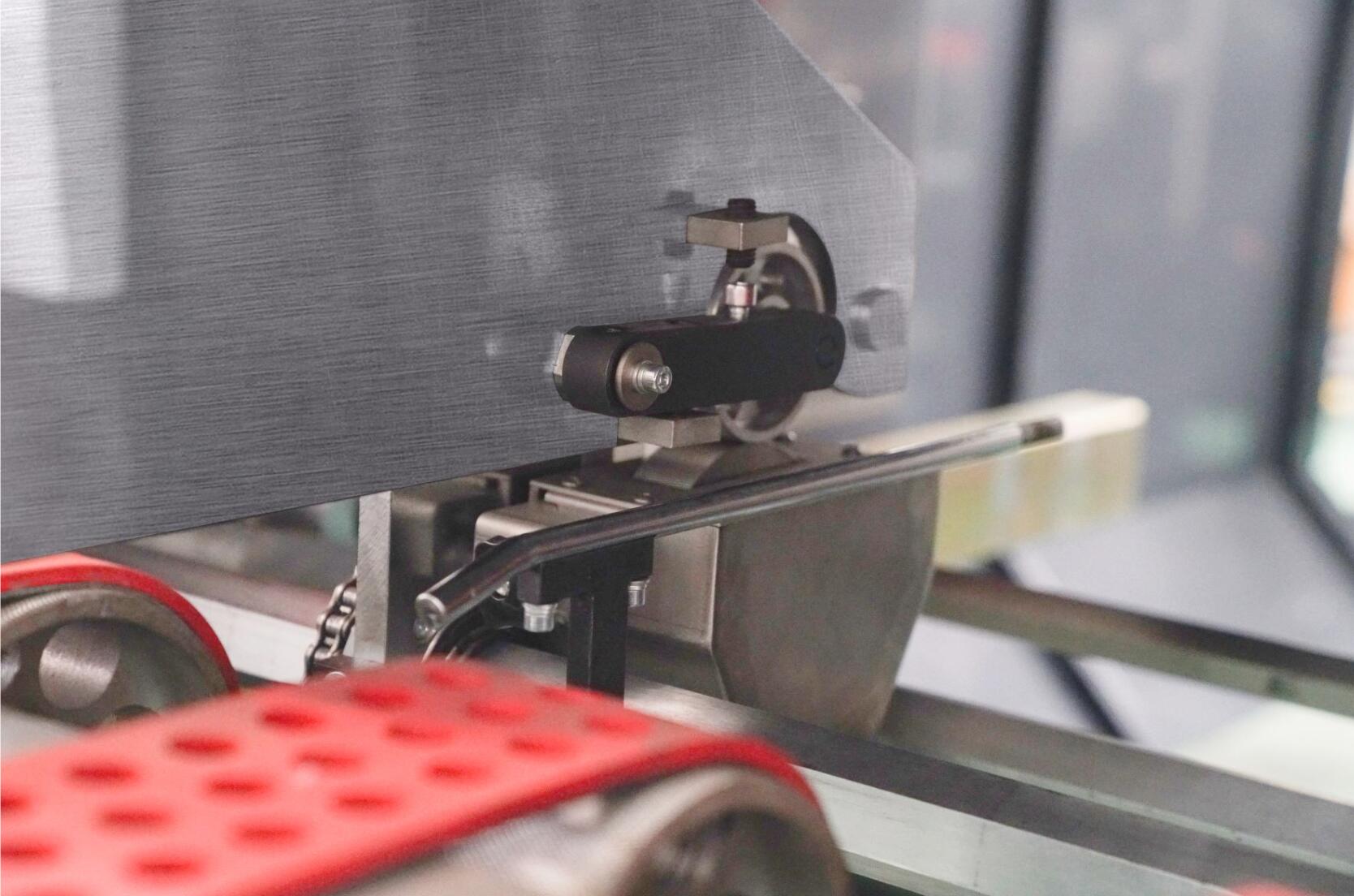

Stitching wire feeding system

Box Turn Over Section

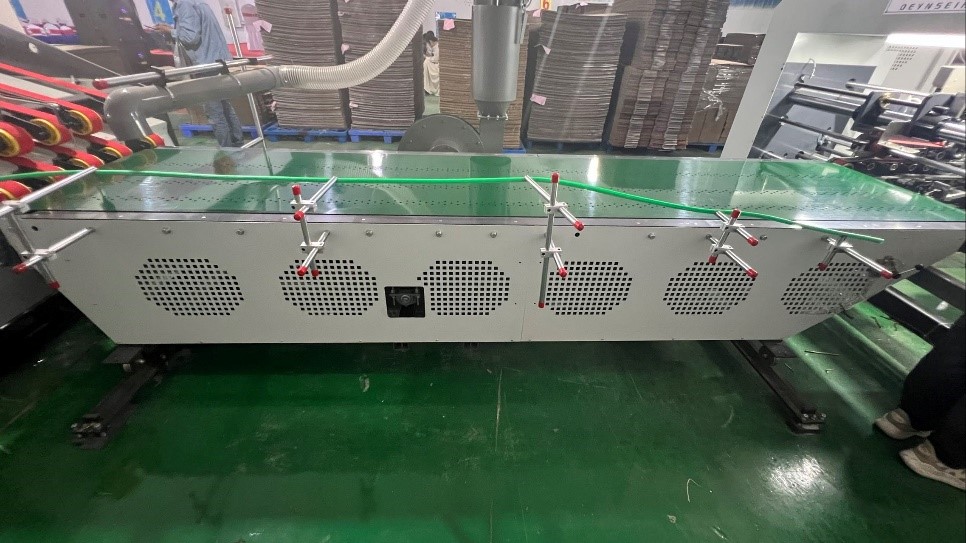

Box Trun Over Section

Top Counter Stacker

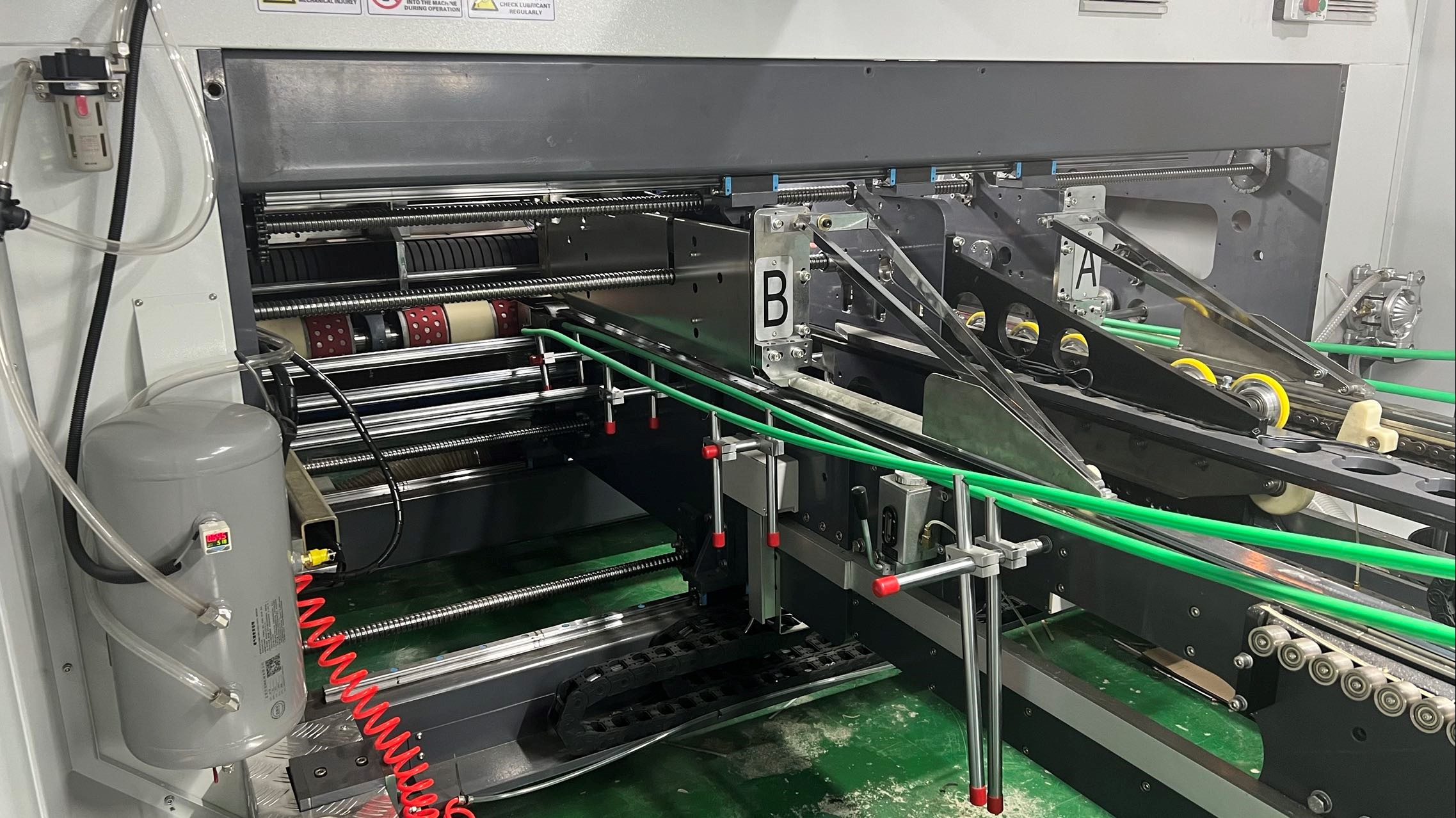

Stacker
Top Counter Ejector
