ISW series single stage single suction pipeline centrifugal pump is designed on the base of domestic excellent water power model and the performance parameter of ISW series horizontal centrifugal single stage water pump. Horizontal single stage pipeline water centrifugal pumps are designed such as hot water pump and corrosion resistance pump and oil pump for the different temperatures and liquids. The pump has the good performance of reliable operation and high efficiency and little noise.
ISW Series Pipeline Centrifugal Pump is a new type of pump with excellent hydraulic model and ingenious combination design on the basis of ordinary centrifugal pump. ISW is a single stage horizontal pipeline centrifugal water pump. This series pump has the advantages of high efficiency, low noise, reliable performance.
Horizontal pipeline water pump character:
1. Horiozntal installation, compact structure, small space occupying area.
2. Easy installation, the inlet and outlet diameter is the same and on the same axis, which can be used as part of any pipeline.
3. Using the one of the world's most outstanding hydraulic model to reduce energy consumption.

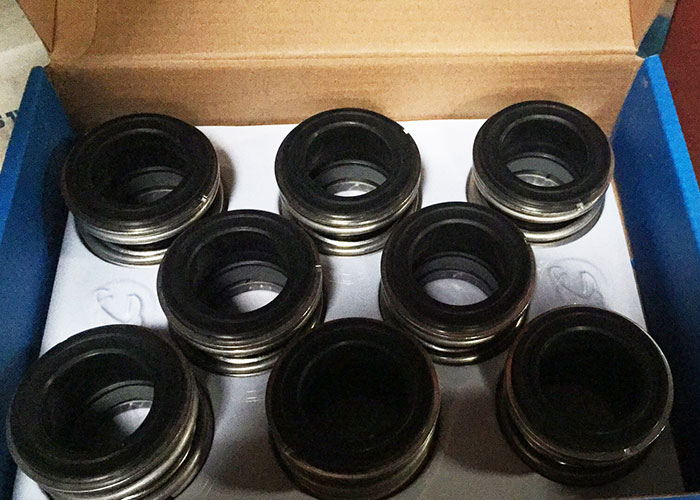

4. The seal is reliable, and the shaft seal is mechanical seal made of hard alloy and tungsten carbide.
5. Vertical or horizontal installation can be adopted according to piping layout requirements.
(Flow rate, head meters, and power supply, ODM OEM is available)
| Outlet diameter | Impeller diameter | Flow | Head | Power |
| mm | mm | m3/h | m | kw |
| 65 | 250 | 21.6 | 60 | 7.5 |
| 65 | 315 | 23.7 | 113 | 22 |
| 80 | 250 | 46.7 | 70 | 18.5 |
| 80 | 160 | 93.5 | 28 | 11 |
| 80 | 200 | 87 | 38 | 15 |
| 80 | 315 | 100 | 125 | 75 |
| 100 | 250 | 100 | 80 | 37 |
| 100 | 200 | 140 | 45 | 30 |
| 100 | 315 | 160 | 125 | 90 |
| 125 | 160 | 160 | 32 | 22 |
| 120 | 200 | 150 | 44 | 30 |
| 150 | 125 | 160 | 20 | 15 |
| 150 | 160 | 150 | 28 | 18.5 |
| 200 | 200 | 179 | 10 | 11 |
| 200 | 400 | 200 | 50 | 45 |
| 200 | 500 | 200 | 80 | 90 |
| 200 | 250 | 358 | 16 | 22 |
| 500 | 500 | 400 | 80 | 132 |
| 250 | 400 | 550 | 50 | 110 |
| 250 | 500 | 550 | 80 | 185 |
| 300 | 315 | 637 | 28 | 75 |
| 300 | 500 | 626 | 60 | 160 |
| 350 | 250 | 1200 | 20 | 90 |
| 350 | 315 | 1120 | 38 | 132 |
| 350 | 400 | 1200 | 50 | 250 |
| 350 | 400 | 1120 | 44 | 220 |
FAQ
Q:How long is warranty?
A:About 24 months.
Q:How long is production lead time?
A:Depends on quantity, the normal small amount production is about 10-25 days.
Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable with most appropriate way.
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF, DDP.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
