Sewage submersible pump is non clogging water submersible pump type, developed on the basis of the introduction of foreign advanced technology.It is the most advanced internal sewage water treat systems now. We have high flow submersible pump type, high temperature submersible pump type, stainless steel submersible pump type, bottom suction submersible pump type and slurry submersible pump type.
Sewage submersible pump features:
1. Notable energy saving effect
2. Non clogging
3. Anti-winding
4. Strong particles passing ability
5. Automatic prosecution
Sewage submersible pump models:
(Flow rate, head meters and material, ODM OEM is available)
| Outlet diameter | Model | Flow | Head | Power | |
| mm | WQ type | m3/h | m | kw | hp |
| 50 | 50WQ15-20-2.2 | 15 | 20 | 2.2 | 3 |
| 65 | 65WQ25-20-3 | 25 | 20 | 3 | 4 |
| 80 | 80WQ50-13-4 | 50 | 13 | 4 | 5 |
| 80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
| 100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
| 100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 |
| 150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 |
| 100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 |
| 150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 |
| 200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 |
| 100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 |
| 150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 |
| 200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 |
| 100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 |
| 150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 |
| 200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 |
| 250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
| 150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 |
| 200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 |
| 250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 |
| 300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 |
| 150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 |
| 200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
| 350 | 350WQ1100-10-55 | 1100 | 10 | 55 | 75 |
| 250 | 250WQ600-25-75 | 600 | 25 | 75 | 100 |
| 300 | 300WQ800-20-75 | 800 | 20 | 70 | 100 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
Features: high efficiency, non clogging

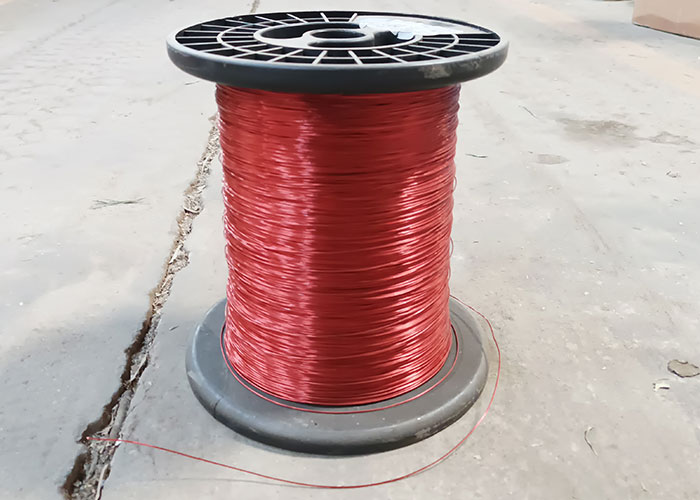

Copper wire of sewage submersible pump:

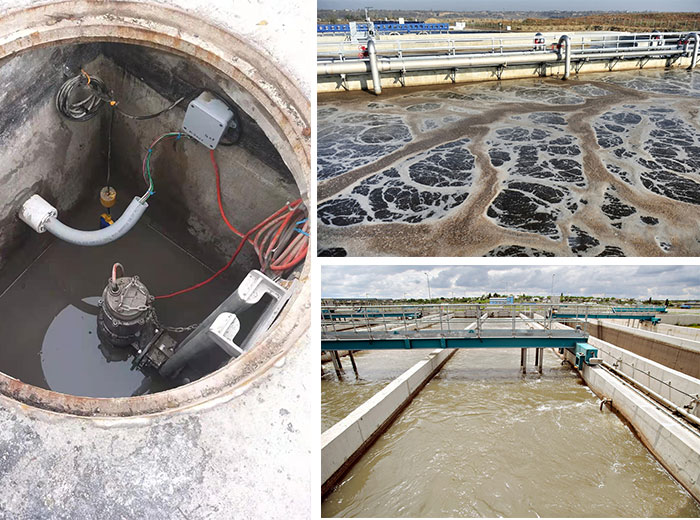

Sewage submersible pump applications:
1. Enterprise wastewater discharge;
2. Drainage system of city sewage treatment plant
3. Drainage station of subway, underground chamber, air defense system
4. Sewage drainage of hospitals, hotels, high-rise buildings
5. Sewage drainage station of residential district
6. Thin mud drainage of municipal works and construction site
7. Water supply equipment of water plant
8. Sewage drainage of farm and agriculture irrigation of village
9. Mining exploration and water treatment equipment supporting
10. Replacing the shoulder carries to deliver river mud.
Sewage submersible pump working conditions:
1. Based on the impeller center, the underwater depth that the pump was placed shall not exceed 5 m
2. Temperature of the transport medium not more than 40° C
3. Transported medium's pH value for 4 ~ 10, and pump shall not carry high corrosive liquid
4. The transfer medium's solid volume ratio under 20%
5. The movement viscosity of transport medium for 7× 10-7~23× 10-6m² /s.
If you are interested in the product, contact 2bvideo.com for more information for more information
