Vertical long shaft turbine submersible pump is an advanced and mature series of pumps developed by our company on the basis of absorbing the advanced experience in the design and manufacturing of vertical long shaft pump at domestic and abroad, which combined with the market demand. Turbine submersible pump is a special design by our technical department, the temperature submersible pump of conveying medium can reach 105 ℃.
Turbine water submersible pump models:
(Note: flow rate, head meters, motor power and material, ODM OEM is available)
Type
Capacity
Head
Shaft Power
Motor Power
m3/h
l/s
m
kw
kw
150LC-20
100
27.8
20
7.1
11
150LC-7
181
50.4
7.4
4.7
7.5
150LC-13
181
50.3
13
8.3
15
150LC-18
188
52.2
18
12
18.5
150LC-26
187
52
26
17.5
30
150LC-18×2
188
52.2
36
24.1
30
150LC-18×3
188
52.2
54
36.1
55
150LC-18×4
188
52.2
72
48.2
75
150LC-18×5
188
52.2
90
60.2
75
150LC-18×6
188
52.2
108
72.3
110
150LC-26×2
187
52
52.1
34.9
45
150LC-26×3
187
52
78.1
52.4
75
150LC-26×4
187
52
104.2
69.9
90
150LC-26×5
187
52
130.2
87.3
110
150LC-26×6
187
52
156.3
104.8
132
200LC-7
335
93.1
7.7
9.1
15
200LC-11
336
93.4
11.2
13.1
18.5
200LC-21
360
100
21
26.4
37
200LC-26
336
93.2
26.5
31.2
45
200LC-38
334
92.8
38.3
45.3
75
200LC-21×2
360
100
42
52.8
75
200LC-21×3
360
100
63
79.2
110
200LC-21×4
360
100
84
105.6
132
200LC-21×5
360
100
105
132.1
185
200LC-21×6
360
100
126
158.5
200
200LC-38×4
334
92.8
153.3
181.2
220
200LC-38×5
334
92.8
191.7
226.5
280
250LC-7
531
147.6
7.1
13.2
18.5
250LC-10
535
148.5
10.6
19.6
30
250LC-15
522
144.9
15
26.9
37
250LC-24
524
144.9
24
43.4
55
250LC-34
524
145.6
34
61.9
90
250LC-52
524
145.6
51.8
94.8
132
250LC-34×2
524
145.6
68
123.7
160
250LC-34×3
524
145.6
102
185.6
250
250LC-34×4
524
145.6
136
247.4
315
250LC-52×3
524
145.6
155.3
284.4
355
250LC-34×5
524
145.6
170
309.3
400
Turbine submersible pump material
1. Bowl: Cast iron, SS304/316/316L/Duplex S.S
2. Shaft: SC#45/SS304/316/316L/Duplex S.S
3. Impeller: Cast iron, SS304/316/316L/Duplex S.S
4. Discharge head: Cast iron, SS304/316/316L/Duplex S.S

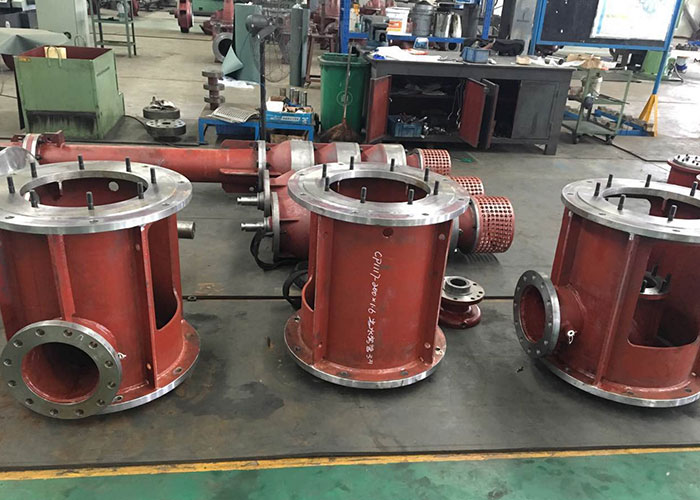

Turbine submersible pump structure:
1.Single casing structure,pump casing is connected to the supporting tube,supporting tube is connected to bearing housing,bearing housing is connected to base plate.
2. Cylinder type bearing housing plus rolling bearings.
3. Sealing ring as the shaft sealing,without any cooling water.
4. A stir impeller is adopted beyond the impeller of ZLJ model to agitate slurry or particles in the fluids.
5. Direct coupled Transmission.
High flow turbine submersible pump application
1. Water supply
2. Irrigation for deep well
3. Mine dewatering
4. Sprinkling and irrigation
5. Industrial wet-pit sumps
6. River/Sea water circulation

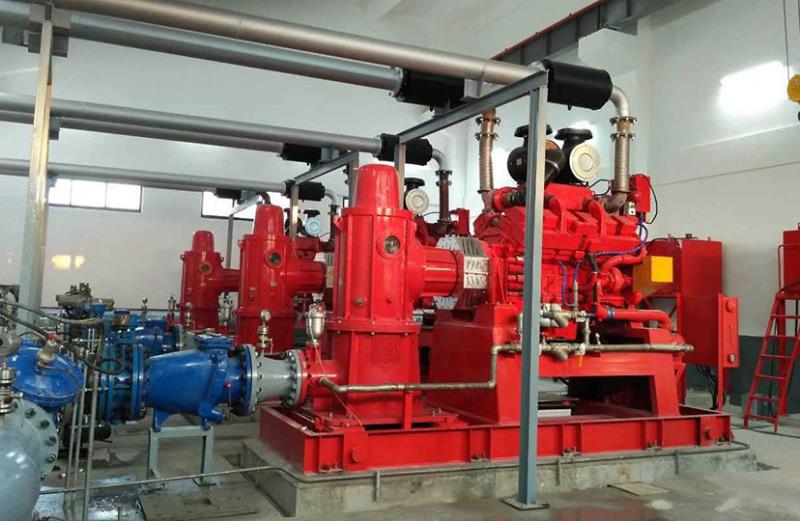

7. Fire-fighting
