Product details

Submersible pump control panels

Submersible pump control panels are used to control, automate and protect residential, industrial, and commercial water-based systems. They can be used in sump pump systems as well, with the differentiating factor being that submersible pumps are completely submerged in water or liquid that needs to be pumped. Submersible pumps are also specially sealed in order to prevent any short circuits, and to prevent any contact with the water or other liquids. They may also push fluid up and out, instead of pulling.

What type of submersible pump control panel is right for me?

Submersible pump control panels are used across many sectors. Common applications include water wells, oil rigs, mining, sewage pumping and draining, industrial water extraction, and more. Both single phase submersible pump control panels and three-phase submersible pump control panels are used across these applications. Single phase pumps are most often utilized for general industrial uses, while three-phase pumps are used in the residential and commercial sectors.

We offer a full line of simplex and duplex 3 phase control panels available in 208-230V and also 460V. These panels are custom built to fit your application. Simply provide us with the FLA and voltage of your pumps and APK will provide you with a function submersible pump control panel.

According to different control requirements, the control panel can conduct pole less speed regulation on water pumps by parameters as control signals, such as pressure, liquid level, temperature, flow, pressure difference, temperature difference.

Some Types Of Control Panel

1. Control Panel For Liquid level control

2. Control Panel For Pressure control

3. Control Panel For HVAC (Heating, Ventilation and Air Conditioning)

4. Control Panel For Fire fighting

5. Control Panel For Frequency Conversion Speed Control

Control Panel Type	Direct starter control panel
Motor power by control	2.2kw-15kw
Pump set by control	1-4 sets

2.2kw direct starter contal cabinet:

Control panel type	Soft starter control panel
Motor power by control	15kw-160kw
Pump set by control	1-5 sets
Control panel features	Overload protection function Phase failure protection function Overheating protection function In phase short circuit function

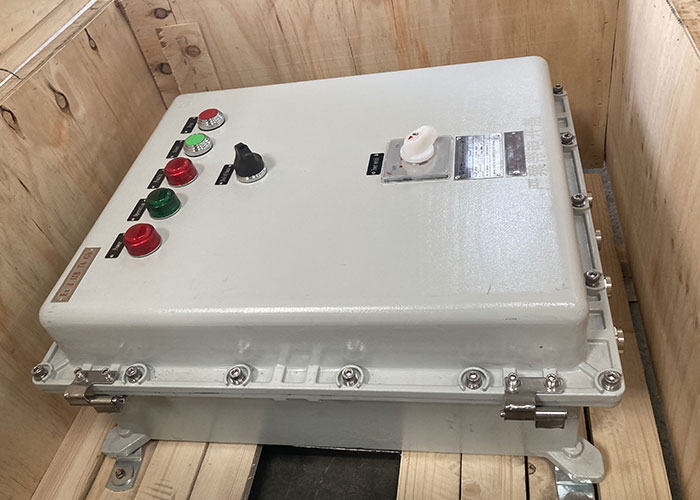

5.5kw ABB ex.proof soft starter control cabinet:

Control Cabinet

Control panel type	Frequency conversion control cabinet
Motor power by control	1.1kw-250kw
Pump set by control	1-7 sets

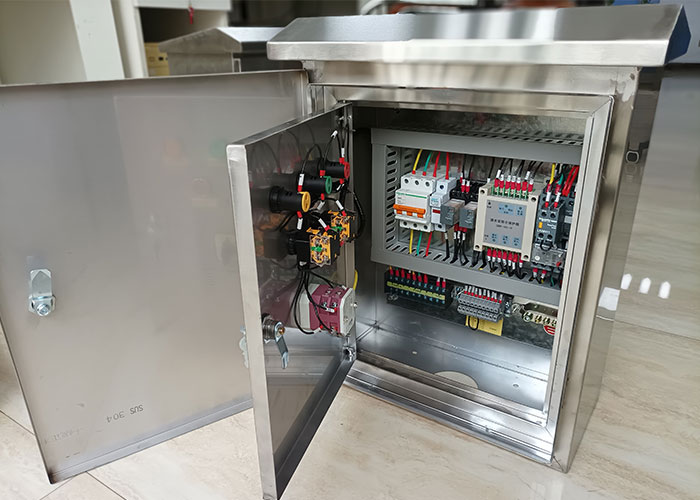

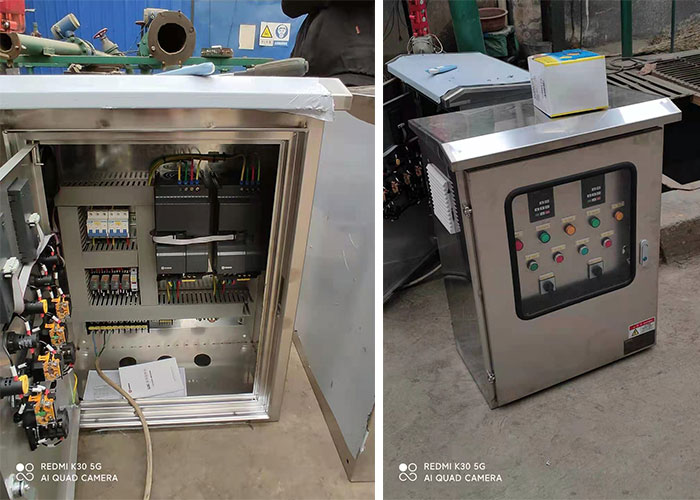

5.5kw SS316 Outdoor frequency controller with float switches, which control 2 submersible water pump sets.

Control panel type	Star-delta starter control panel
Motor power by control	15kw-90kw
Pump set by control	1-5sets

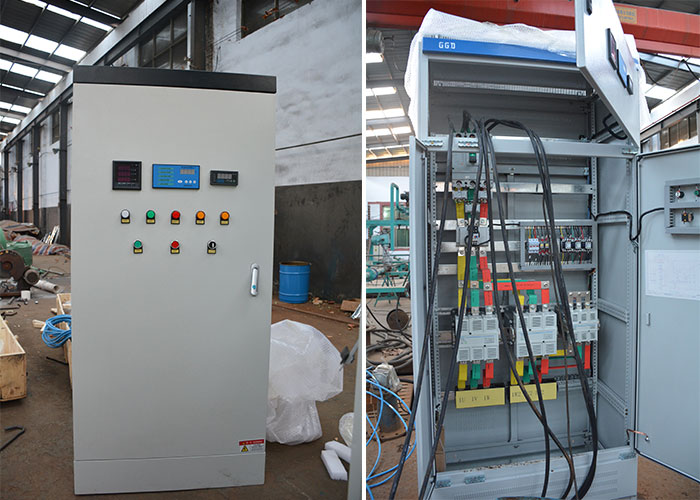

75kw star-delta starter control cabinet with three thermostat for winding over temperature protection.

Control panel (to include not limited to):-

-AC voltmeter

-AC ammeter

-Selection switch for both voltage and current

-Frequency meter

-Main switch

-Circuit breaker

-Voltage regulator

-Source lamp and water level sensor
