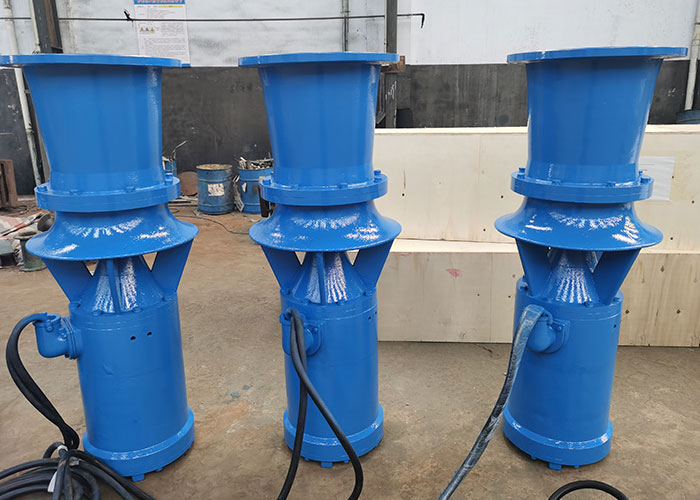

Axial flow submersible pump, a kind of high flow submersible pump low head submersible pump type. The pump and motor shaft are integrated. Can be long term underwater operation. Because the pump and motor together, dving into the water at the same time, there is no need to carry out power consumption and time-consuming assembly process at the installation site, which is convenient and fast for on-site installation.
High flow submersible pump specifications:
1. Flow rate: 500m3/h-3000m3/hr
2. Head meters: 3m-15m
3. Motor power: 7.5kw-90kw
4. Power supply: 3phase 50hz/60hz; 380v/400v/440v/460v/480v
5. Material: cast iron/SS304/SS316/SS316L
6. Install: vertical; horizontal; sled
High flow submersible pump models:
(Note: flow rate, head meter, ODM OEM is available)
| Discharge Dia | Model | Flow range | Head range | Power |
| mm | QSZ type | m3/h | m | kw |
| 200 | QSZ300-6-10 | 300 | 6 | 10 |
| 250 | QSZ500-5-13 | 500 | 5 | 13 |
| 350 | QSZ800-3-13 | 800 | 3 | 13 |
| 400 | QSZ1000-3-18.5 | 1000 | 3 | 18.5 |
| 350 | QSZ1100-10-45 | 1100 | 10 | 45 |
| 500 | QSZ1500-4-22 | 1500 | 4 | 22 |
| 500 | QSZ1250-5-30 | 1250 | 5 | 30 |
| 550 | QSZ1600-4-30 | 600 | 4 | 30 |
| 550 | QSZ2100-3-30 | 2100 | 3 | 30 |
| 550 | QSZ1600-5-37 | 1600 | 5 | 37 |
| 550 | QSZ2000-4-37 | 2000 | 4 | 37 |
| 650 | QSZ2500-3-37 | 2500 | 3 | 37 |
| 550 | QSZ1900-5-45 | 1900 | 5 | 45 |
| 650 | QSZ2400-4-45 | 2400 | 4 | 45 |
| 750 | QSZ3000-3-45 | 3000 | 3 | 45 |
| 500 | QSZ1800-10-75 | 1800 | 10 | 75 |
Axial high flow submersible pump type:
FAQ
Q:How long is warranty?
A:About 24 months.
Q: How I know the high flow water submersible pump quality?
A: We will share high flow water submersible pump quotation, as the same time, we will send technical data sheet and testing videos and testing reports.
Q:How long is production lead time of high flow water submersible pump?
A:Depends on quantity, the normal small amount production is about 10-25 days.
Q:What’s type of shipping?
A:Usually by sea freight, and will be based on the customer's destination to choose the most favorable and most appropriate way.
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF, DDP.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
