Vertical Multistage Centrifugal Water Pump

Vertical Multistage Centrifugal Water Pump

3 year ago

91 0

Zhengzhou Shenlong Pump Industry CO.,Ltd

 3 year year

Product details

Vertical multistage surface centrifugal water pump is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Vertical multistage surface water centrifugal pump, attached with long shaft electric motor. Compact structure renders small size of pump; axial inlet and radial outlet.

Vertical multistage surface water centrifugal pump transmission medium:
1, Non flammable and explosive medium, thin, clean, containing no solid particles or fibers.
2, such as mineral water, softened water, pure water, thin sewage water, food oil and other light industry media.
3, pump the main material for stainless steel, can be used in pumping mildly corrosive media.

Vertical multistage surface water centrifugal pump models:

Inlet/Outlet diameter	Type	Grade	Flow rate	Head	Power
mm	CDLF series	/	m3/h	m	kw	hp
150	150CDL160-20	2	113.4 160 194.4	46	30	40
				40
				34
		4		92	55	75
				80
				68
		7		161	90	120
				140
				119
		9		207	110	150
				108
				153
125	125CDL100-20	3	75.6 100 126	69	30	40
				60
				51
		5		115	45	60
				100
				85
		6		138	55	75
				120
				102
100	100CDL100-20	2	75.6 100 126	46	18.5	25
				40
				34
		5		115	45	60
				100
				85
		7		161	75	100
				140
				119
		10		230	75	100
				200
				170
100	100CDL72-14	2	50.4 72 86.4	32	11	15
				28
				24
		3		48	15	20
				42
				36
		4		64	18.5	25
				56
				48
		6		96	30	40
				84
				72
80	80CDL54-14	2	37.8 54 64.8	32	7.5	10
				28
				25
		3		48	11	15
				42
				37.5
		5		80	18.5	25
				70
				62.5
		10		160	37	50
				140
				125
80	80CDL36-12	6	25.2 36 43.2	81	11	15
				72
				63
		7		94.5	15	20
				84
				73.5
		8		108	15	20
				96
				84
		9		121.5	18.5	25
				108
				94.5
80	80CDL36-12	2	25.2 36 43.2	27	4	5
				24
				21
		3		40.5	5.5	7
				36
				31.5
		4		54	7.5	10
				48
				42
		5		67.5	11	15
				60
				52.5
65	65CDL24-12	2	16.8 24 28.8	27	3	4
				24
				20
		3		40.5	4	5
				36
				30
		4		54	5.5	7
				48
				40
		5		67.5	7.5	10
				60
				50
		6		81	7.5	10
				72
				60
		7		94.5	11	15
				84
				70
		8		108	11	15
				96
				80
		9		121.5	15	20
				108
				90
		10		135	15	20
				120
				100
		11		148.5	18.5	25
				132
				110
50	50CDL18-15	2	12.6 18 21.6	36	3	4
				30
				25
		3		54	4	5
				45
				37.5
		4		72	5.5	7
				60
				50
		5		90	7.5	10
				75
				62.5
		8		144	11	15
				120
				100
50	50CDL12-15	2	8.4	36	2.2	3
				30
				25
		3		54	3	4
				45
				37.5
		4		72	4	5
				60
				50
		5		90	5.5	7
				75
				62.5
		8		144	7.5	10
				120
				100
		10		180	11	15
				150
				125
40	40CDL6-12	3	4.2	41	1.5	2
				36
				30.5
		4		54	2.2	3
				48
				40.6
		6		82	3	4
				72
				61
		9		123	4	5
				108
				91
		11		150	5.5	7
				132
				112
		15		205	7.5	10
				180
				152.5

Vertical multistage surface water centrifugal pump application

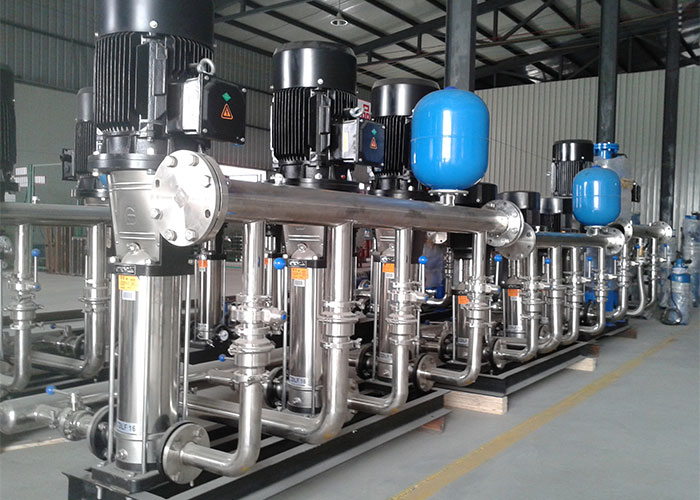

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.

2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.

3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.

4) Water Treatment: ultra filtration system.

5) Reverse Osmosis System.

6) Distillation System, separator, swimming pool.

7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation
