Kevlar braided wire protection tube

Kevlar braided wire protection tube

3 year ago

3 0

Shenzhen Huiyunhai Tech.Co., Ltd.

 3 year year

Product details

Kevlar fiber has a wide range of applications, mainly in the military and textile and clothing fields. The armor made of Kevlar fiber laminates and steel and aluminum plates is basically applied to tanks, armored vehicles, bulletproof vests, warships, helicopter materials, etc. At the same time, the bulletproof vests made of Kevlar fiber have more than twice the protective performance compared with bulletproof vests made of nylon and glass fiber, and the Kevlar fiber bulletproof vests are more flexible, comfortable and lighter. Nowadays, Kevlar fiber flows into China and is applied to the protective braided sleeve of optical fiber. Kevlar fiber has excellent flexibility and can effectively protect the optical fiber from damage.

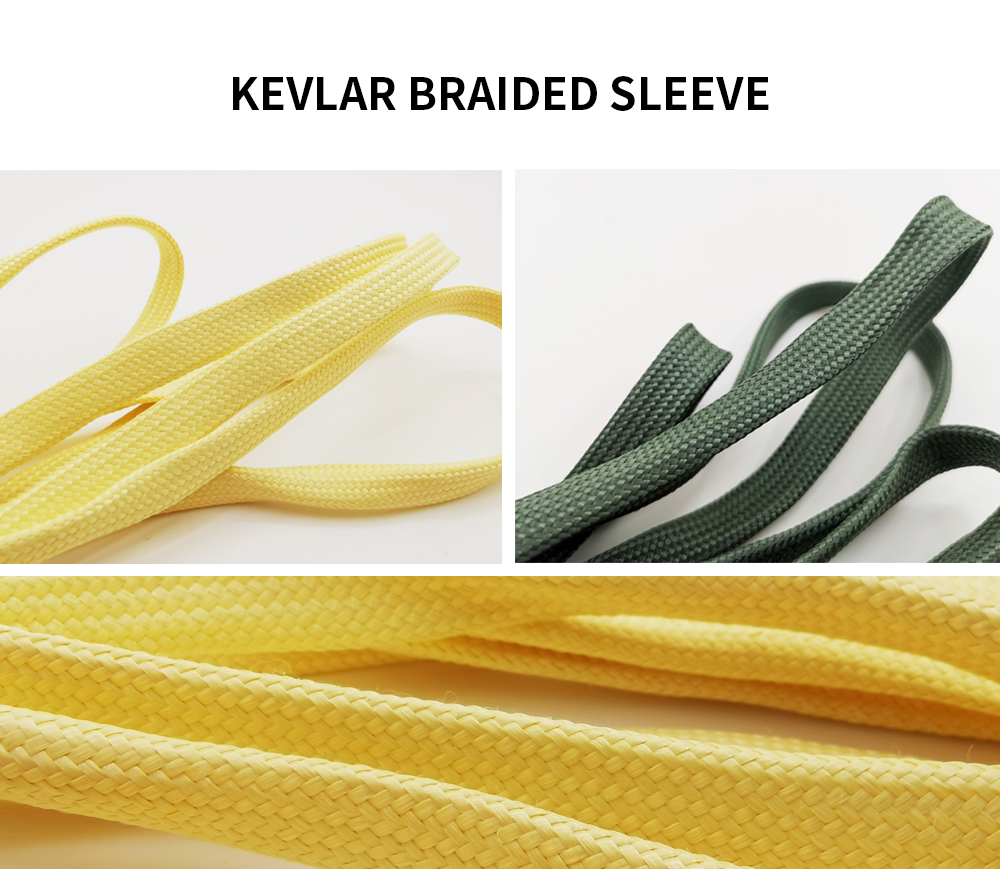

Kevlar Braided Sleeve is woven from Kevlar fiber. The tensile strength of "Kevlar" is extremely high, more than twice that of nylon fiber, and the ability to absorb kinetic energy of shrapnel is 1.6 times that of nylon, twice that of steel. It is light in weight and has good bulletproof performance. Features of special material braided sleeve: compared with fiberglass, under the same protection conditions, the weight of "Kevlar" material can be reduced by half, and the toughness of "Kevlar" laminated sheet is three times that of steel, which can withstand repeated impact. The combination of "Kevlar" sheet and steel armor is even more powerful. If steel - aramid - steel composite armor is used, it can prevent anti-tank missiles with a thickness of 700 mm, and can also prevent bullets. Thermal stability: Kevlar (R) fiber is very stable in thermal test (TGA), and there is no obvious weight loss until 600 ℃; The Kevlar (R) fiber test piece with low corrosivity and high content shows lower corrosivity than semi-metal sheet; Compared with the brake pads made of asbestos fiber, the wear resistance of Kevlar (R) fiber is very low when it is well loosened. Maintain the strength of the preformed brake pad and the durability of the filler.

Cable Kevlar Protective Tube

Technique Data-Sheet
Material:	Kevlar and other special fibers
Working Temperature:	-50℃---600℃
Certificates:	RoHS、REACH
Standard Colors:	Yellow / Green.
Cutting Tool:	Scissor
Application:	The product is suitable for industry. It can be used as tire cord, high-strength rope, rigging, pressure container, etc. It can be made in military, such as bulletproof vests, helmets, armor plates, etc. Kevlar fiber can be used in aircraft fuselage, interior decoration materials in wing and rocket engine shell. It can also be used to make sports equipment, ice hockey clubs, tennis rackets, skis, rowing, racing cars, etc.

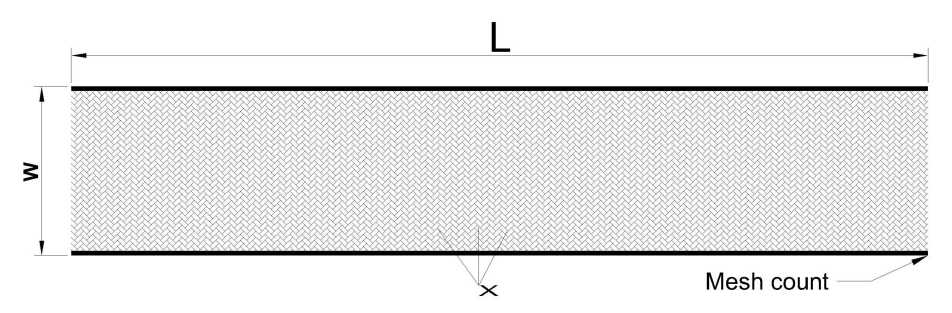

Product Drawing

Size specification
Model No.	Natural Width（W）		Packing（L）
Model No.	Inch	mm	Packing（L）
KBS-002	1/16″	2	1000m/roll
KBS-003	1/8″	3	1000m/roll
KBS-005	3/16″	5	1000m/roll
KBS-006	1/4″	6	500m/roll
KBS-008	5/16″	8	500m/roll
KBS-010	3/8″	10	500m/roll
KBS-012	1/2″	12	350m/roll
KBS-014	9/16″	14	350m/roll
KBS-016	5/8″	16	350m/roll
KBS-019	3/4″	19	250m/roll
KBS-022	7/8″	22	250m/roll
KBS-025	1″	25	100m/roll
KBS-030	19/16″	30	100m/roll
KBS-035	11/8″	35	100m/roll
KBS-040	25/16″	40	100m/roll
KBS-050	2″	50	100m/roll
KBS-060	19/8″	60	50m/roll
KBS-070	11/4″	70	50m/roll
KBS-080	25/8″	80	50m/roll
KBS-090	7/2″	90	50m/roll
KBS-100	31/8″	100	50m/roll

Unit: mm

Remark:

1.W means natural and flat width

2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。

And so on, the greater the width. The larger the tolerance allowable.

3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.

4.Please refer to the sample acknowledgement for detailed product parameters.
