GYFTC8S53 Fig8 double jackets fibre optic cable

8 month ago
1 0
Product details

 DJDA Fig 8 fiber optic cable

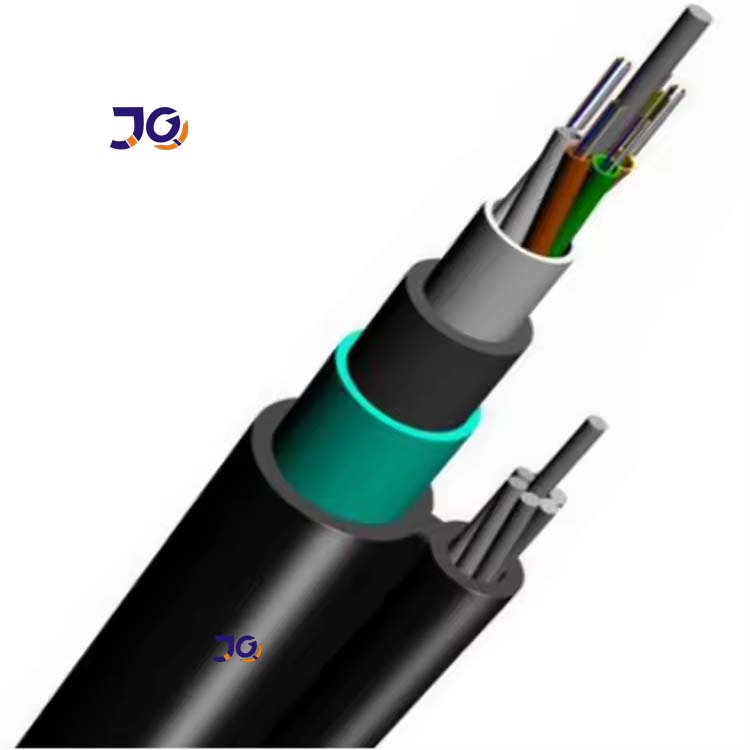

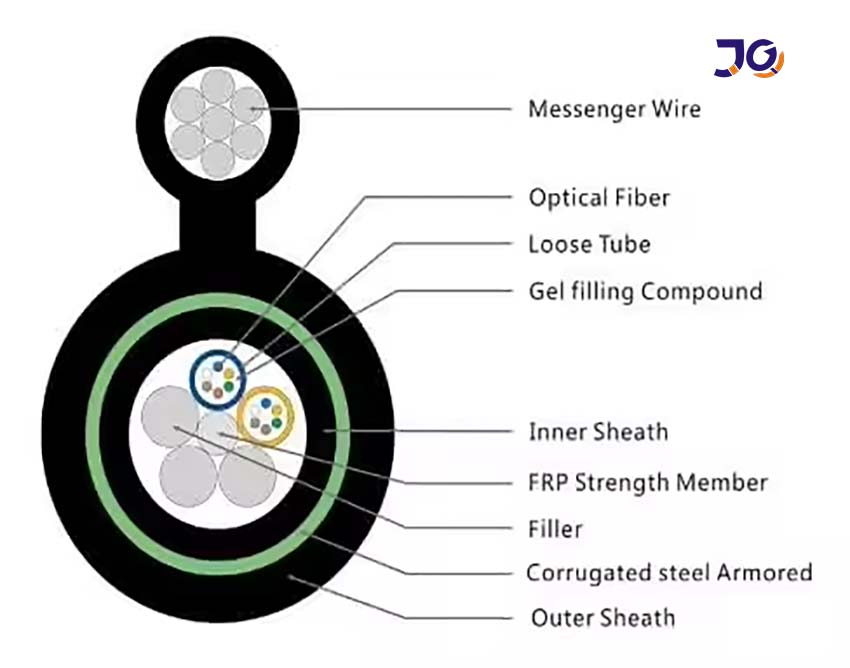

The DJDA Fig 8 fiber optic cable highlights an interesting plan. Filaments are set in free tubes of high-modulus plastic, Outdoor Optical Cable filled with a water-resistant compound. An FRP central quality part is encompassed by the tubes and filler fabric, Figure 8 Fiber Optic Cable Communication Cable shaping a compact and circular center. A folded steel tape is connected, Open air Optical Cable is taken after by an internal sheath, and at that point a PSP layer. At last, a polyethylene (PE) external sheath completes the Fig 8 structure. This specialized cable is outlined for self-supporting airborne establishments, giving amazing strength and performance.

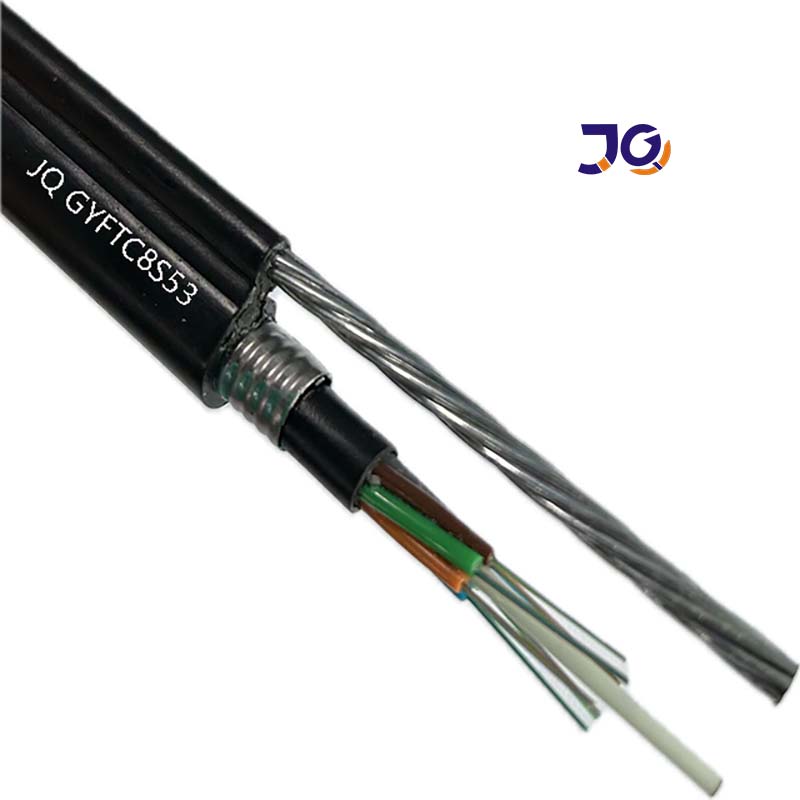

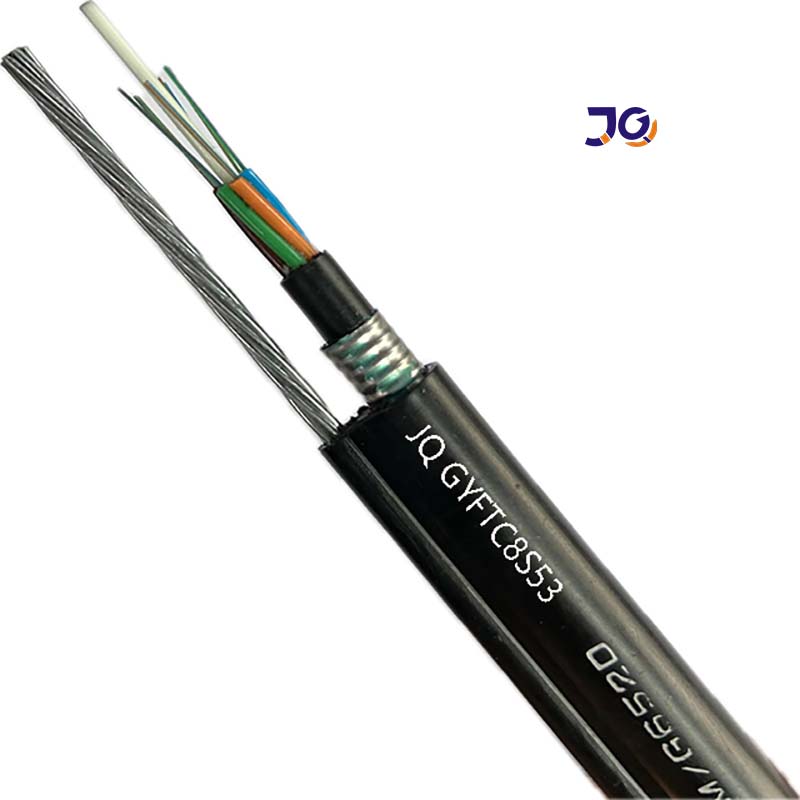

Item 12 cores DJDA GYFTC8S53 fig8 fiber optic cable
Messenger stranded steel wire  7*1.0MM ²
cable diameter  12.0mm*22.0mm
Attenuation Coefficient 1310nm dB/km ≤0.36
Attenuation Coefficient 1550nm dB/km ≤0.22
Number of loose tube (PBT) 2 loose tubes, each tube containing 6 fibers
fillers  3 fillers
Central strength member  FRP  (can be steel wire if required)
Tension(long term) 1000N/100MM
Tension(short time ) 3000N/100MM
Crush (long term) 1000N/100MM
Crush (short time ) 3000N/100MM



fig 8 cable

fiber optic cable

Our cable highlights a Fig 8 plan with inward and external coats, giving uncommon mechanical and temperature execution. The FRP central quality part guarantees basic assurance of the strands. An uncommon water-blocking filling compound is utilized in the free tube, guaranteeing 100% cable center filling. This plan gives exceptional strength and unwavering quality for your optical cable needs.

gyftc8sgyftc8s

Our cable is reasonable for the ethereal, channel, and coordinate burial establishments. It's idealize for both long-distance and neighborhood region-organized communication applications, giving a solid and secure association for your information transmission needs.s.
