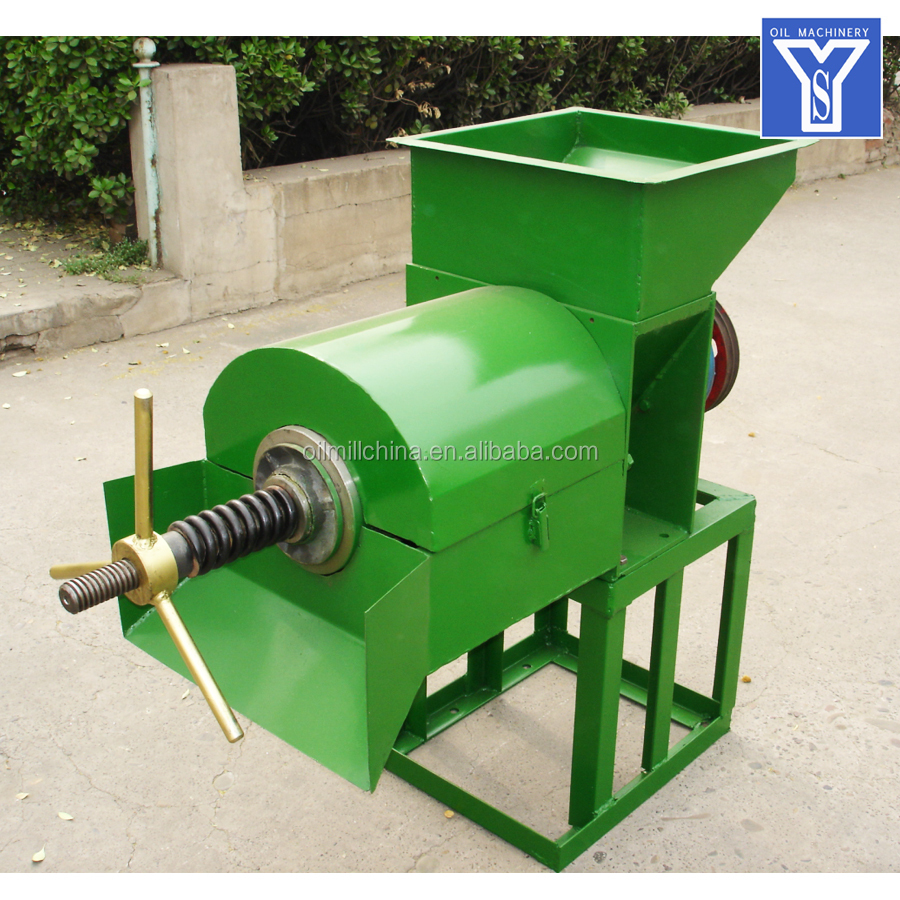

Small Capacity Palm Fruit Screw Oil Expeller
The Structure of this Small Palm Fruit Screw Oil Expeller is reasonable. It is easy to operate and maintain. It can be fitted with Motor or Diesel Engine.Everel day can produce palm oil 2-3T.It is the first selection for Palm Oil producing customs.After the production is developed you can increase a few the same Press
Pressing screw speed: 25R/Min
Specification
|
Model |
Capacity (T/h) |
Motor Power (KW) |
Max.speed (r/min) |
Overall dimension (mm) |
Weight (kg) |
|
H.H-1 |
300-500 |
3 |
25-35 |
2200X 1500X 1600 |
260 |

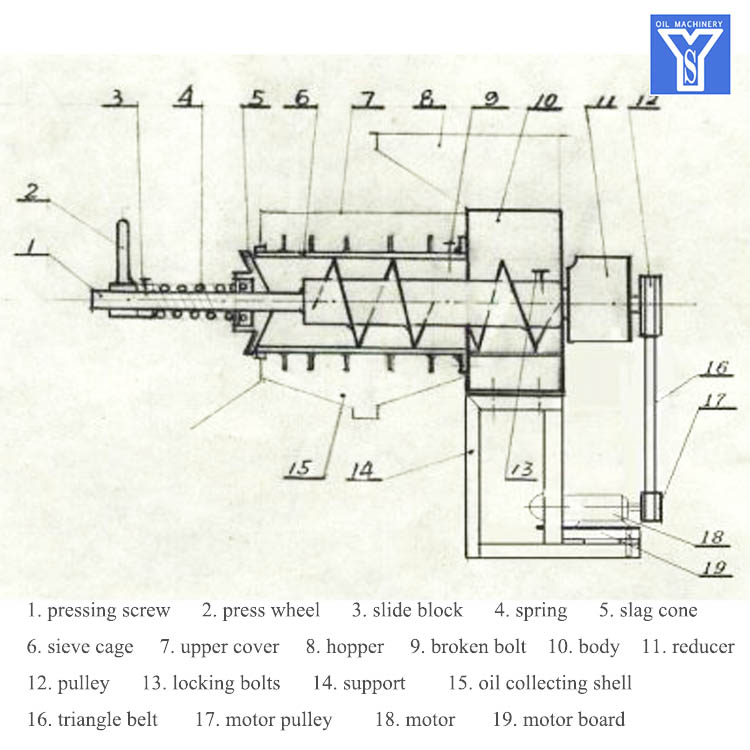

The structure is as below
Installation

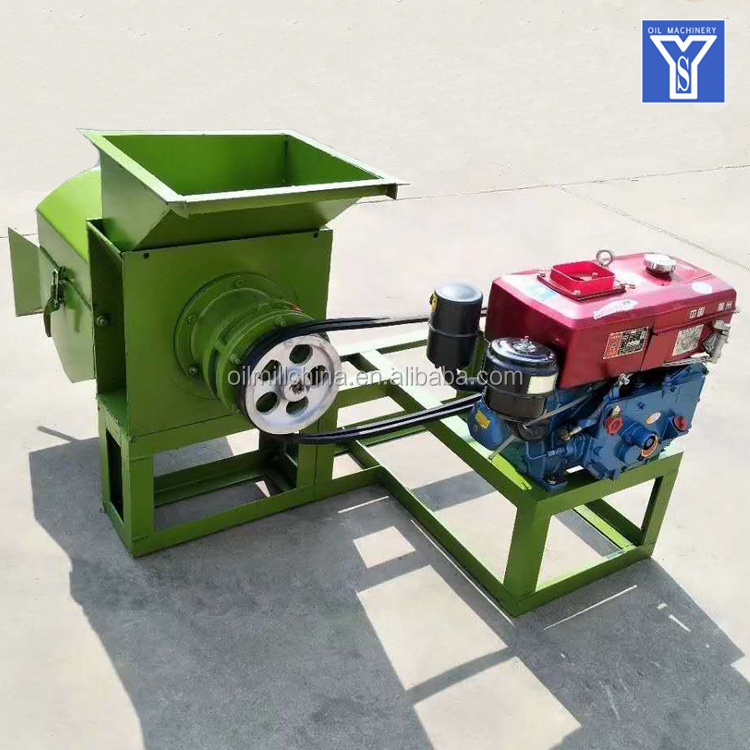

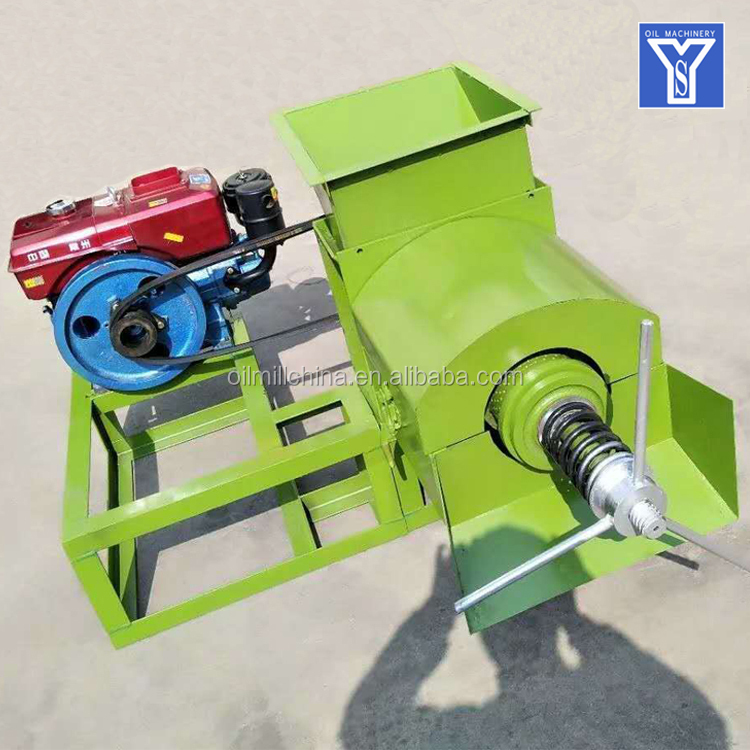

Power can be selected according to the local conditions of 3.0KW (1500 rpm) motor or 4 to 7 horsepower small diesel engine (Rev speed range from 2000 to 2200 rpm). The installation of power, motor or diesel machine installed in the two channel random band, it should consider the belt tension adjustment, then according to the situation of fixed welding, welding and the diesel engine bracket to the frame as a whole. The belt pulley is made according to the field conditions.
Debugging
1. installation body and accessories, check all fastening screws or bolts;
2. reducer with 40 oil (about 500ml), to see the oil can be seen in the oil window;
3.The locking screws 3. slider 3 to ensure that the slider slides freely in the screw without rotation;
4. turn the broken bolt 9 until it touches the screw 1, then go back 1-2 times and fix it with nuts.
5. loosen the pressure wheel, hanging belt, air for half an hour.
Operation
The wheel relax to the end, so that the slag cone exit, start the machine, poured into sterilized palm fruit, see palm fruit smooth by the slag discharge cone, slowly rotating wheel with slag cone forward, gradually increase the slag cone to sieve cage palm fruit pressure began to oil, slag cone with the sieve cage and the distance between the slag smoothly, diesel oil rate less than satisfactory for quasi. According to the situation of slag at any time adjust pressure on. To speed the screw rod of the diesel engine speed of 25 rpm for quasi.
Matters needing attention
1. Check the fastening bolts once every 1 days;
2. observation of reducer oil surface a guarantee oil level every day, the new machine running for 10 days after the release of all oil and diesel oil to be dry after washing, add new oil; replace the oil once every half a year;
3. each reboot should be carried out according to "four. Operation", no pushing wheel to push the cone forward rapidly;
4. when disassembling and pressing the screw, loosen the bolt 13 first, and then push the screw out slowly with the help of the press wheel. When the screw is loaded, it must be noted that the hammer can not be punched, so as to avoid the damage of the reducer;
