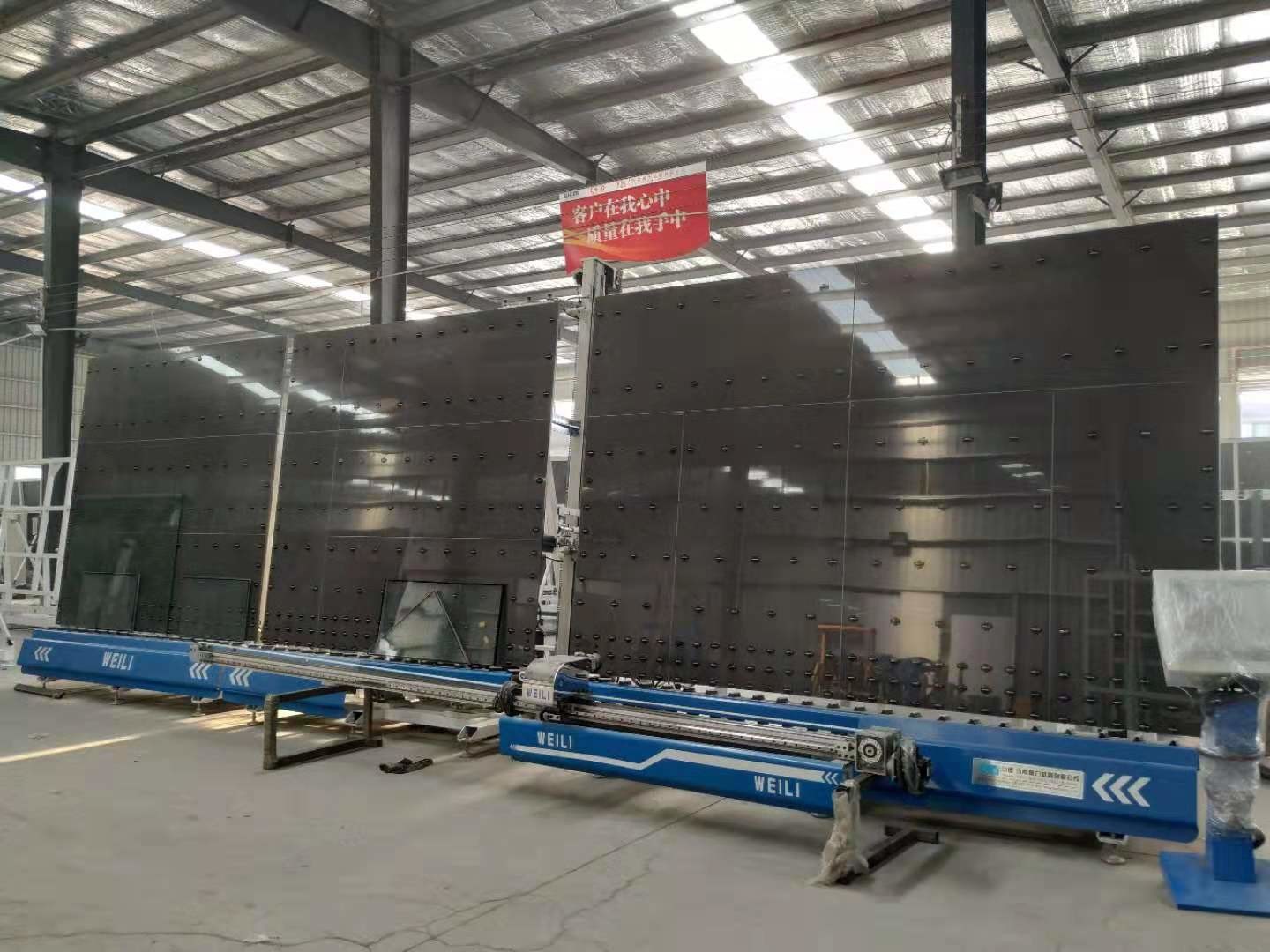

2500mm Automatic Sealing Line for DGU
Automatic sealing robot for Double Glazing Unit runs smoothly and operated conveniently.This Silicone Sealing Robot is controlled by a motion controller to achieve seal continuity for a variety of sizes of Double glazing. Auto Sealing Robot has two separate sealant supply systems that produce double glazing and triple glazing, while simultaneously sealing the two spaces of the three glazing.
Feature:
1) Automatically adjust nozzle extending width according to the glass width
2) Pressure regulation set via human-machine interface, working smoothly and operated conveniently
3) Intelligent dispensing system is able to calculate the amount of sealant needed.
4) Sealing head floating pressure intelligent control.
5) Automatic sealant compensation at the corners, sealing supplementary time adjustable
6) Can be either used standalone, or integrated into existing I.G production line.
7) Sealant extruded by hydraulic cylinder, performance is smooth and uniform

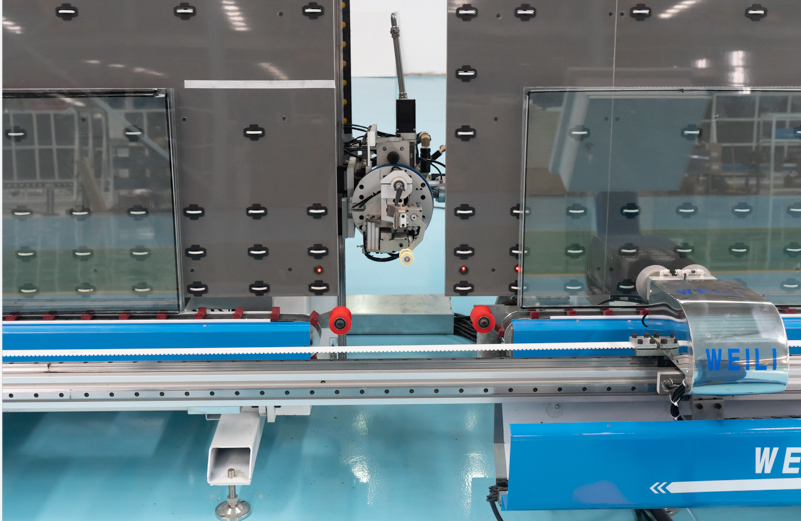

8) V block type synchronous belt ,make sure the smooth glass transmission and accurate positioning,
also can reduce the phenomenon of belt sticking by sealant .
9) 13 servo motors control system, can work with triple,shpe and step insulating glass
Electrical Component
Main No.
Name.
Brand
Country
1.
Motion controller(MP2200)
YASKAWA
JAPAN
2.
Servo motor(7series)
YASKAWA
JAPAN
3
Controls module(IRO2310)
YASKAWA
JAPAN
4
Transducer
SCHNEIDER
FRANCE
5
Photoelectric switch
AUTONICS
KOREA
6
Approach switch
AUTONICS
KOREA
7
Low-voltage component
SCHNEIDER
FRANCE
8
Touch screen
SCHNEIDER
FRANCE
9
Pilot-operated type proportional flood valve
JILI
TAIWAN
10
Precise adjust pressure valve(five pieces)
SMC
JAPAN
11
Single-way valve
KOMPASS
TAIWAN
12
Air treatment
AIRTAC
TAIWAN
13
Air solenoid valve
AIRTAC
TAIWAN
14
Air cylinder
AIRTAC
TAIWAN

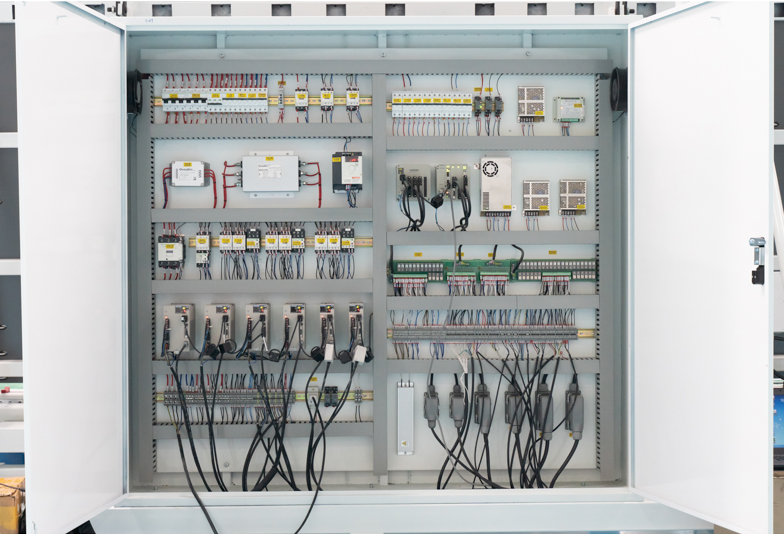

standard and neat electric cabinet of AUTOMATIC SEALING ROBOT
Technical Parameter:
Product model
WL2500-31
Min.glass size
300*450mm
Max.glass size
2500*3500mm
Glass thickness
3-12mm

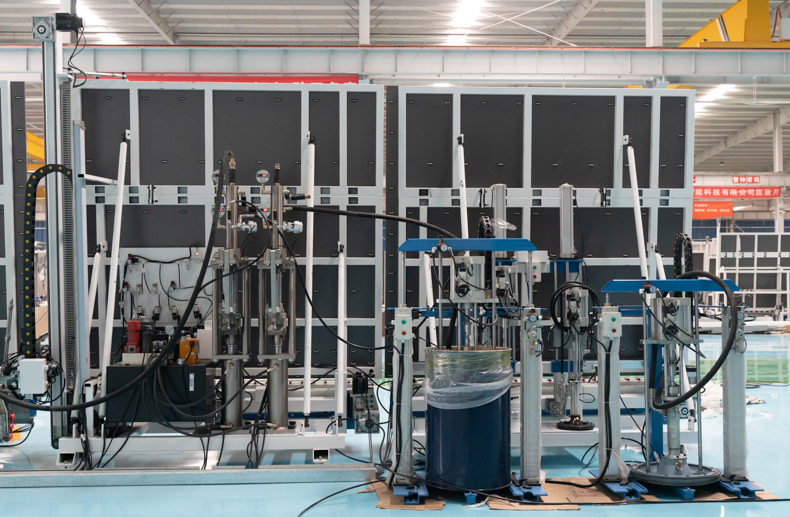

Sealant-mixing system
One Sealant-mixing system
Insulating glass thickness
12-56mm
Sealing speed
5-30m/min
Sealing width
6-24mm
Sealing depth
2-15mm
Conveyor speed
0-48m/min
Power supply
13KW
Air supply
0.5-0.8Mpa
Working height
520-580mm
Dimension
8750*3000*3400mm
Packing and Delivery：
Company information
Our Company establishde in 2001 and with 19 years history which specialize in insulating glass machine.
Machine exported to more than 60 countries,such as America,Canada,Russia,Turkey，Australia，Vietnam,India and so on.
After-sales service:
* Provide factory layout according to your factory size in advance
* Provide English Version of Installation/Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support
* Video technical support
* Field maintenance and repair service
* Field installation commissioning and training
other items of our company
1 Insulating Glass Production Line
2 Automatic Butyl Extruder Machine
3 Dessiccant Filling Machine
4 Aluminum Spacer Bar Bending Machine
5 CNC Vertical Glass Drilling and Milling Machine
6 Glass Washing Machine
