Moland design, produce and sell portables, Mobile Fume Extractors, central Industrial Dust Collectors and everything in-between. Our systems are designed to remove dust fumes and smoke from welding and machine processing environments.
Application

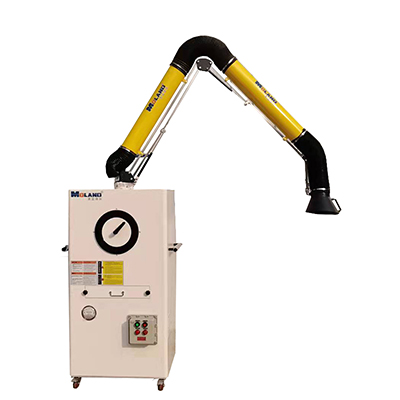

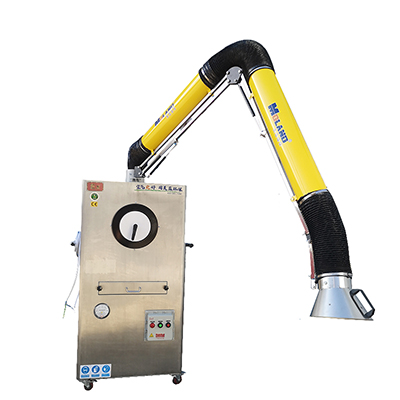

This mobile Industrial Fume Extractor is designed for welding fume, cutting fume and dust, laser welding and cutting fume and dust, plasma cutting fume and dust, grinding and polishing dust, drilling dust, stirring and cutting and other working conditions that generate fume smoke and dust.
Standard Configuration
* Filter Element: filtration efficiency >99.9%, 0.3um
* Phase failure protection, overload protection
* Intelligent control system
* Differential pressure gauge
* 40L dust collection drawer
* 10m power cord
* External skeleton suction arm (Dia.200mm*3m)
Performance Description
* Integrated structure, small footprint.
* Power status monitoring: faulty phase, overvoltage and undervoltage alarm to prevent damage to the motor and electrical components.
* When the pointer of the differential pressure gauge reaches 1.5~2, the dust can be cleaned by hand.
* Hand-operated mechanical vibration to clean dust, simple operation, practical and convenient.
Technical Parameters
| Motor Power | 1.5KW |
| Working Voltage | 380V 50Hz |
| Air Volume | 2200 m3/h |
| Accuracy | 0.3um |
| Filter Material | Flmae retardant film coated polyester fiber |
| Filter Area | 8 m2 |
| Cleaning Mode | Manual |
| Noise Level | 72dBA |
| Size | 860*600*1600mm |
| Weight | 125kg |
Product Display and Packing
 |
 |
|
|
|
 |
 |
On-site Caes
Recommended working conditions:
welding workstation (2*2*3m), manual welding station, working conditions such as grinding, cutting, polishing, etc.
We also supply other models of Mobile Fume Extractors, stationary Industrial Dust Collectors, CNC Cutting Smoke Extractors, Polishing Downdraft Tables, etc. Welcome to contact us for more information.
