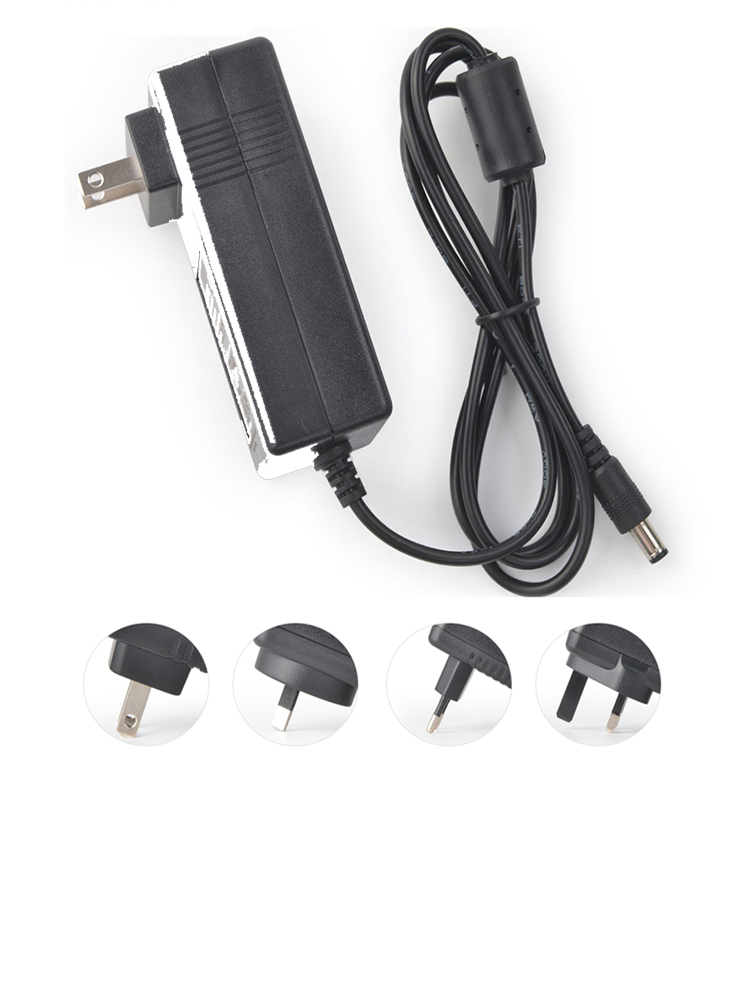

US EU AU UK plug in 19v 3.42a Ac/Dc Adapter constant voltage switching power supply adapter, wide AC input voltage100-240v to DC 19Volt. AC/DC 19v3.42a Desktop Power Adapter,model No. YHY-19003420 use for ITE and Industry applications.

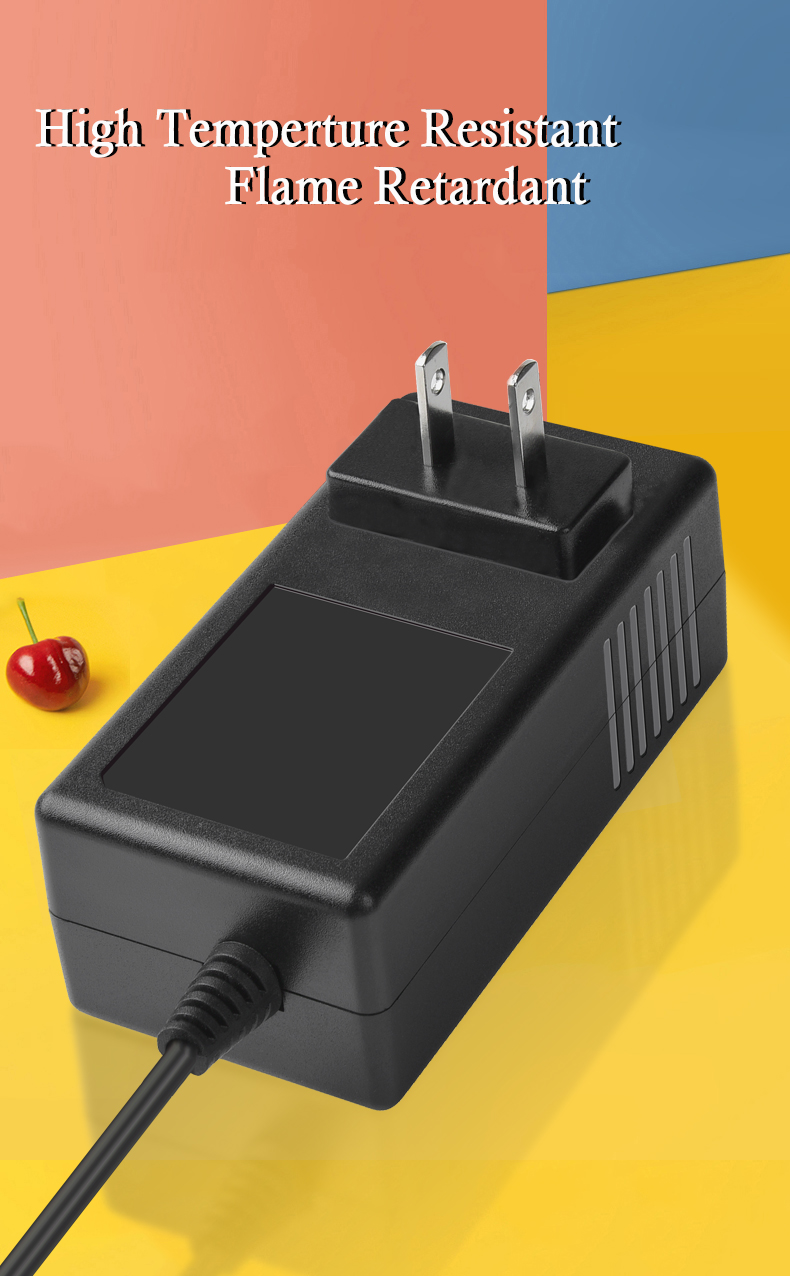

♦ Low ripple, SCP，OVP，OCP，OTP. No noticeable transformer noise or distortion when YHY 19v 3.42amp adapter works,and 94v-0 fire proof shell to ensure safe for use.

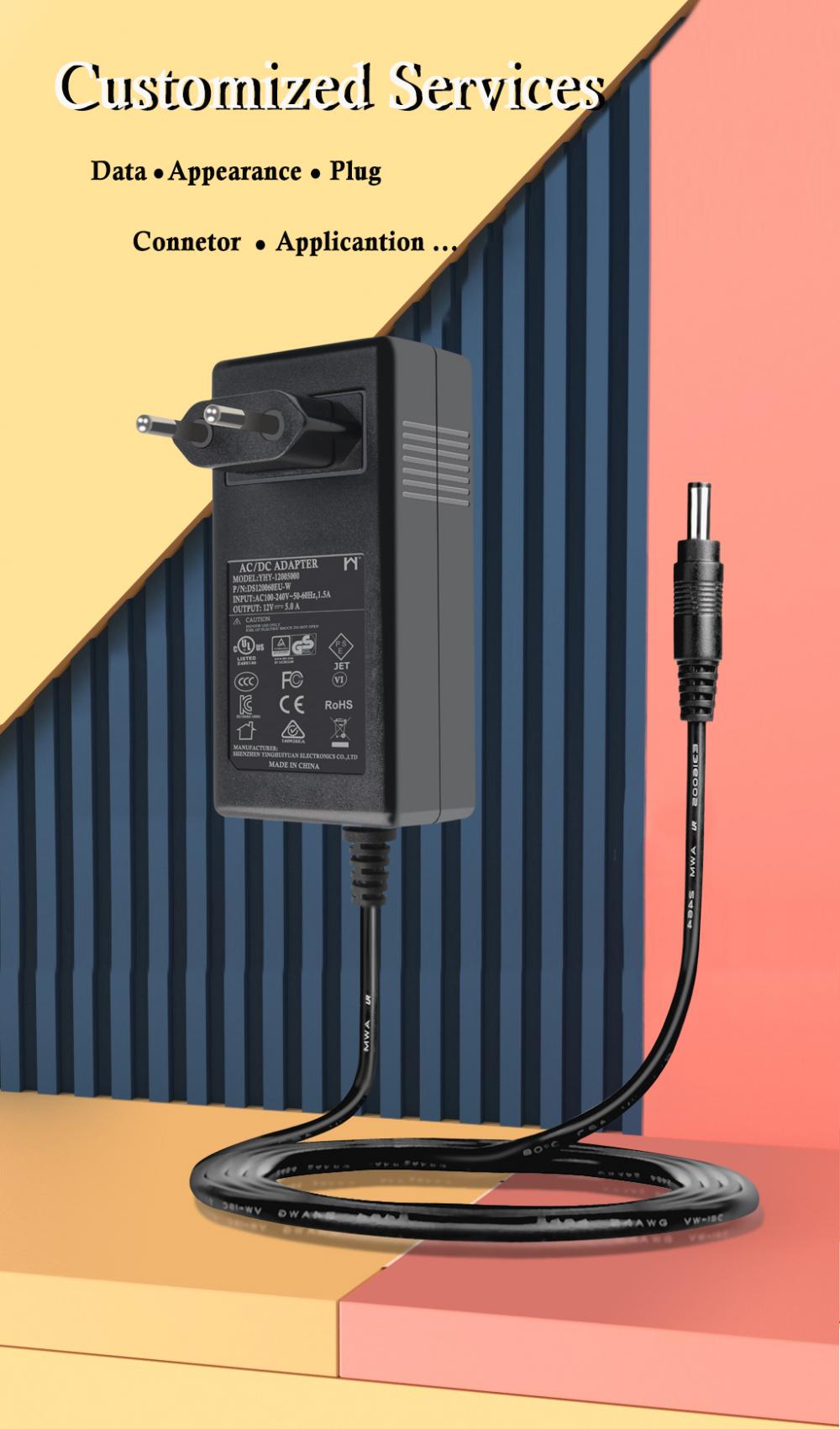

♦ We support semi-custom service , customized DC cable length, Dc connector are available
♦ We provide 3 years warranty
♦ Black and white color available
♦ Support custom nameplates, laser nameplate
♦ Energy efficient and stable 12V DC power supply
♦ Factory direct supply, fast respond within 12 hours after received your inquire/RFQ
|
Specification
|
|
|
|
|
||||
|
Input Voltage Range
|
100-240Vac 50/60Hz
|
|
|
|
||||
|
Input Current(Max)
|
1.5A
|
|
|
|
||||
|
Temperature Coefficient
|
±0.05%/℃
|
|
|
|
||||
|
Voltage Accuracy
|
±2%
|
|
|
|
||||
|
Total Regulation
|
±5%
|
|
|
|
||||
|
Ripple & Noise
|
120mV
|
|
|
|
||||
|
Short Circuit Protection
|
Continuous - hiccup mode
|
|
|
|
||||
|
Over Voltage Protection
|
110-150% of nominal (Cycle input power to reset)
|
|
|
|
||||
|
Efficiency at Average Load
|
88% min
|
|
|
|
||||
|
Operation Temperature
|
0 to ＋60℃, derating linearly to 50% load above 40℃
|
|
|
|
||||
|
Storage Temperature
|
-10 to ＋85℃
|
|
|
|
||||
|
Humidity (non condensing)
|
10-90% RH
|
|
|
|
||||
|
Cooling
|
Convection
|
|
|
|
||||
|
Withstand Voltage
|
Input to Ground 1.5kVAC
Input to Output 3kVAC
(Output is connected to Ground) |
|
|
|
||||
|
Vibration (non condensing)
|
23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
|
|
|
|
||||
|
Shock
|
< 196.1 m/s2 (20G)
|
|
|
|
||||
|
Safety Agency Certifications
|
UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
|
|
|
|
||||
|
DOE Regulation
|
VI
|
|
|
|
||||
|
Off-Load Power Consumption
|
<210mV
|
|
|
|
||||
|
Conducted & Radiated EMI
|
EN55023-B, FCC Class B
|
|
|
|
||||
|
Immunity
|
EN55024
|
|
|
|
||||
|
|
|||||
|
Remark: For 19v 3.42a ac dc adapter(YHY-19003420)
1.Model NO : YHY-XXXYYYYY , "XXX" is for current ,
"YYYYY" is for voltage
2.Input :100-240Vac , 50-60Hz , 1.5A max. 3.Effiency: 88% 4.Certifications: UL FCC CE GS PSE SAA KC RoHS |
|||||
