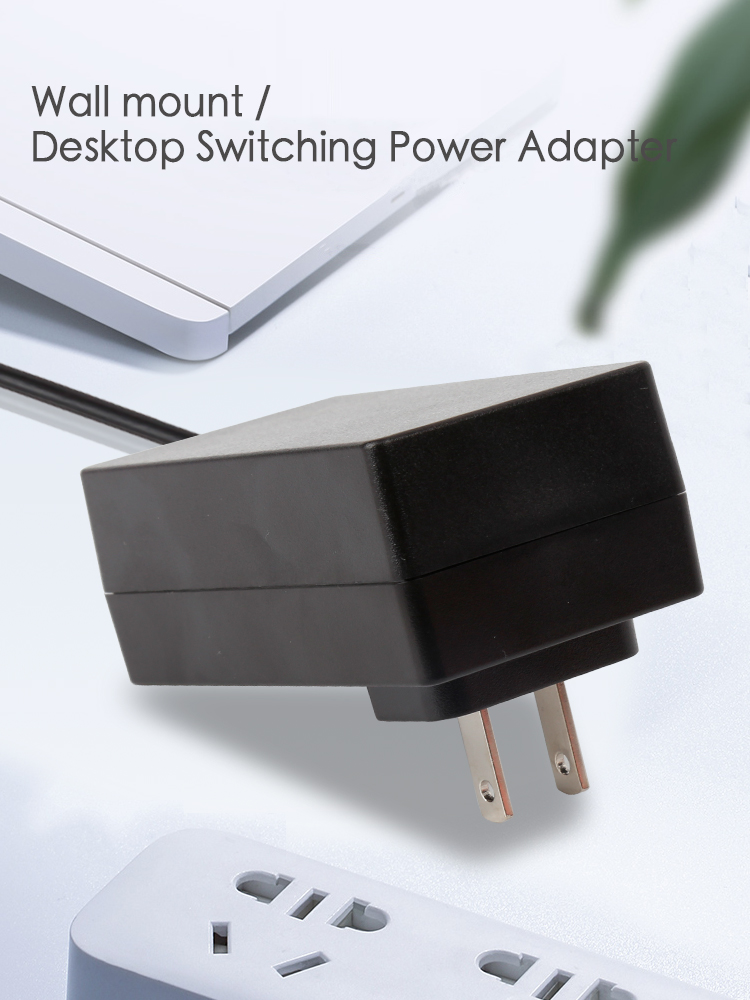

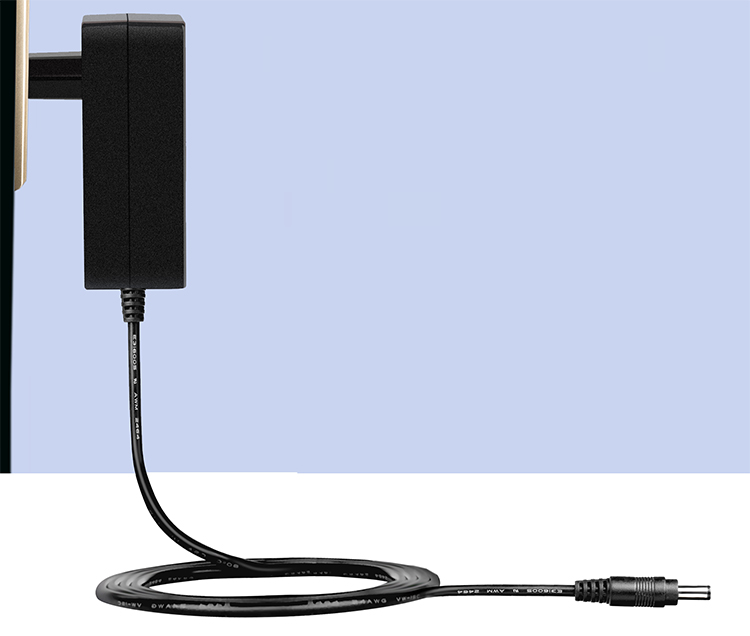

EU US AU UK KC Plug Wall Mount 12v 2a Ac/Dc Power Adapter
YHYadapter wall mount 12v 2a power supply 24w adapter model number YHY-12002000 with low ripple and 83% high efficiency. Support customized DC cable,DC connector and nameplate service.Protection: SCP，OVP，OCP，OTP. Global certifications UL FCC CE GS KC PSE SAA RoHS listed. We have US EU AU UK KC plug version for different countries.When you enquiry pelase tell us your country.
ITE EN62368 Standrad 12v AC/DC power adapter 12V 2A could applicated to multiple 12V DC car powered devices under 24 watts such as tire inflator, car vacuum cleaner, car air fan,car dash cam, car massage cushion,travel coffee maker,car refrigerator etc devices.
Electrical characteristics:
* Rated power: 24W
* Input voltage :100~240Vac(range :90~264Vac, special requirements can do 305Vac and 380Vac input).
* Input current :1.0A Max.
* Input frequency :50/60Hz(range :47~63Hz).
* Output voltage :12V
* Output current :2.0A (Max).
* No-load power loss :0.1W Max.
* Conversion efficiency :83% min.
* Ripple & noise :120mV
* Linear adjustment rate :±1%
* Load adjustment rate :±5%
Output protection function:
* Short circuit protection
* Overvoltage protection
* Over current protection
Reliability:
* High voltage test :3000Vac 60S 5mA Max.
* Insulation resistance :7M ω min
* Leakage current :0.25mA Max.
* Operating temperature :0~40℃
* Storage humidity :5~95% RH
* Aging test :80%~100% load,40±5℃,4 hours.
* Safety standards :UL/EN62368/GB4943(information)
* Electromagnetic compatibility standard :EN55022 Class B/FCC Part 15 Class B
