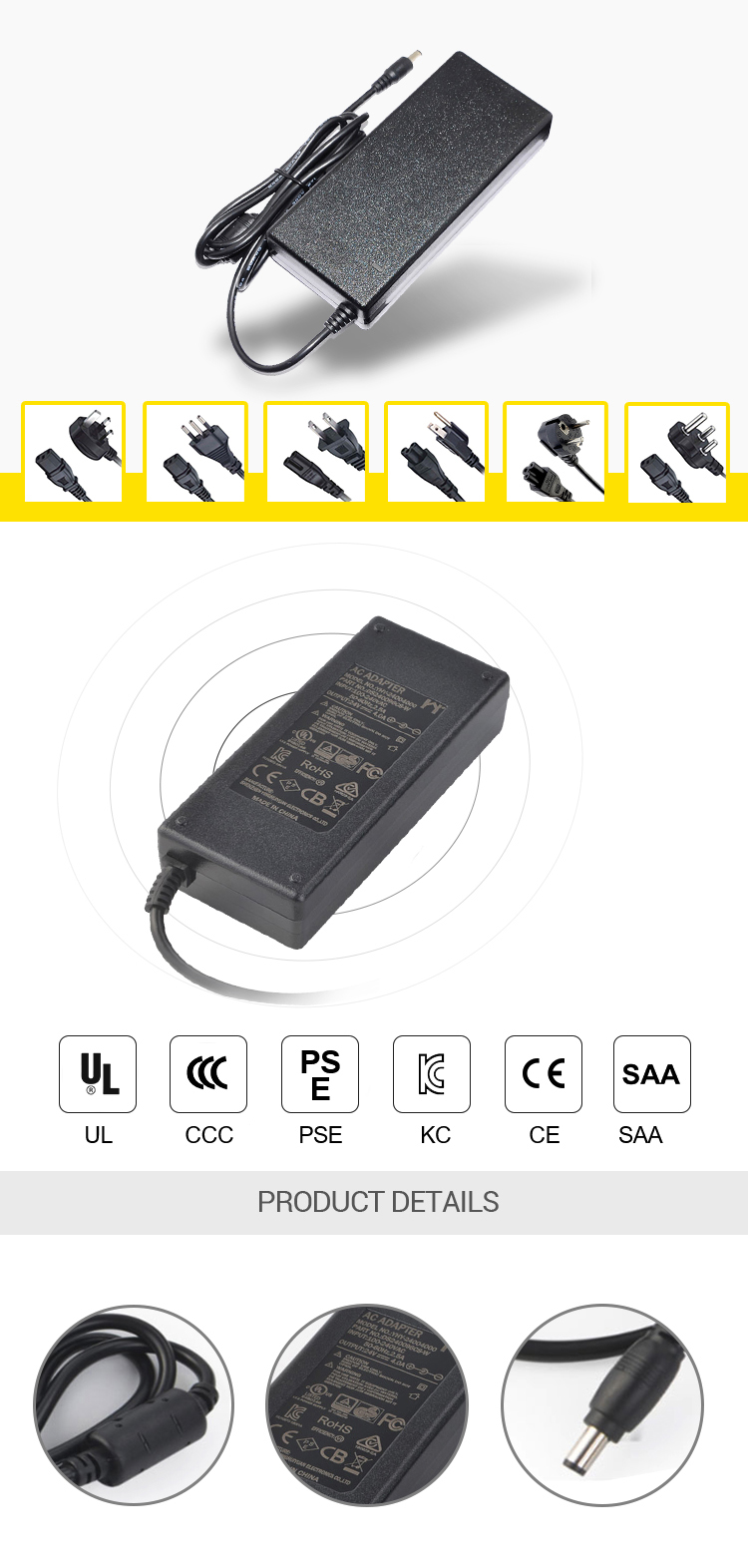

The model YHY-20005000 20v 5a AC DC power adapter for portable power station with universal 100V to 240V AC input voltage range. The 20v switching power transformer is fully with UL/IEC/EN62368 for Industry,Audio and equipped with IEC320-C14/C6/C8 AC input stocket choices.It is also have global certifications listed such as cUL FCC CE GS CB SAA PSE RoHS etc. The External 100w max output power supply and provides 3 years warranty and remarkable after-sale service for our wholesale products.
◆ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ClassⅠI power(without earth pin): IEC320-C8
◆ 3 years Warranty

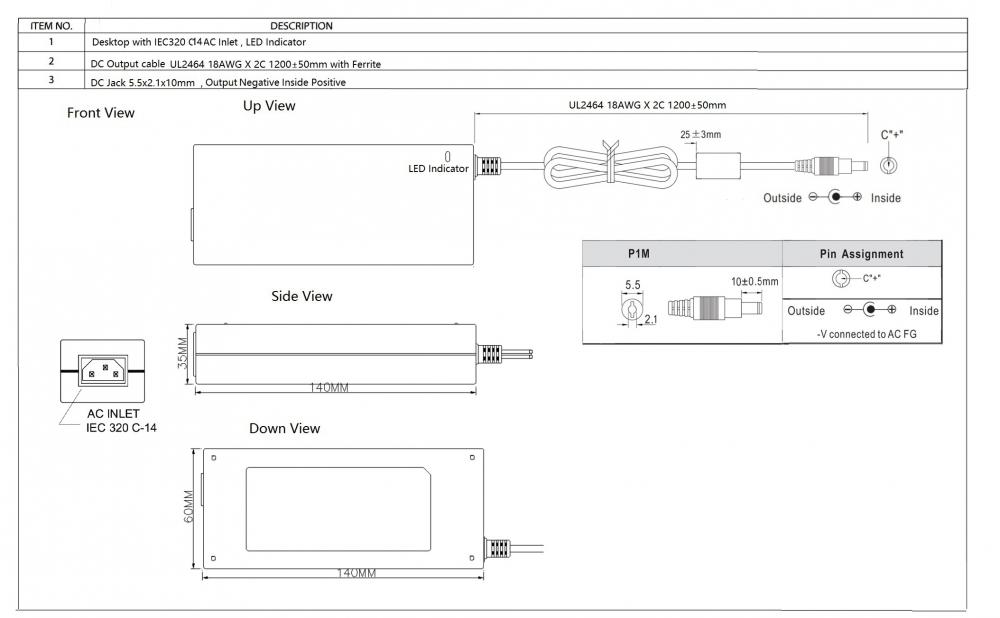

Dimensions LxWxH (mm): 170 x 72 x 40
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<120mV
Accuracy:±1%
Safety Standards: UL62368, UL60950, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS PSE
Color: Black/ White
If you are interested in the product, contact 2bvideo.com for more information for more information
