Description
Our company mainly deals with products and services such as Jichai parts, ShengDong parts, Chidong parts, biogas generators, natural gas generators, gas generator sets, etc. The information is as follows:Supply Jichai Shengdou Parts High Temperature Thermostat 2112.25.00

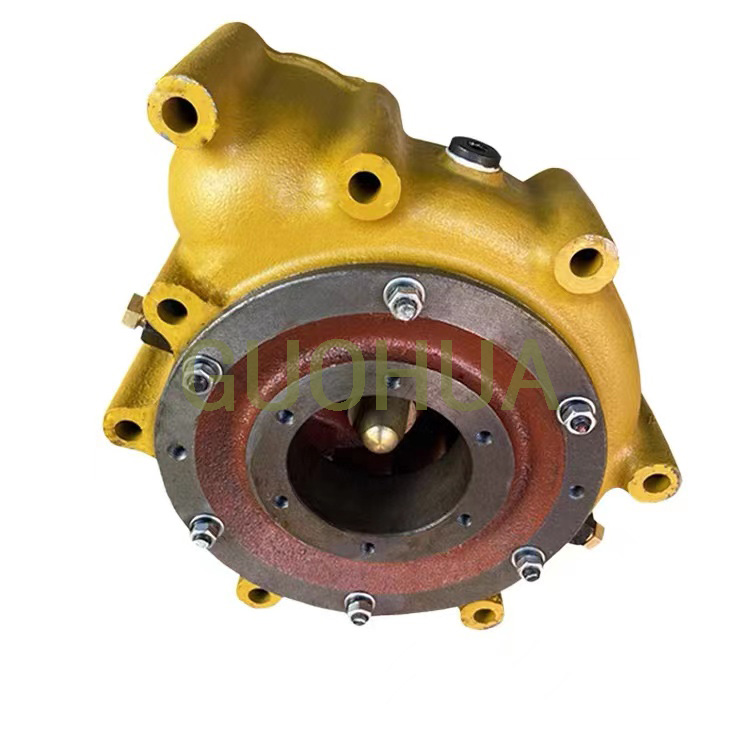

Name： Cooling water pump
Model： 12vb.22.00a
Rotation speed： 2863rpm
Head： 20m
Half-open impeller water pump (half-open vane water pump assembly) type half-open impeller centrifugal type, speed 2863r/min, head 20 meters, displacement greater than or equal to 1000L/min Suitable for models of Chidong z12v190bj series locomotive intercooled water pump. z12v190b 882kw diesel engine, 2000 type Diesel engine. Usually a 12-cylinder V-arrangement 190 diesel engine using 2 of this model water pump, is the high and low temperature water pump are common except for special purpose diesel engine, internal combustion locomotive with 12v190bj1 to bj9 diesel engine intercooled water pump is the model, high temperature water pump is another model, the two installation dimensions are different.
| Spare parts for 12V190 | |||
| No. | Part Name | Part Number | Qty |
| 1 | CYLINDER BLOCK ASSEMBLY | 1 | |
| 1 | |||
| 3 | CYLINDER HEAD ASSEMBLY | 127.03.00 | 12 |
| 4 | OIL SUMP ASSEMBLY | 12VB.04.00B | 1 |
| 5 | PISTON AND CONNECTING ROD ASSEMBLY | 127.05.00 | 12 |
| 6 | CAMSHAFT AND GEAR TRAIN ASSEMBLY | 127.06.00 | 1 |
| 7 | TORSIONAL VIBRATION DAMPER ASSEMBLY | 12VB.07.00 | 1 |
| 8 | INTAKE LINE ASSEMBLY | 127.08.00B | 1 |
| 9 | EXHAUST LINE ASSEMBLY | 127.09.00A | 1 |
| 11 | NATURAL GAS PIPELINE | 127.14.00 | 1 |
| 12 | MEGNETO TRANSMISSION ASSEMBLY | 127.15.00 | 1 |
| 13 | OIL PUMP ASSEMBLY | 12V.17.00C | 1 |
| 14 | OIL FILTER ASSEMBLY | 12VB.18.00B | 1 |
| 15 | CENTRIFUGAL FILTER ASSEMBLY | 12VB.19.00 | 1 |
| 16 | LUBRICATING PIPING | 127.20.00 | 1 |
| 17 | OIL COOLER ASSEMBLY | 12VB.21.00 | 1 |
| 18 | WATER PUMP ASSEMBLY | 12VB.22.00B | 2 |
| 19 | Cooling line system | 127.24.00 | 1 |
| 20 | INTER-COOLER ASSEMBLY | 12V.27.00 | 1 |
| 21 | HAND PRIMING OIL PUMP ASSEMBLY | 12V.29.00 | 1 |
| 25 | OVERSPEED SAFETY DEVICE | 12VB.37J2.00 | 1 |
| 26 | SPECIAL TOOLS | 127.42.00 | 3 |
| 27 | COUPLING ASSEMBLY | 163.44.00 | 1 |
| 29 | ELECTRIC STARTING SYSTEM | 127.46D.00 | 1 |
| 30 | OIL PUMP BRACKET ASSEMBLY | 12VB.48.00 | 1 |
| 31 | CARBURETTER ASSEMBLY | 127.86.00 | 2 |
| 32 | NATURAL GAS PRESSURE REGALATING VALVE | 127.87.00 | 1 |
| 33 | GOVERNOR CONNECTION ASSEMBLY | 127.89.00 | 1 |
| 35 | Electromagnetic valve | 127.91.00 | 1 |
| 36 | TURBOCHARGER ASSEMBLY | 127.20GJ.00EB | 2 |
Guohua is located in Jinan, Shandong province engaged in Jichai parts, 12V190 parts, Jichai 190 diesel engine, ShengDong 190 parts, we have 12 years of sales and experience in products and services related to Jichai parts.
With excellent technology, excellent quality, honest business philosophy, and the spirit of continuous improvement the company has developed rapidly. At the same time of development, the company does not forget to constantly summarize, and constantly optimize the service for customers, with the same enthusiasm to win the extremely high evaluation and favor of new and old customers.
We guarantee for one year or 1500 hours, always provide online support, and send our after-sales service personnel to the site for guidance and repair if necessary.

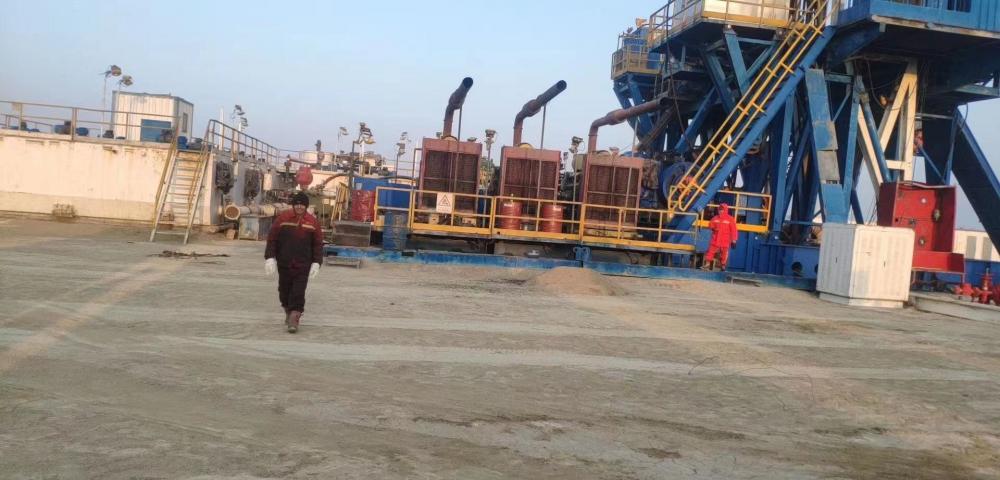

The picture shows our staff guiding the overhaul scene on site in Uzbekistan.
