A1 Fanless Mini PC

3 year ago
72 0
Product details

AMD Ryzen R5 2200U Mini PC


AMD Mini PC with 2xSODIMM DDR4 memory slot up to 32GB. Radeon™ Vega 8 Graphics 8 Core Graphics. Nuc ryzen support 1*RJ45 10/100M/1000M+2.4G/5G AC WiFi&Bluetooth, and support 1*M.2 22x80 SATA/NVME/PCIE3.0x4 SSD+1*2.5'' SATA HDD.  Mini pc amd ryzen 5 with 1*HDMI 2.0 and 1*DP, support dual 4K@60Hz display, support HDR. Amd nuc support SenseMI Technology/DirectX® 12/Wake on lan/ PXE/Auto restart when lost power.


Basic Information:

CPU

AMD Ryzen 5 2200U

TDP

35W

Level 3 Cache

4MB

BIOS

AMI (American Megatrends Inc.)

Chipset

AMD K17.1 FCH, AMD K17.1 IMC

Memory

2 x SO-DIMM Slot, up to 32GB DDR4

Dual Channel, up to DDR4-2400MHz

OS

Windows 10

Audio

Realtek ALC269 @ AMD K17.1 - Audio Processor - High Definition Audio Controller

Network

Realtek 8821CE Wireless PCIe GbE Family Controller

10/100Mbps/1000Mbps BaseT LAN

Video

Radeon™ Vega 8 Graphics 8 Core

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 19V DC In

LED

1 x LED

USB

4 x USB3.1, 2X USB2.0

Display

1 x DP, 1 x HDMI

LAN

1 x RJ45 LAN

Audio

1 x MIC, 1 x SPK

Storage



M.2

1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s

SATA

1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s

Wi-Fi



Module

1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module (WIFI 802.11 b/g/n/ac+BT 4.1)

Antenna

2 x inner RF cables without antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 19V/3.42A

Operating Temperature

0/70 Centigrade

Storage Temperature

-20/+80 Centigrade

Relative Humidity

0%~90% (non-condensing)

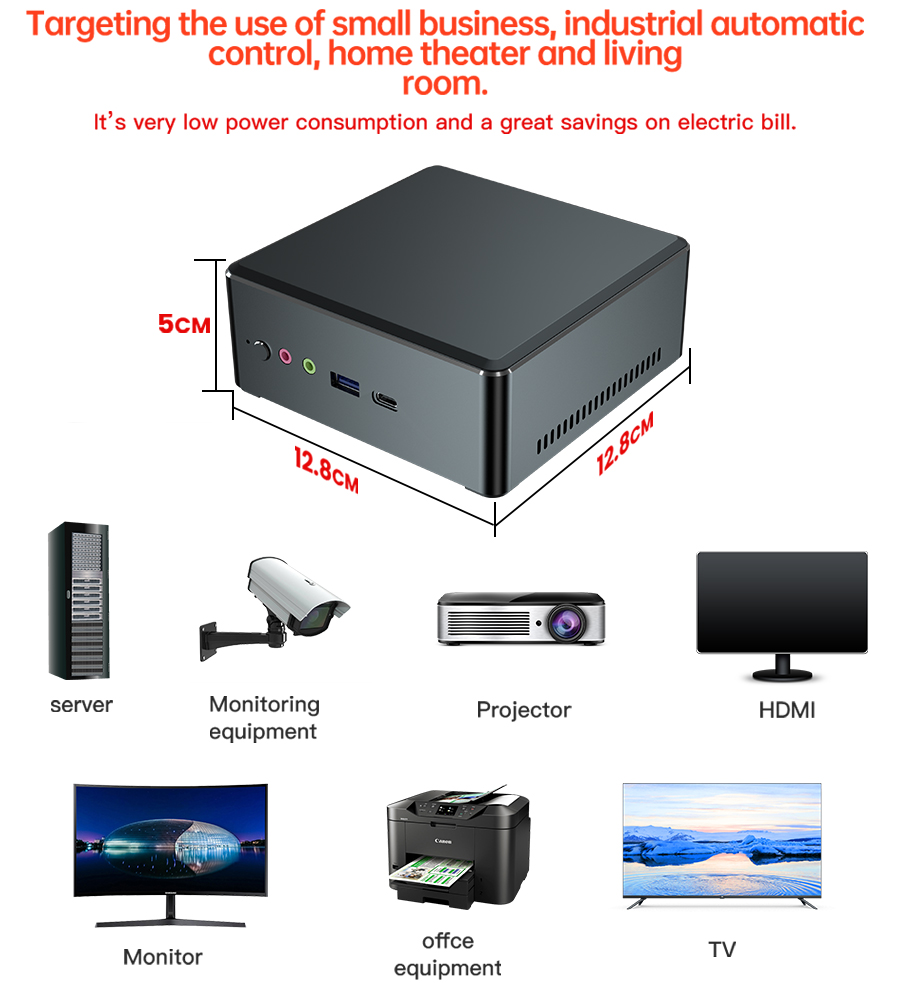

Product Dimension & Details

Size

38.3mm*127.6mm*127.6mm

Weight

Net 1kg, Gross 1.5kg

Shell

Black color aluminum alloy

Cooling Mode

Turbo cooler

Functions

SenseMI Technology/DirectX® 12, PXE, Auto Power on, Wake on LAN

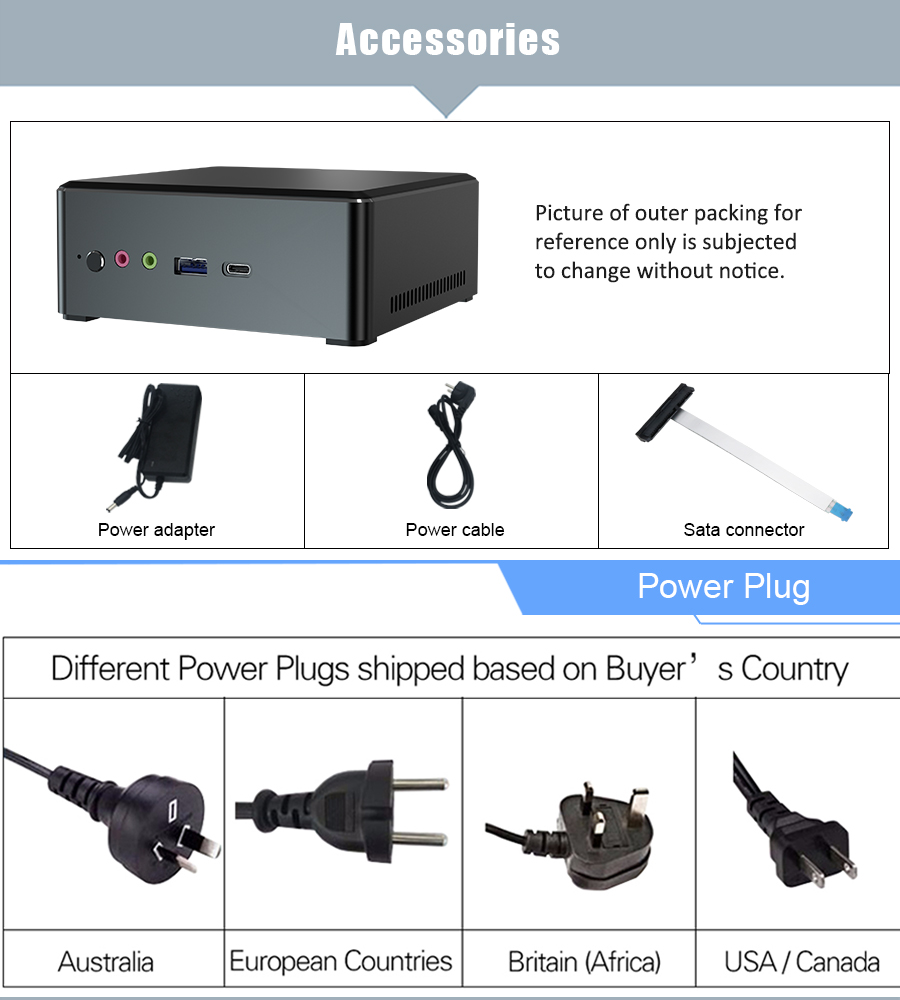

Package Content



Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,

Optional

1xUser Manual, 1xHDMI cable


Ryzen Mini


Amd Ryzen Mini PcAmd Ryzen 5 Mini Pc


Ryzen 5 Mini Pc


4800u Mini PcAsus Pn51 5700u
