Mini computer mainframe is a new type of mainframe in the market between traditional large-scale desktop computers and notebook computers. In the past ten years, intel mini pc hosts have been widely used in medical institutions, hotel systems, educational terminals, POS market, digital signage, commercial display systems, corporate offices, home entertainment and industrial control. Now intel nuc is gradually accepted by users and the market. In addition to the inherent advantages of mini-computer mainframes that are different from traditional mainframes and notebooks, more importantly, in order to meet the needs of more users, major mini-computer mainframe manufacturers strive for excellence. Only by continuously innovating technology and improving the performance of the host can push the mini computer host to a wider application market.
Fan Mini Computer Intel Core i3 8130U DDR4 16GB RAM Specifications:
|
Basic Information: |
|
|
CPU |
Intel Core i3-8130U |
|
TDP |
15W |
|
BOIS |
AMI BIOS, ACPI supported |
|
Chipset |
Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation Intel Processor Fami |
|
Memory |
1* SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
|
OS |
Windows 7/Windows 8/Windows 10/Linux |
|
Audio |
ALC662 sound chip, 6-channel, Intel Panther Point HDA |
|
Network |
RTL8168E PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN |
|
PXE |
Yes |
|
Video |
Refer to CPU |
|
Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x DC In |
|
LED |
2 x LED |
|
USB |
2 x USB2.0, 4 x USB3.0 |
|
Display |
1 x HDMI, 1 x VGA |
|
LAN |
1 x RJ45 Intel Giga LAN |
|
Audio |
1 x MIC, 1 x Audio |
|
Others |
1 x Kensington Lock |
|
Storage |
|
|
MSATA |
2*M-SATA3.0 slot for MSATA SSD, support 6Gb/s, |
|
SATA |
1*SATA3.0 slot for SATA HDD or SSD, support 6Gb/s, |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-half port for Wi-Fi & Bluetooth module |
|
Antenna |
2 x inner RF cables and 2 x external antennas, |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 12V/5A |
|
Operating Temperature |
0/70 Centigrade(32F~140F) |
|
Storage Temperature |
-20/+85 Centigrade |
|
Relative Humidity |
10%~90% (non-condensing) |
|
Product Dimension & Details |
|
|
Size |
130*130*40mm |
|
Weight |
Net 1.0kg, Gross 2.5kg |
|
Shell |
Black color aluminum alloy(any customized color for bulk order) |
|

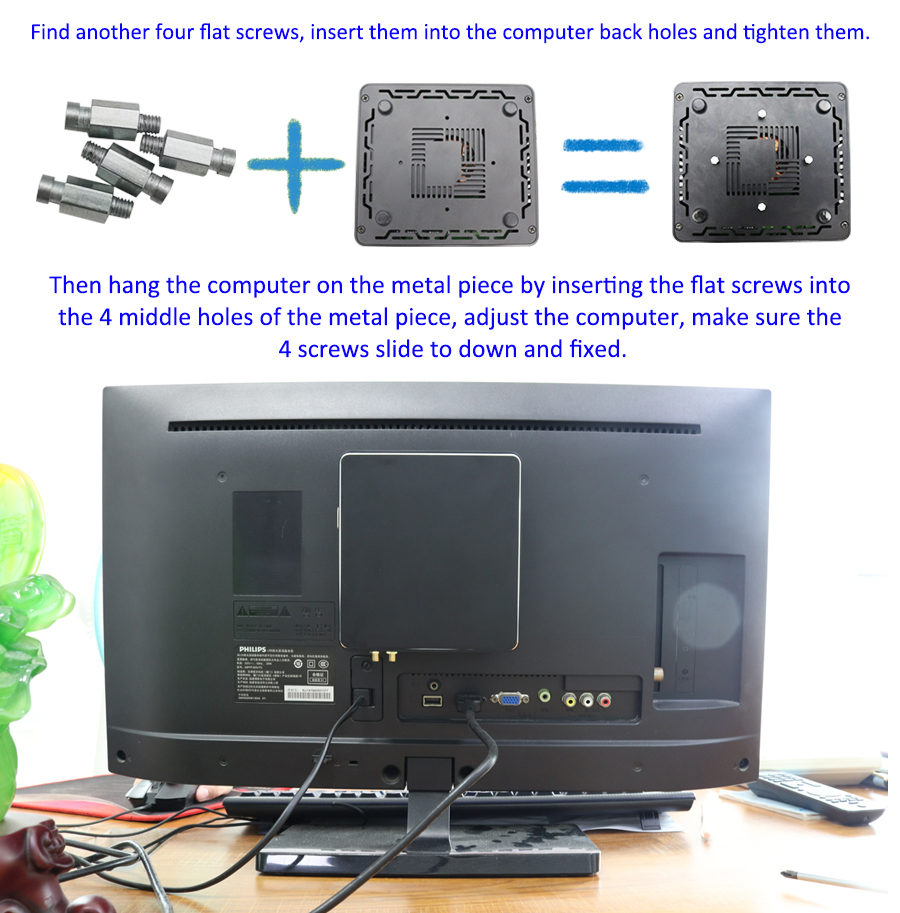

Mounting |
4 Mounting holes on case |
|
Cooling Mode |
Fan |
|
Function |
AWAL, WOL, RTC, |
|
Package Content |
|
|
Standard |
1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag, |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual |
If you are interested in the product, contact 2bvideo.com for more information for more information
