Industrial Mini PC intel nuc i5 6360U DDR4 Desktop industrial mini computer are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Rugged PCs ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
Basic Information:
CPU
Onboard
Intel Core i5-6360u
TDP
15W
Motherboard
14.5
x 14.7 cm
BIOS
American
Megatrends Inc. 5.6.5
Chipset
Intel
Sunrise Point-LP, Intel Skylake-U
Memory
2 x SO-DIMM
DDR3L Slot, Support 4GB/8GB/16GB
DDR3L
1333/1600, LPDDR3 1333/1600
OS
Windows
7/Windows 8/Windows 10/Linux
PXE
YES
Audio
Intel Skylake HDMI @ Intel Sunrise
Point-LP PCH - High Definition Audio Controller
Realtek
ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Network
Onboard
Intel i211 Gigabit Network Connection
10/100Mbps/1000Mbps
BaseT LAN
Video
Intel(R)
Iris(R) Graphics 540
Input/output port
Switch
1 x Power
On/Off Switch
Power
1 x 12V DC
In
LED
2 x LED
USB
4 x USB2.0,
4 x USB3.0
Display
1 x VGA, 1
x HDMI
LAN
2 x RJ45
Intel Giga LAN
COM
6 x COM
RS232(3 line) ports, COM1 COM2 can change to
RS485/422 from BIOS
SIM
1
x embedded SIM card slot onboard
GPIO
1 x GPIO
Audio
1 x MIC, 1
x SPK
Storage
MSATA
1 x M-SATA3.0
slot for MSATA SSD, support 6Gb/s
SATA
1 x SATA3.0
slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module
1 x mini PCIE-half
port for Wi-Fi/Bluetooth module
1 x mini PCIE-full
port for 3G/4G module
Antenna
2 x inner
RF cables and 2 x external antennas
Power and Working Environment
Input
DC100-240V
AC/50-60Hz
Output
DC +12V~+19V,
recommend 12V/5A
Operating
Temperature
-20/+75
Centigrade
Storage
Temperature
-40/+80
Centigrade
Relative
Humidity
0%~90% (non-condensing)

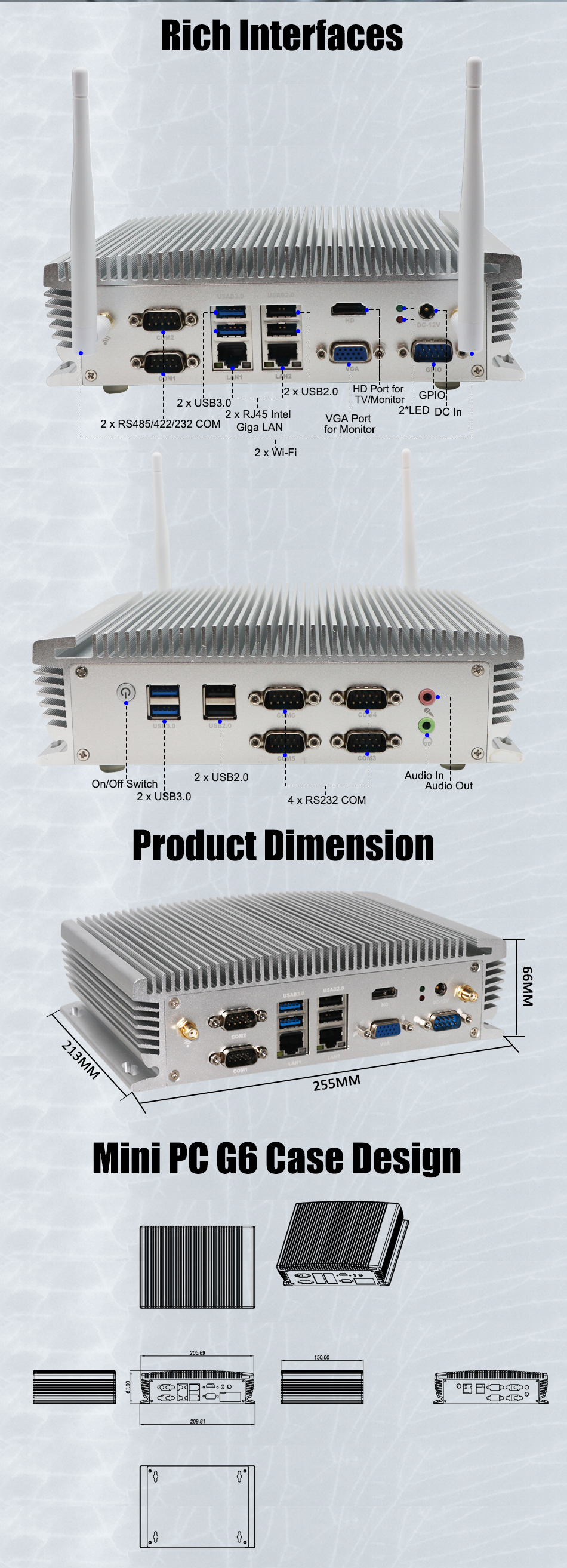

Product Dimension & Details
Size
213*255*66mm
Weight
Net 1.6kg,
Gross 2.5kg
Shell
Silver
color aluminum alloy(any customized color for bulk order)
Mounting

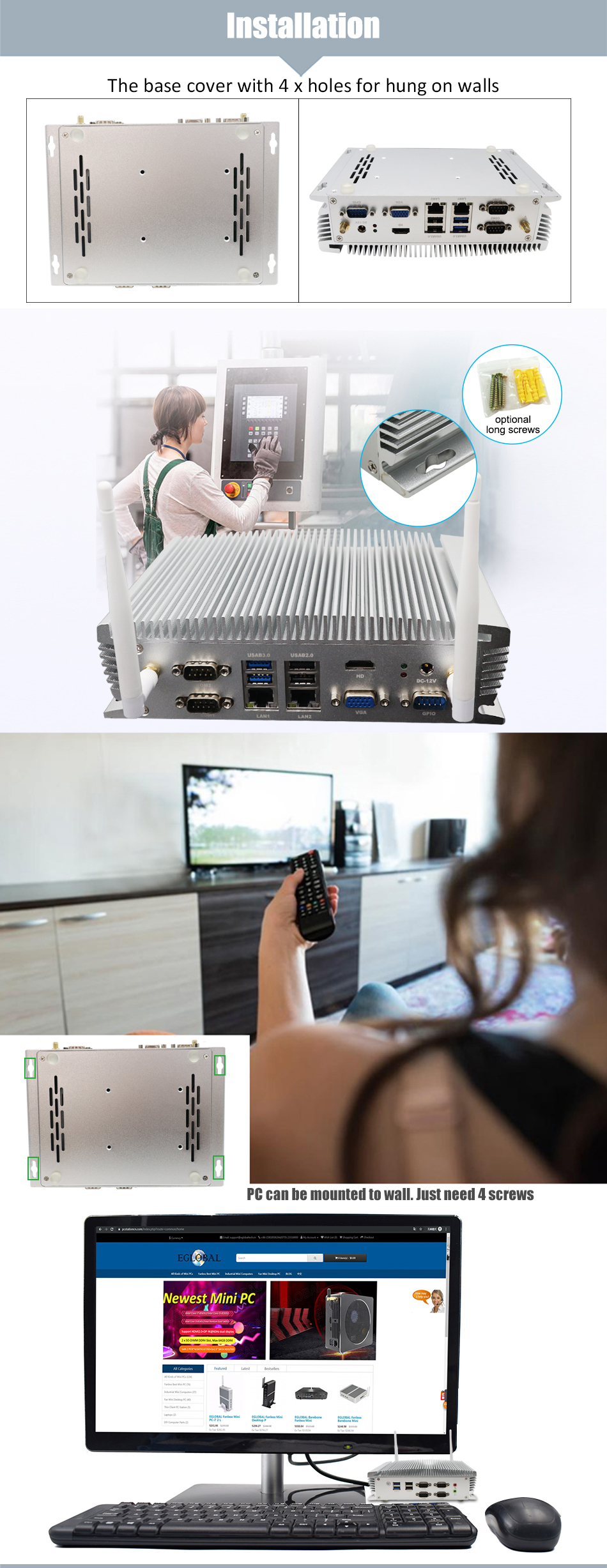

4 Mounting
holes on case
Cooling
Mode
Fanless
Functions
AWAL, Wake
On LAN, RTC

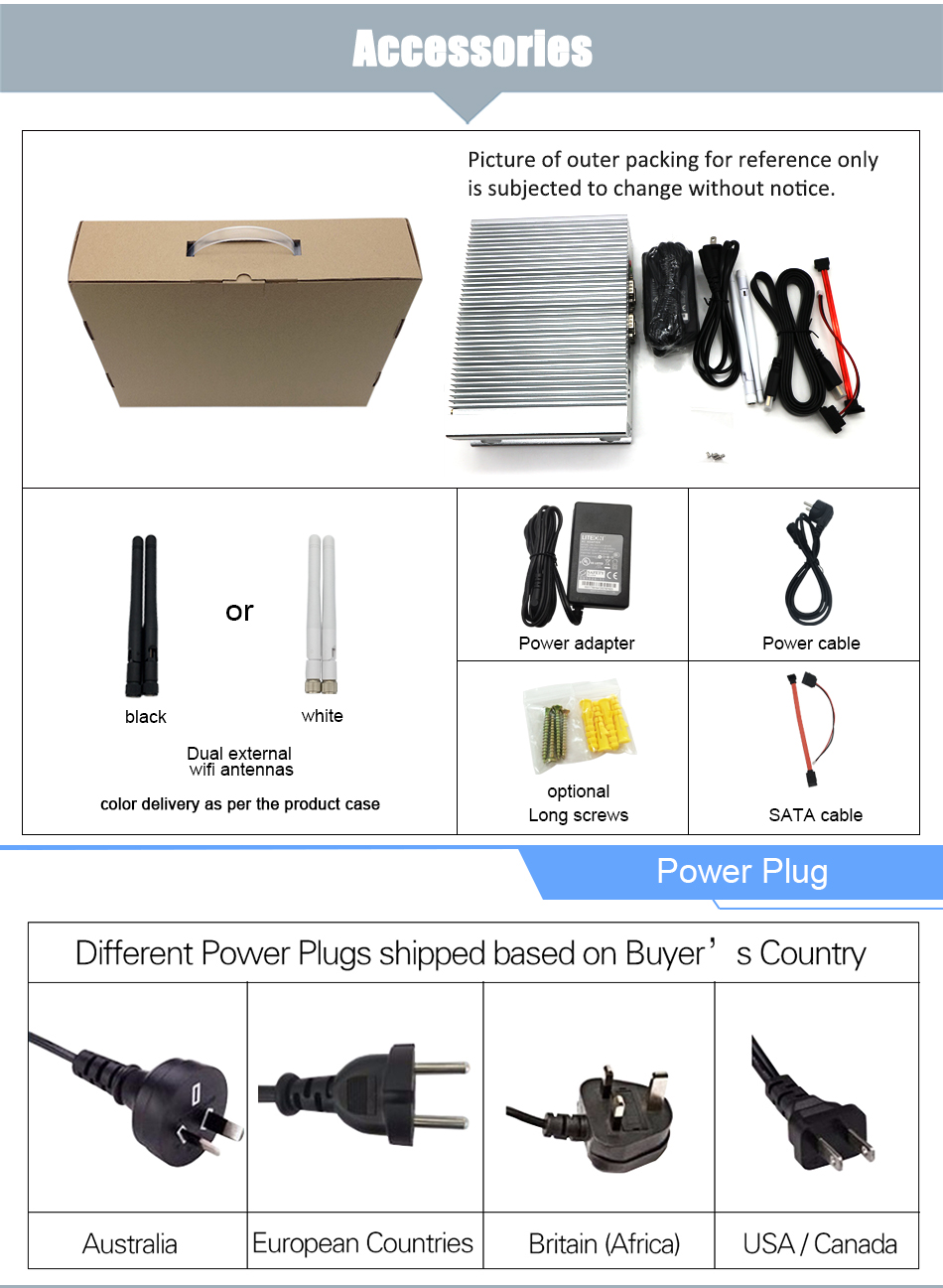

Package Content
Standard
1xMini PC, 1xPower Adapter,
1xPower Cord, 1xScrews Bag
Optional
Wi-Fi antennas, 1xHDMI
cable, 1xUser Manual, 1xLong Screws Bag
Product Highlight

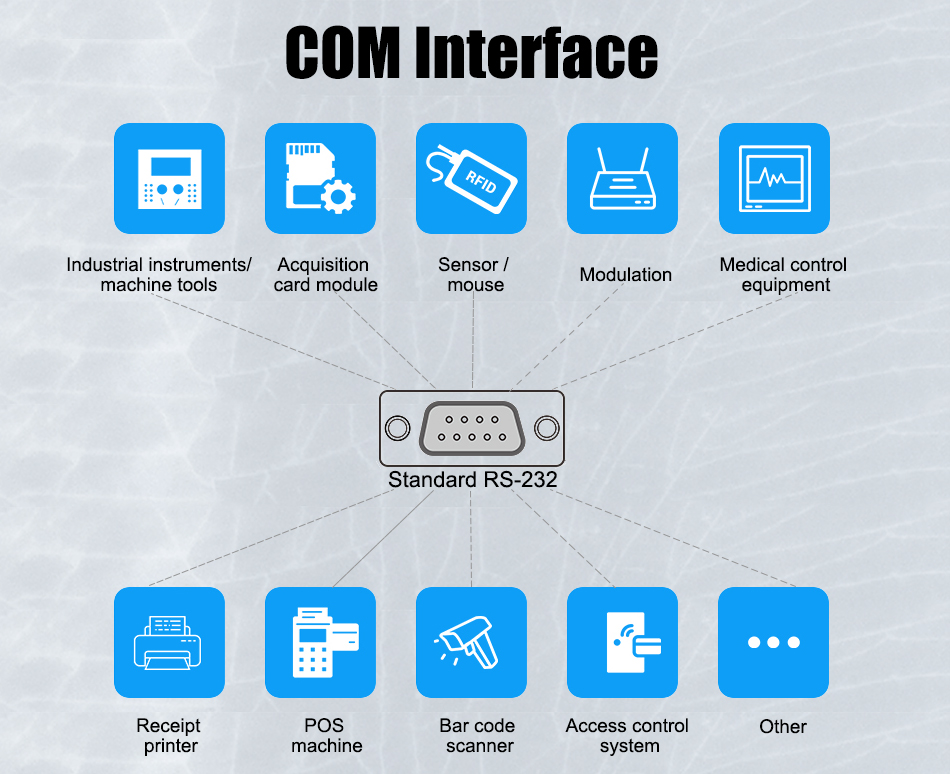

- 2 Intel i211 Gigabit RJ45 LAN and 6 COM(2 COM can change to RS485/422 from BIOS).

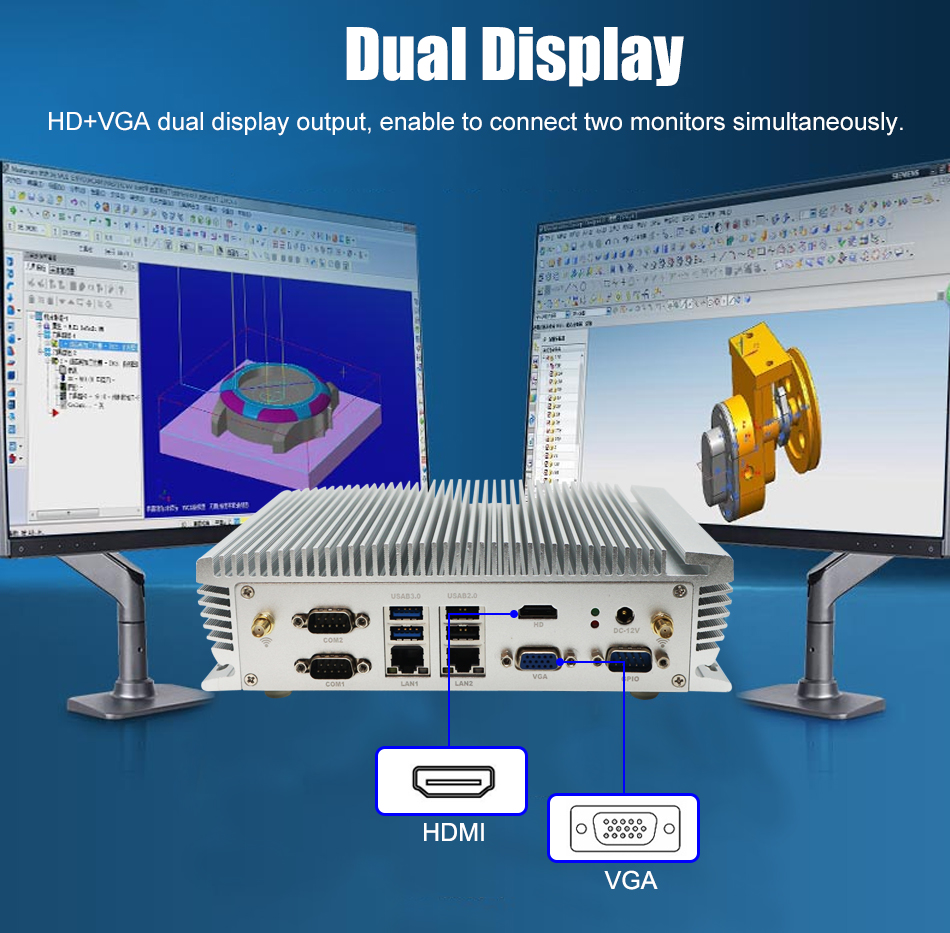

- Support VGA + HDMI dual display output synchronously.

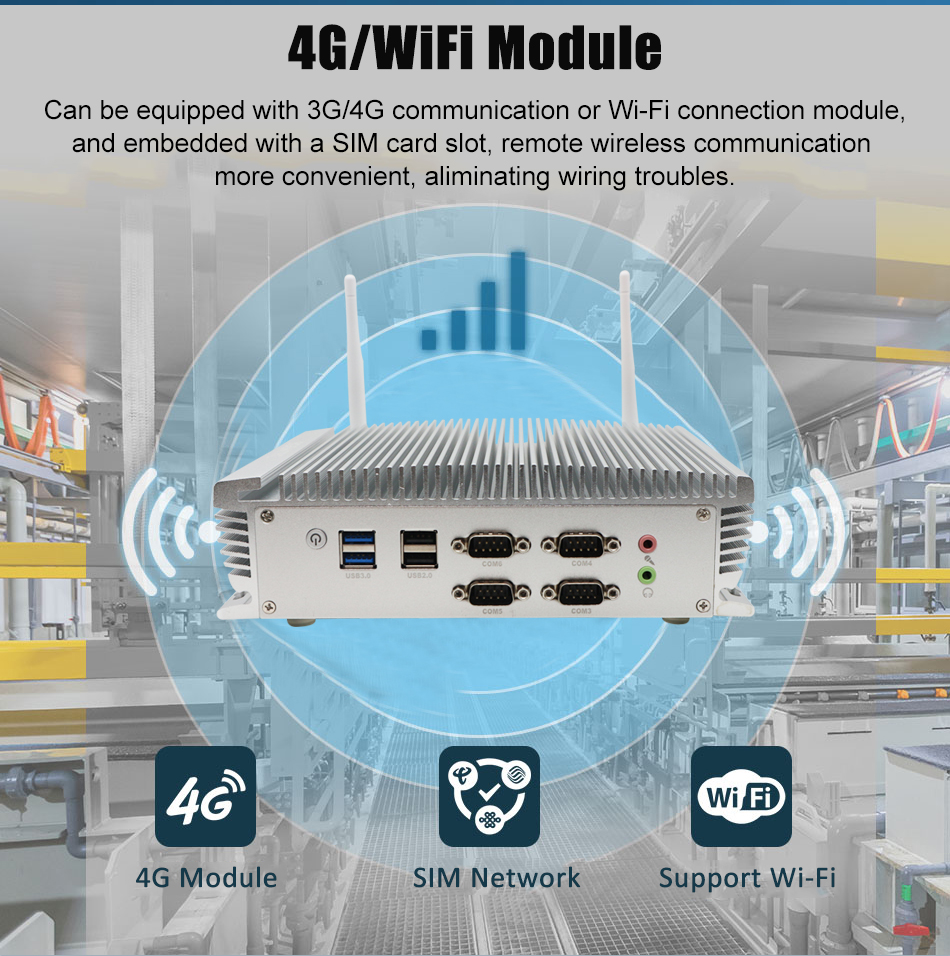

- One embedded SIM card slot onboard for 3G/4G Wi-Fi.

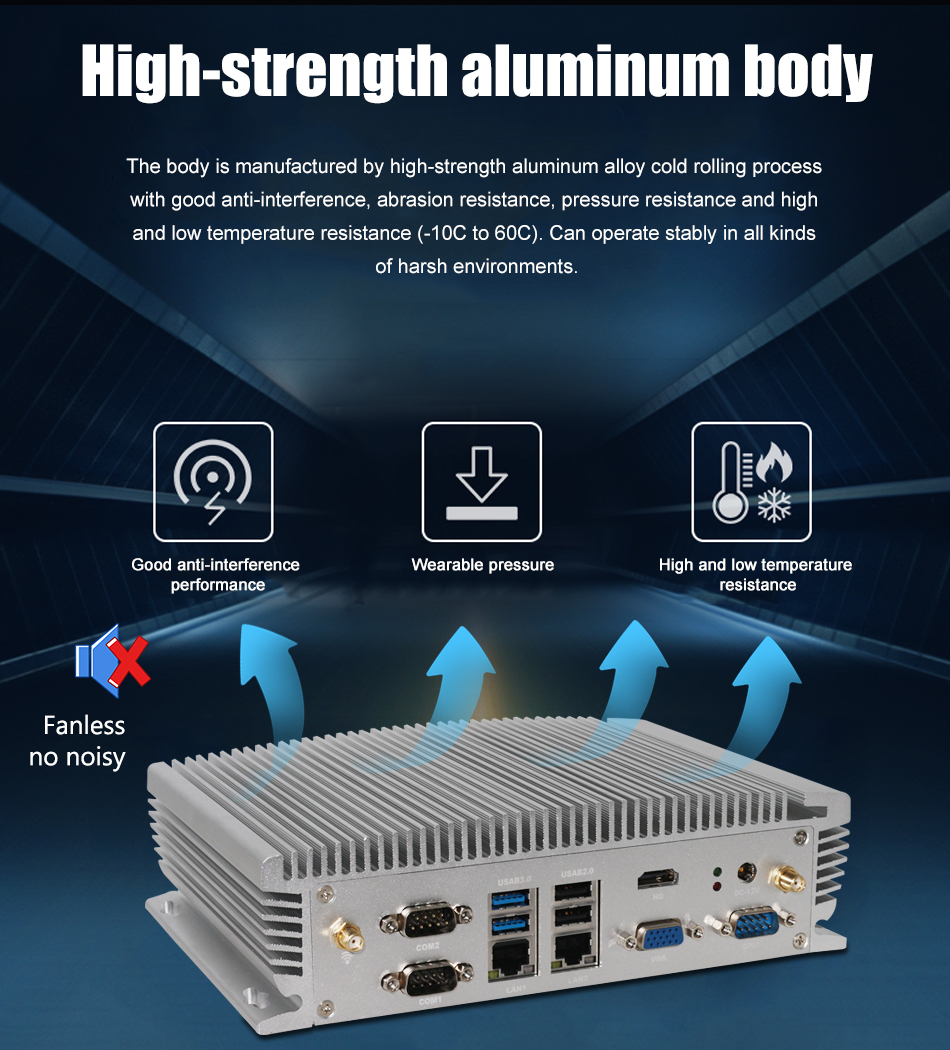

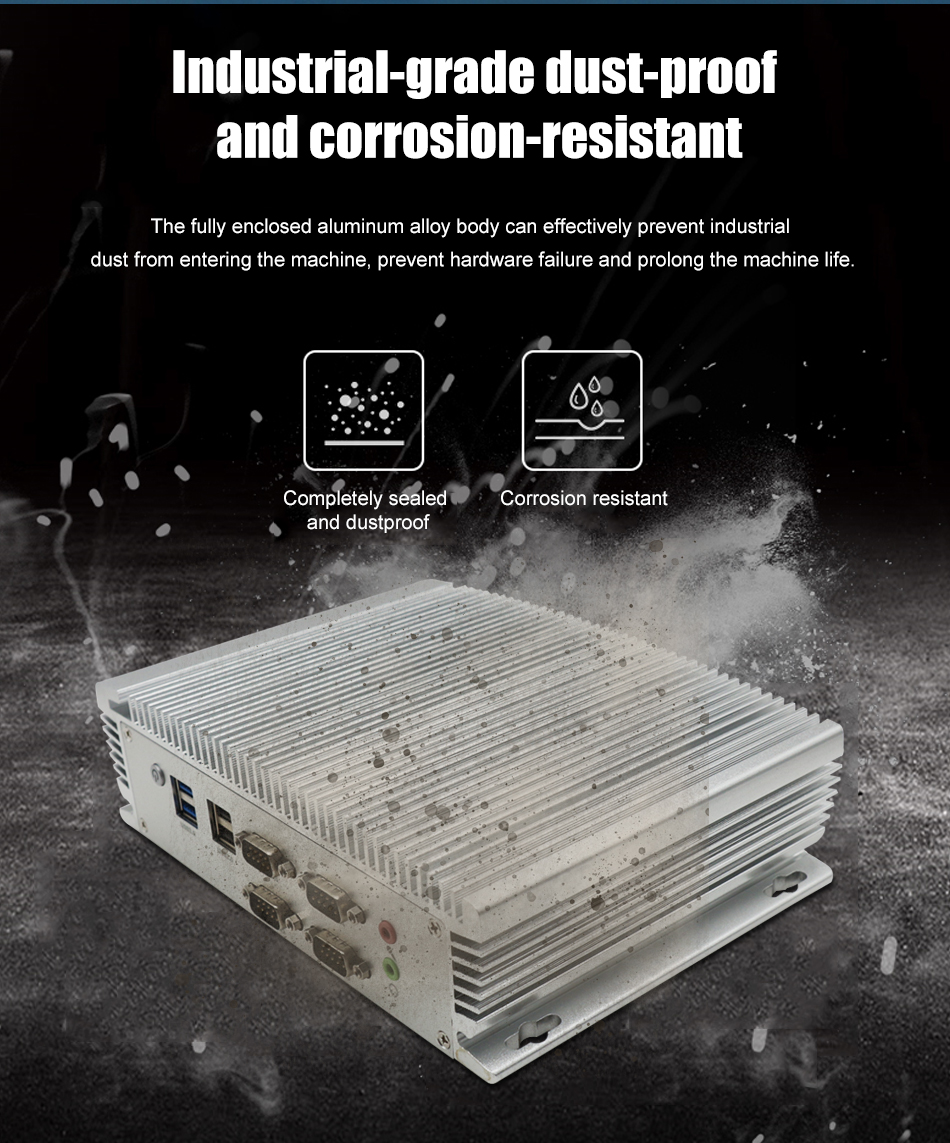

- Full Aluminum Alloy Silver color shell for heat dissipation, Exquisite production craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Low consumption TDP only 15W and can be mounted on the wall.
- Support AWAL, Wake On LAN, RTC functions.
Model: G6-6360U
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U 2.0GHz Max 3.1GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.
