Basic Information:
CPU
Onboard 10th Gen 14nm CPU Comet Lake Intel Core i5-10210U 4 cores 8 threads 1.6GHz up to 4.2GHz 6MB cache TDP 25W Intel UHD Graphics
TDP
25W
Motherboard
140 x 130mm customized size
Chipset
Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5914 - 7th Generation Intel Processor Fami
Memory
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB
DDR4-2133/2400
OS
Windows 10/Linux
PXE
YES
Audio
Intel High Definition Audio Controller
Network
1 x Onboard Intel Ethernet Connection I219-LM
1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
10/100Mbps/1000Mbps BaseT LAN
Video
Intel® UHD Graphics
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x Power In
USB
4 x USB2.0, 4 x USB3.0
SD Card
1 x SD Card Reader
USB-C
1 x Type-C USB3.0
Display
1 x DP, 1 x HDMI 2.0

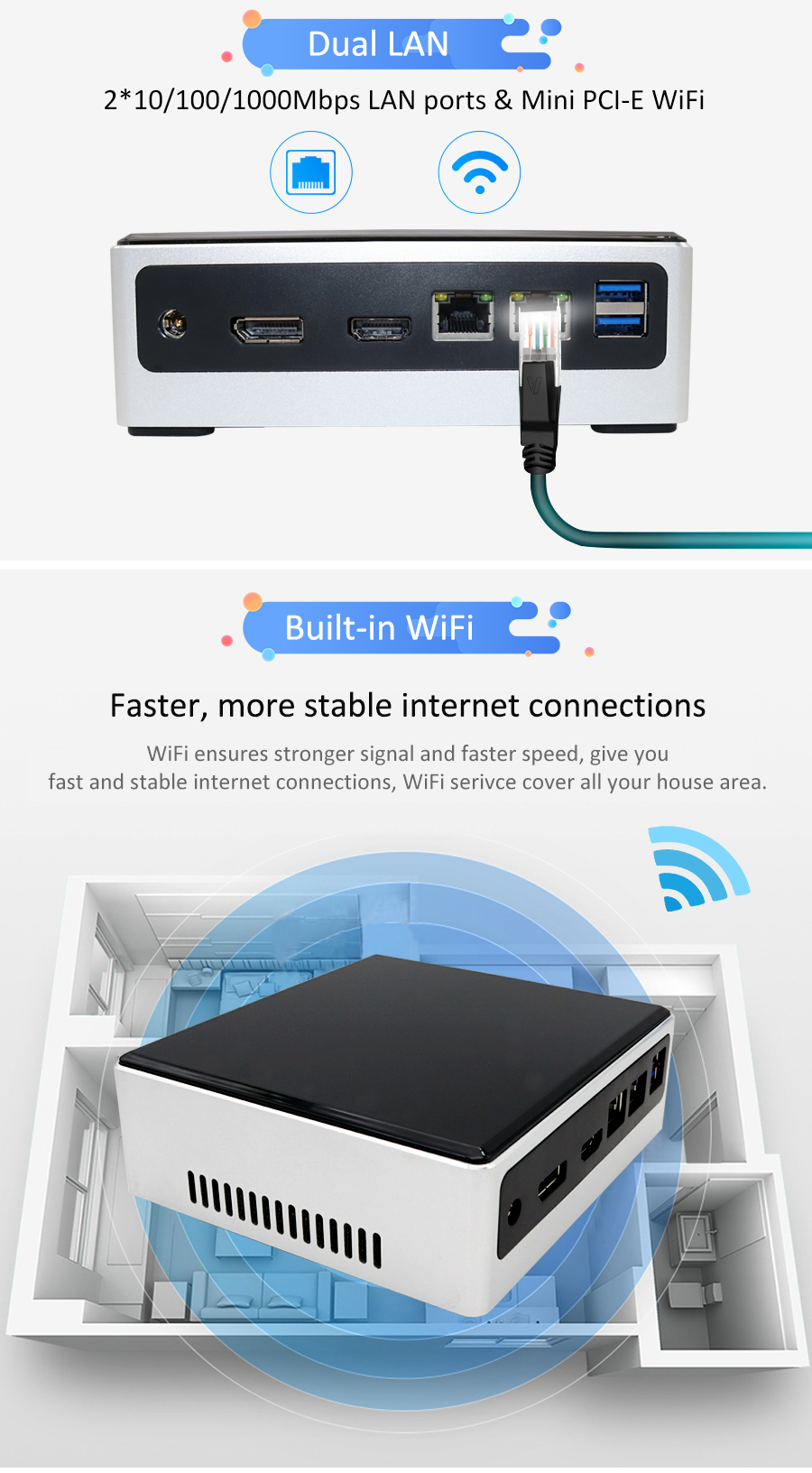

LAN
2 x RJ45 Giga LAN
Audio
1 x MIC, 1 x SPK

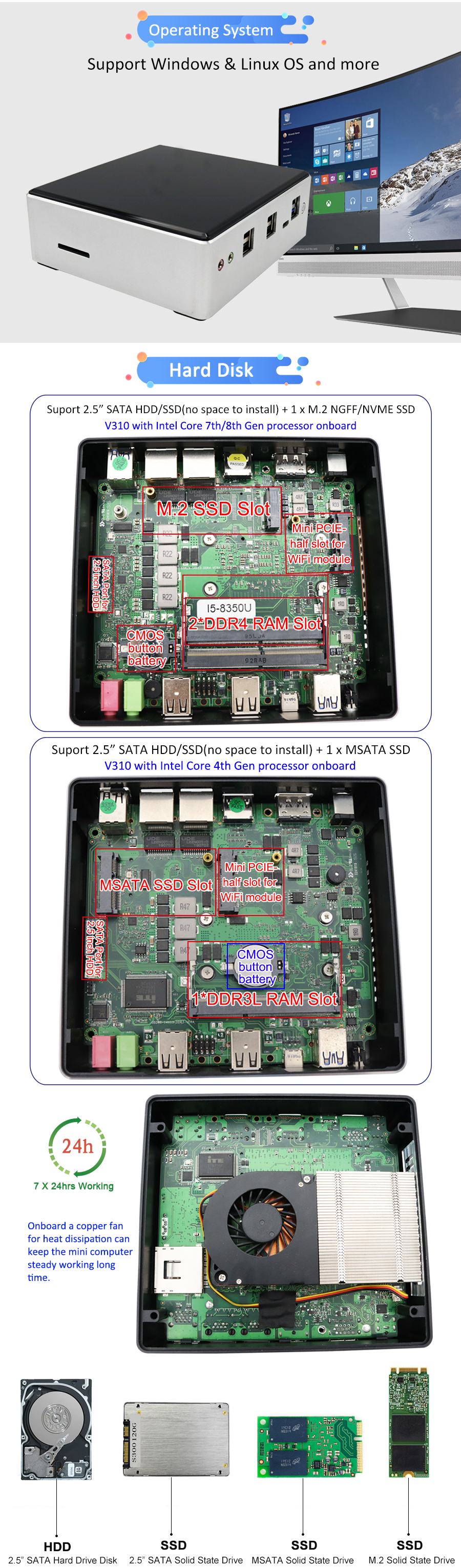

Storage
MSATA
1 x M.2 slot for NGFF/NVME SSD, support 6Gb/s
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install)
Wi-Fi
Module
1 x M.2 NVME/NGFF slot for Wi-Fi module
Antenna
2 x inner RF cables and without external antenna
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +12V~+19V, recommend 12V/5A
Operating Temperature
0/70 Centigrade
Relative Humidity
10%~85%
Product Dimension & Details
Size
137*150*50mm
Weight
Net 0.65kg, Gross 1.15kg
Shell
Black color PVP top and aluminum alloy body
Cooling Mode
With a copper cooling fan
Functions
AWAL, PXE, Wake On LAN, RTC
Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord
Optional
1xHDMI cable, 1xUser Manual
ElieKen 10th i5 10210U Fan Mini PC Specifications:
