Product details

Precision screen printing machine with slide-table//Usage

186

Install movement table ensure operation more safety;
Fit printing soft and thin products such as paper, plastics film etc;
With vacuum working table ensure adsorbing object when printing;
Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
Also widely used in Glass plate, Machine panel screen printing;
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
Suitable for printing sheet-fed adhesiveness sticker;
Suitable for printing water transfer label and heat transfer label through different process;
Max Printing area: 300*500 mm;
High Precision liner guide-way installed to control the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Precision screen printing machine with slide-table//Application

Widely used in Glass printing field;
With UV curing machine, Can finish many UV special printing process for UV package industry.
Suitable for printing Mobile windows ;
Suitable for printing water transfer label and heat transfer label through different process;
The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

Precision screen printing machine with slide-table//Parameters

Max. Printing thickness	150 mm
Air consumption	80 Liter/min
Dimension of working table	500×700 mm
Max printing areas	480×680 mm
Max printing speed	1000 pcs/h
Max frame dimension	700×1050 mm
Stroke of cylinder up and down	160 mm
Stroke of Squeegee	700 mm
Table Precision	0.05 mm
Rang adjustment of table	10 mm
Package size	1280×1030×1590 mm
Gross weight	336 KG

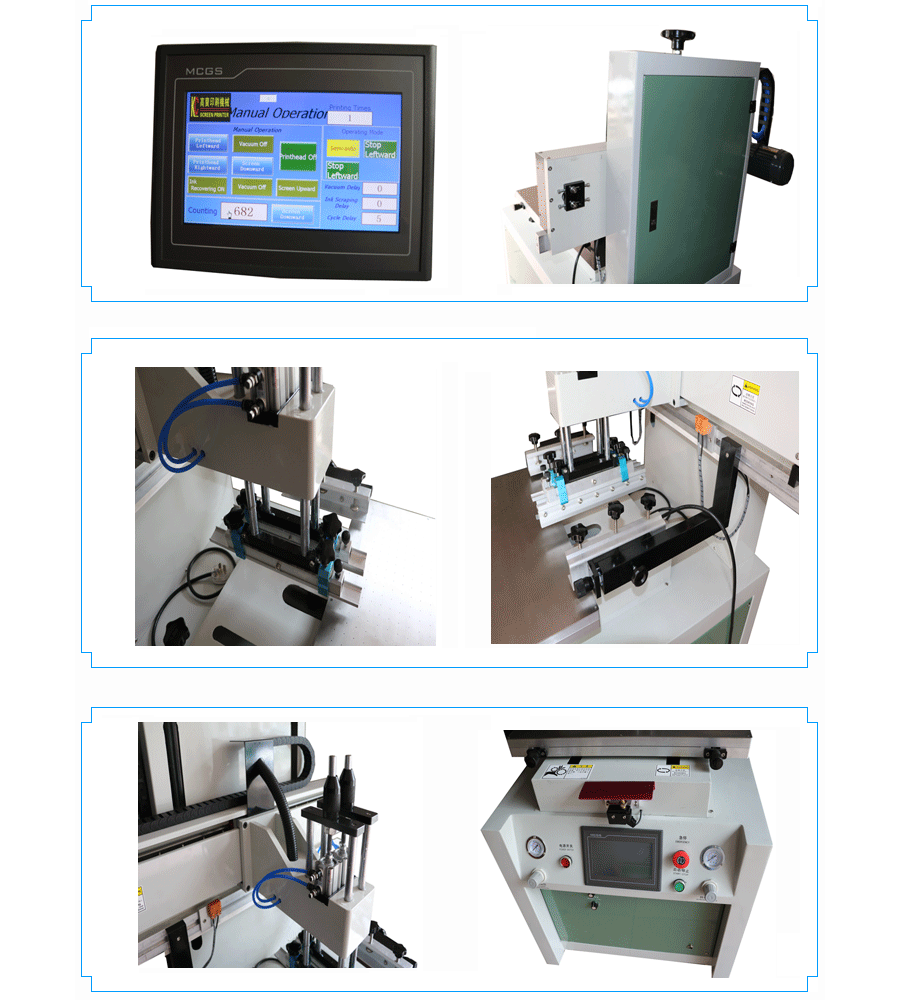

Machine details-Advantage

Working table can be in-out automatically, operation more safe;
High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
Screen Form up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen form Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
Microcomputer program control operations;
4-Digit auto counter; to facilitate the measurement of production efficiency.
