Product Description
Galvalume steel sheet is a material produced by continuous hot-dip galvanizing process with hot-rolled steel strip or cold-rolled steel strip as the substrate.They are mainly used in the fields of construction, household appliances, automobiles, containers, transportation and household industry. Especially in steel structure construction, automobile manufacturing, steel warehouse manufacturing and other industries. Their main characteristics are: strong corrosion resistance, good surface quality, benefit from deep processing, economy and practicality, etc.
Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC. The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy.From the point of view of the degree of coating, the galvanized steel sheet is mainly the zinc plated on the coating, while the coating of the galvalume steel sheet not only has zinc, but also has an extra part of aluminum.Galvalume steel coil (sheet) has better atmospheric corrosion resistance than other steel coil (sheet).
Shandong Huitong Steel Co., Ltd. is a company with more than 10 years of experience. We are located in Liaocheng, one of the largest steel producing areas in China. We have our own production plant. We also deal in galvanized steel coil, etc. Welcome to purchase.
Product Specification
|
Product |
PPGI Prepainted Galvanized Steel Coil |
|
Standard |
ASTM, Bs, EN, DIN, GB, JIS, ASME, etc. |
|
Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S450GD, S550GD;
SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Thickness |
0.12~3.00 mm (cold rolled)，1.20~4.60 mm (hot-rolled) |
|
Width |
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm |
|
Tolerance |
Thickness: ±0.01 mm |
|
Width: ±2 mm |
|
|
Coil ID |
508 mm - 610 mm |
|
Coil weight |
3 Tons - 8 Tons or as client requirement |
|
Zinc coating |
30g/m² - 275g/m² |
|
Spangle |
Big spangle,Regular spangle,Mini spangle,Zero spangle |
|
Surface treatment |
Oil,Passivation, Chromated, Skin-passed, Anti-finger Print |
|
HS code |
72104900.00 |
|
Loading Port |
Tianjin Port, Qingdao Port, Shanghai Port |
|
Payment Term |
L/C or T/T(30% deposit) |
|
Delivery time |
Within 15 workdays after deposit received |
|
Package |
plastic film + water proof paper + steel plate + packing steel strip |
|
Application |
Widely used in road, railway, civil construction, water conservancy construction; all kinds of machinery, electrical appliances, window protection and aquaculture, etc. |
Mechanical properties of galvanized steel
| Usage | Grade | Yield strength(Mpa) | Tensile strength(Mpa) |
|
Punching galvnaized steel |
DC51D+Z | - |
270-500 |
|
DC52D+Z |
140-300 |
270-420 |
|
|
DC53D+Z |
140-260 | 270-380 | |
|
Structure galvanized steel |
S280GD+Z |
≥280 |
≥360 |
|
S350GD+Z |
≥350 |
≥420 |
|
|
S550GD+Z |
≥550 |
≥560 |

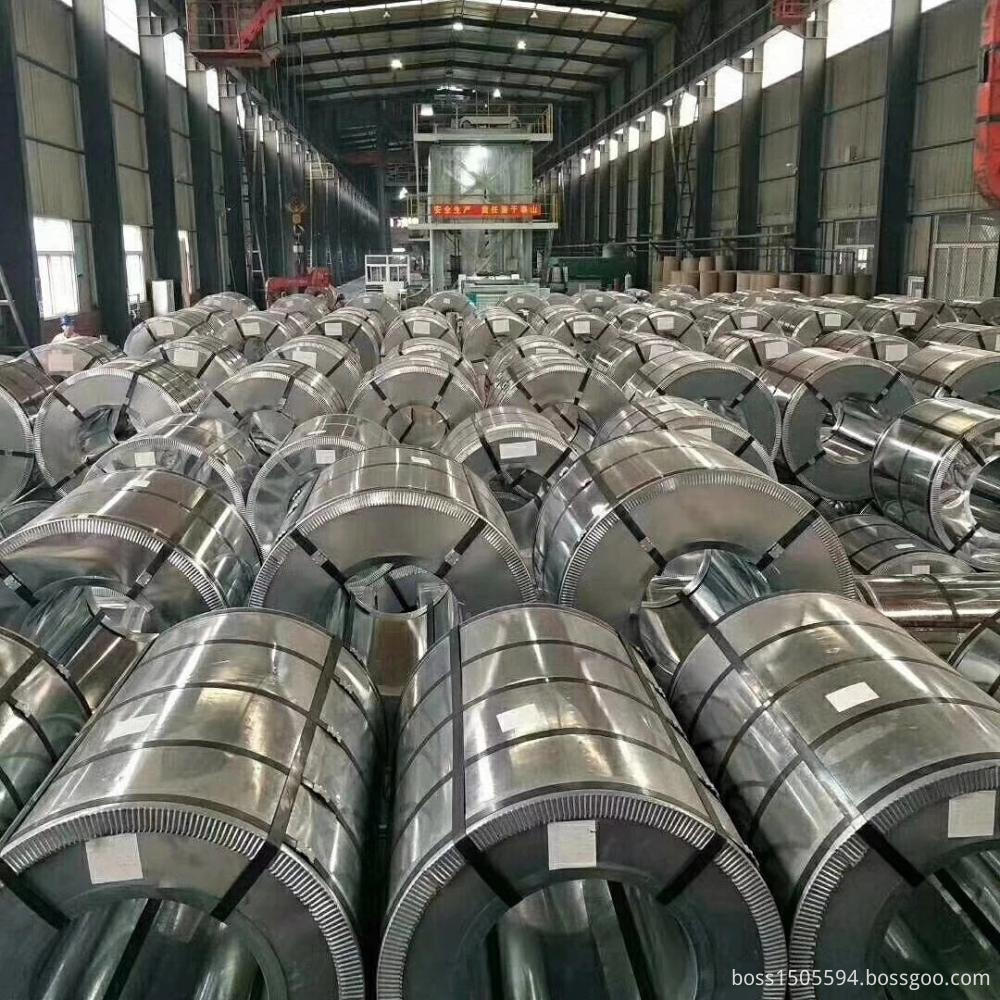

Product Display
Packaging And Transportation
We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Weight of zinc film, Color, Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
FAQ
Q: Who and where are you?
Shandong Huitong Steel Co., Ltd. is a large steel production enterprise. Our main production base is located at Liaocheng city, shandong province, China.
Q: What kind of metal material does your company do?
Our production scope involves seamless steel pipes, galvanized steel products, carbon steel plate, corrugated roofing sheet, color coated roll and other steels.
Q: What are the advantages in price and quality?
To offer good quality and competitive price is our company principle. We can offer our customer good and reasonable price.
Q: OEM Service is acceptable?
Yes, OEM severvice is available.
Q: Payment term and Lead time
A: Payment term is depending on target market condition,order amount,shipment schedule.., or 30% T/T in advance ,balance will be paid against BL copy or LC at sight.
B: Delivery time: for most of pipe,plate, coil.. the lead time is at around7- 15days. For larger order plate, it is subject to the
steel plant production order, but. Base on our larger purchasing oder from steel mill, we can assure our customer the delivery date is soon.
