Features

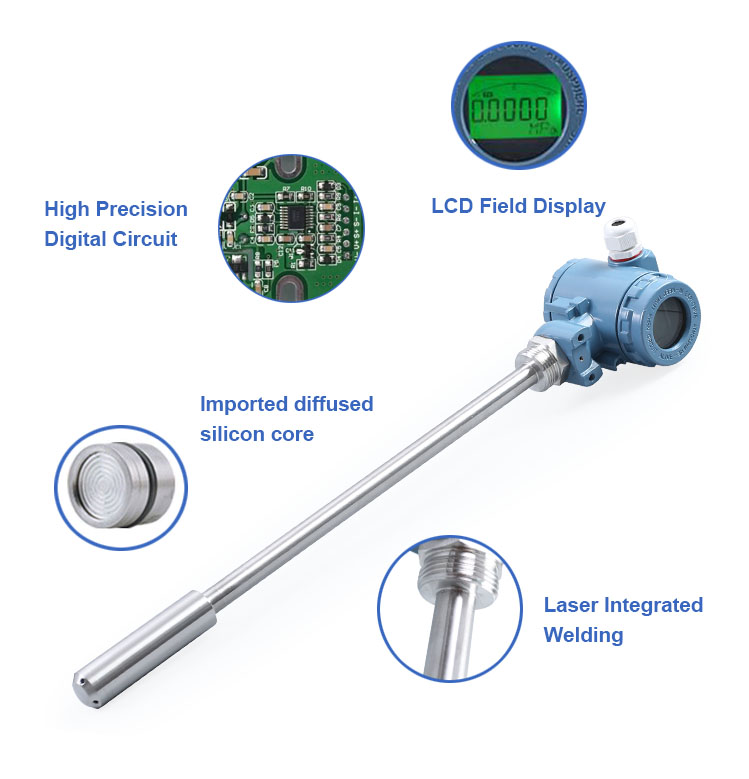

Piezoresistive silicon chip employed
MEMS technology
Excellent long term stability
Hart protocol selectable
CE certificate
Typical Application
Depth and level measurement in
Wells
Reservoirs
Lakes
Rivers
Sewage treatment plant
Water tank
Ground water monitoring
Surface water monitoring
|
Pressure range |
|||
|
Pressure range |
1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O |
||
|
Output signal |
|||
|
Output |
4 to 20mA | 1 to 5V | 0 to 5V |
||
|
Specification |
|||
|
Accuracy (linearity, repeatability and hysteresis) |
±0.5%F.S. (Typical) |
||
|
Overpressure |
150%F.S. |
||
|
Excitation |
24VDC | 12VDC |
||
|
Operating temp. |
-20ºC - 85ºC |
||
|
Medium temp. |
-20ºC - 85ºC |
||
|
Storage temp. |
-40ºC - 125ºC |
||
|
Zero temp. coefficient |
±1.5%F.S.(@0ºC - 85ºC) |
||
|
Span temp. coefficient |
±1.5%F.S.(@0ºC - 85ºC) |
||
|
Long term stability |
≤0.2%F.S.S/year |
||
|
Protection |
IP68 |
||
If you are interested in the product, contact 2bvideo.com for more information for more information
