Product details

ultrasonic flow meters are widely used in a variety of industrial applications – and are ideal for many applications because they measure flow using sound and are non-invasive. Ultrasonic flow meters are mostly used in oil and gas industries. They are also used in chemical, pharmaceutical, food and beverage, metal, mining, pulp and paper and wastewater industries.

The ultrasonic flowmeter adopts a non-contact measurement method, which is accurate and reliable. It can be continuously measured for a long time.

Product details

I. Overview

Ultrasonic flowmeter is a combination of flow measurement technology and low-cost toilet, which can be directly installed at the measuring point. The flow of the ultrasonic flowmeter has no moving parts and needs no daily maintenance. The microprocessor on the instrument provides accurate digital signal coding and cross-correlation detection procedures, which can provide long-term drift-free measurement. The measurable fluid is almost all clean and uniform liquid.

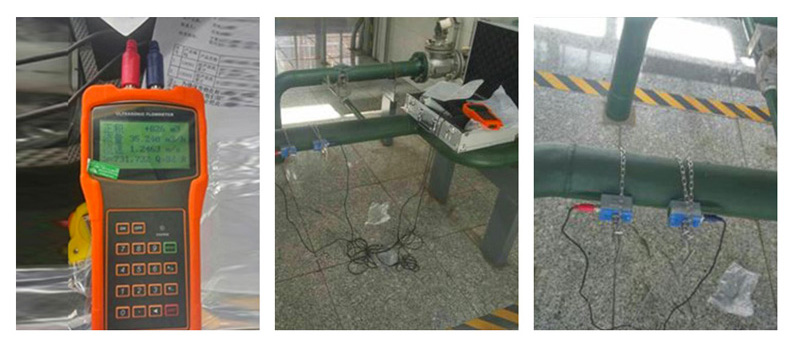

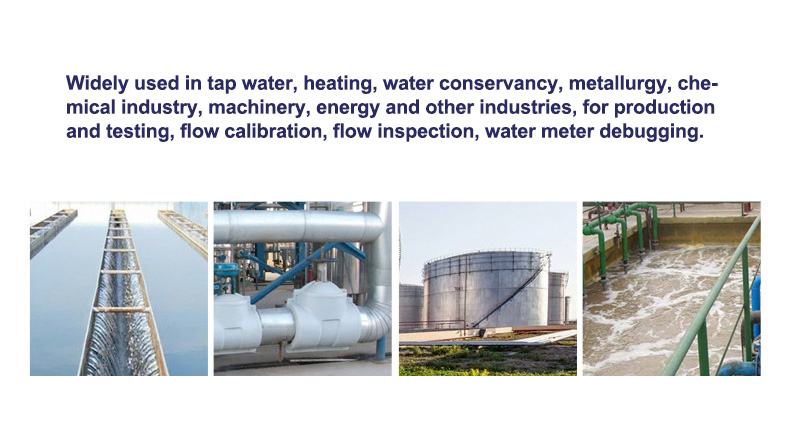

2. Application

(1). Drinking water, River water, sea water, groundwater, cooling water, high temperature water and sewage;

(2). Lubricating oil, diesel oil and fuel oil;

(3). Chemical liquids;

(4). Other homogeneous fluids.

3. Characteristics

(1). Various power supply modes: a single 3.6V lithium battery can work for 6 years, using two-wire system of 4-20mA, RS232, RS485 output type, and can work normally without batteries;

(2). The measurement content is rich: it can display accumulative flow, accumulative heat, instantaneous flow, instantaneous heat, supply and return water temperature, current temperature difference, fault operation time, working state, date, time, etc.

(3). High level of protection: protection level can reach IP68, can be immersed in underwater 2 meters work;

(4). Structural firmness: The measuring pipe section adopts precision casting technology, no leakage, no pressure loss and movable parts, 10 years maintenance-free design.

(5). Humanized design: magnetic rod operation, internal double keys, easy to operate; fault self-diagnosis.

(6). Ordinary metal pipes such as carbon steel, stainless steel, cast iron, copper, aluminium, etc.

(7). Other non-metallic pipelines such as PVC, PR, FRP, cement and other pipelines.

ITEM		Description
Main unit	Accuracy	Better than ±1%
	Repeatability	Better than 0.2%
	Measurement Period	500ms
	Display	LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.
	Output	Analogue output: 4-20mA or 0-20mA current output. Impedance 0~1kW. Accuracy 0.1%.
		OCT output: Frequency signal (1~9999HZ)
		Relay output: over 20 source signal (no signal, reverse flow etc.)
		RS485 serial port
	Input	Three analogue input
	Input	Three-wire PT100 resistor input (optional)
	Other functions	Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days
pipe	material	Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
	Size	15-6000mm

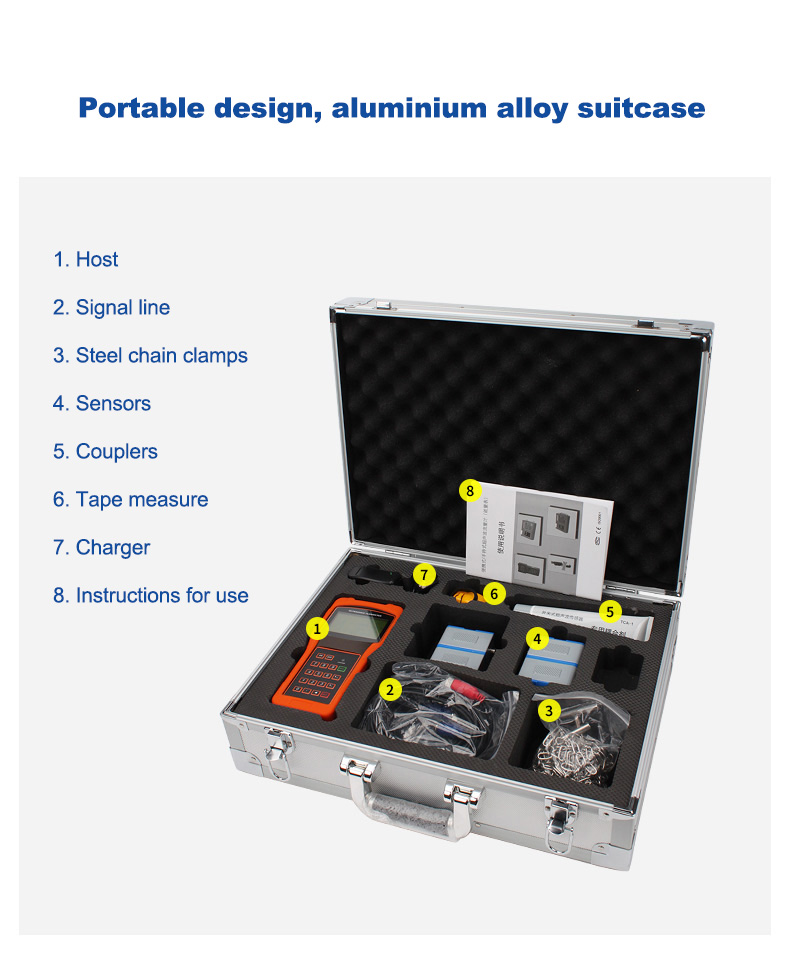

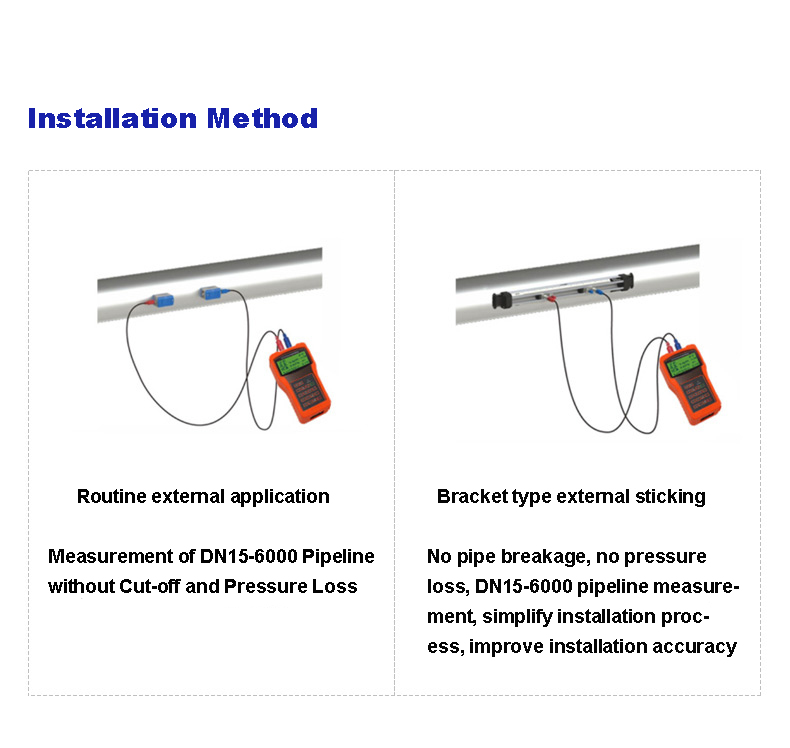

	Straight pipe section	In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)
Liquid	Types	Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid
	Temperature	Standard: -30℃ - 90℃ ,High-temperature:-30℃ - 160℃
	Turbidity	Less than 10000ppm, with a little bubble
	Flow Direction	Bi-directional measuring, net flow/heat measuring
Environment	Temperature	Main Unit: -30℃ - 80℃
	Temperature	Transducer: -40℃ -110℃, Temperature transducer: select on enquiry
	Humidity	Main Unit: 85% RH
	Humidity	Transducer: water-immersible, water depth less than 3m
Cable	Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m
Power Supply	DC24V or AC220v
Power Consumption	Less than 1.5W
Protocols	MODBUS, M-BUS, Fuji extended protocol and other factory protocol
