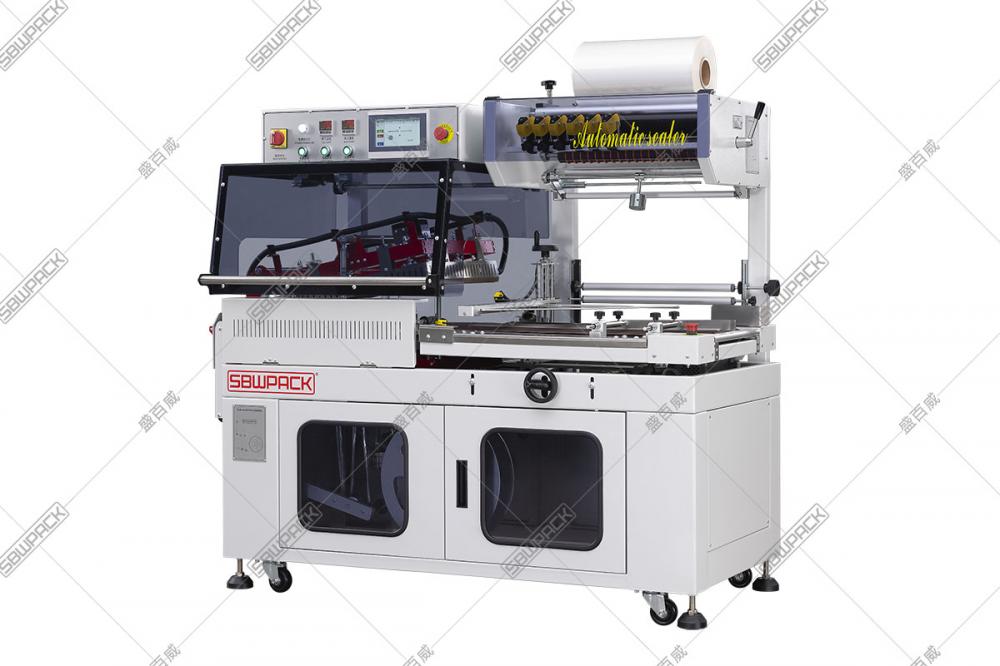

Auto L Bar Sealer and Shrink Tunnel

3 year ago
78 0
Product details

Auto L Bar Sealer And Shrink Tunnel System


Tunnel Technical Features

Stainless heating tubes and  strong blowing motor ensure high heating efficiency,large air volume and uniform air circulation.

Solid metal rods wrapped by heat-resistance silicone tubes make the conveyor rollers strong and resilient.


Scope of Application

Suitable for the packing demands of the mass production in industries such like software, food,cosmetics,printing, pharmaceuticals and floors,ceramics, beverage, hardware and so on.


Automatic Sealing And Shrinking Series Optionals

Kissing Device  HMI  Safety Door Switch  Transaprent Material Detection  Easy-to-tear Mouth.

Printed Film Detection  S/S Machine Frame /Customized Painting  Specific Electric/Pneumatic Brands.

Auto L Sealer And Shrink Tunnel

Automatic L Bar Sealer Technical Features

L-bar sealing blades driven by cylinder provide the film bag with strong seams with one strike.Suitable for single or combined packing of ordinary products.

One-piece heat-resistant alloy blades,Dupont Tefloncoated,anti-adhesive and easy to clean.

Packing size adjustable, no need to change module or bagging former.




Model
FL-5545TBA/TBB
SM-4525
Machine Dimensions (mm)
1700 X 840 X 1525
1300 X 746 X 1465
Max Packing Size (mm) L+H(mm) H<130
≤500
700 X 350 X 200
Max Packing Size (mm) W+H(mm) H<130
≤430
/
Sealing Size LxW (mm)
550 X 450
/
Capacity (pcs/m)
15~25
0~15m/min
N.W. (kg)
225
260
Power (kw)
2.2
9
Power Source
1PH 220V 50/60Hz
3PH 220V/380V 50/60Hz
Air Source (kg/cm²)
6~8
/
Applicable Film
POF/PE
POF
