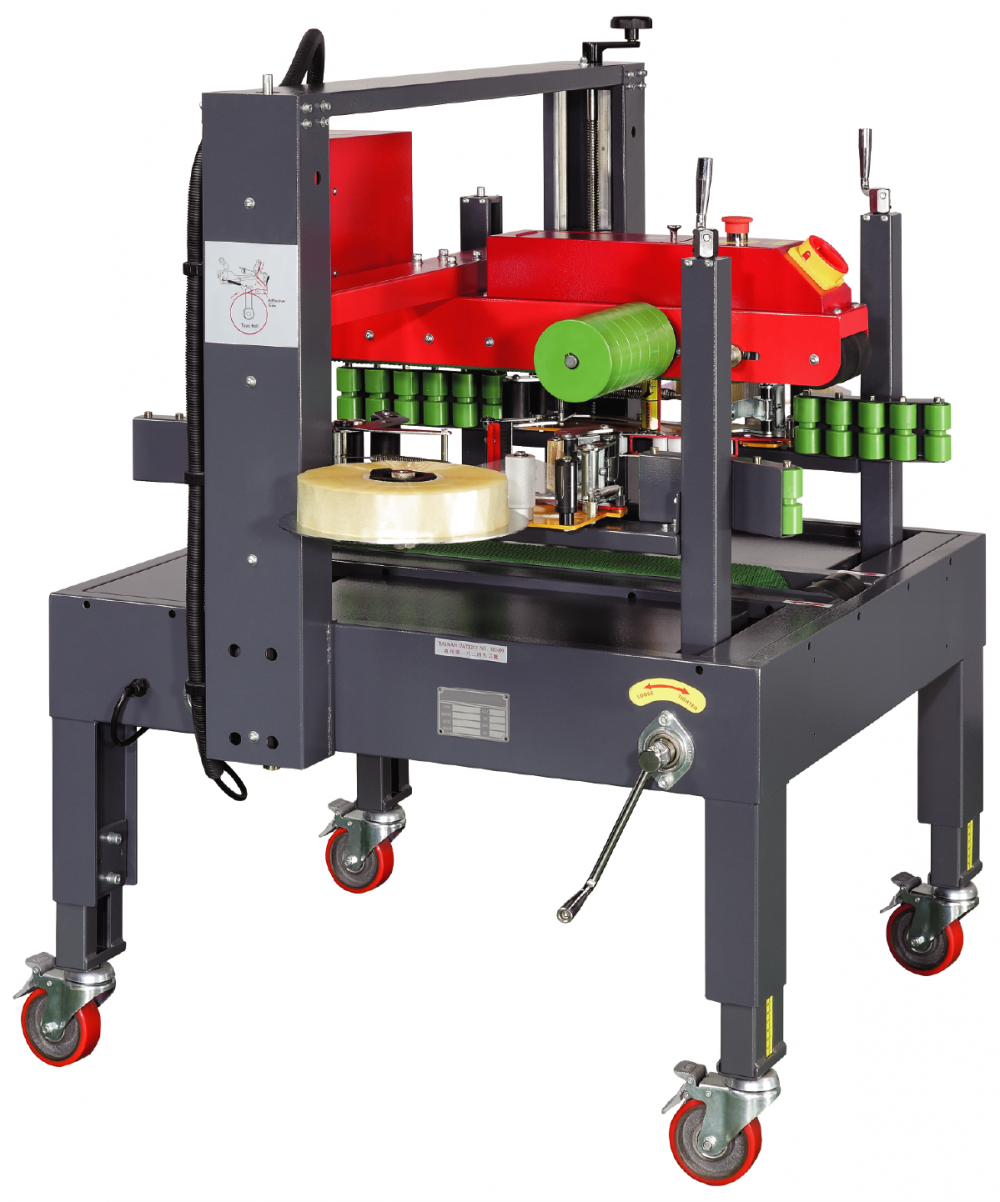

Carton Sealer with Side Sealing
Carton Sealer Technical Features:
Folding smaller flaps at the bottom easy for loading by hands, four guiding rails to close the four bigger flaps.
New taping device, much more stable in taping.
Elastic design of upper taping device to tension the upper flap sealing more smoothly.
Lockable casters, easy to move.
Carton Box Sealer Optionals:
Exention wheeled rack L370/550xW530MM
OPP tape low-reserve detection
Carton sealing failure detection
Auxiliary Equipment For Packaging Lines Dimensions:
Model | FX-570 |
Power Source |
3PH 220V/380V 50/60Hz |
OPP Tape Speicification | 2″/3″ (W) X 0.05mm (t) X 1000mm(L) |
Tape Inner Dia. | 76φ |
Tape Outer Dia. | 280mm (T0.05mm X L1000yd) |
Belt Speed (m/min) | 20 |
Carton Folding Capacity | 1800 cartons/hr (60Hz) |
Working Table Height (mm) | 600 ~ 810 |
Packing Size (mm) |
L150~∞ X W200~600 X H130~400 |
Machine Dimensions (mm) |
1000 X 820 X 1350 |
N.W. (kg) |
161 |
G.W. (kg) | 190 |
Packing Crate Size (mm) | (L)1001 X (W)1156 X (H)1354 |
