High flow submersible axial flow propeller pump

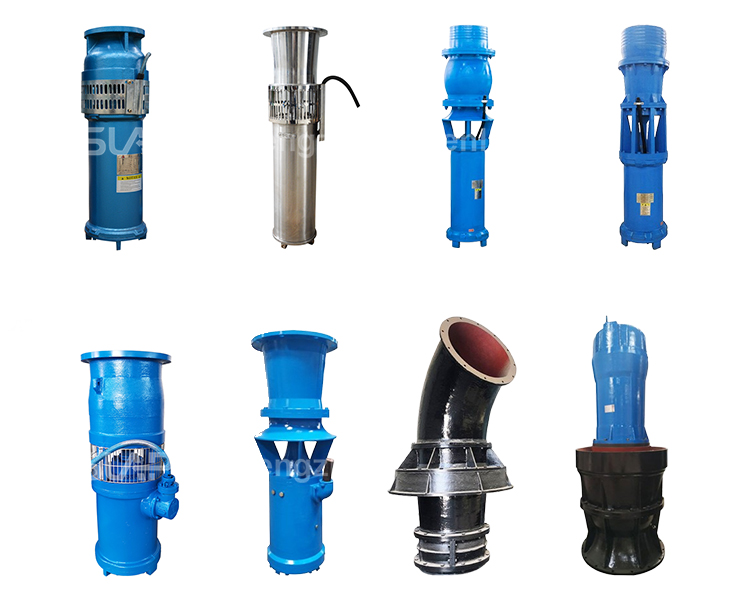

QS series submersible pump including QS small submersible pumps, QSP Submersible Fountain Pump, QSZ Submersible Axial Flow Pump and QSH Mixed Flow Submersible Pump. These series submersible pumps are mainly used in drawingwater from well, river, sea and lake; fountain projects; farmland/spray irrigation; aquaculture; water supply or drainagesystem for cities, industrial and mine establishments etc.

The Axial Flow Submersible pump, which is a large flow low head water submersible pump, the motor driving the pump is submerged type fully enclosed three phase asynchronous submersible motor. The Submersible Axial Flow Pump and motor shaft are integrated. Flexible installation, pumping clean water and sewage water. Especially for rain flood water, large capacity, longer service life. Convenience in operation, it is not necessary to lubricate the ruber bearing of pump prior to turning on the machine, in addition, remote control and automatic control are realized.

In order to solve the problem of different application scenarios and different pumping media, Our High Flow Submersible Pump Axial/Mixed flow pumps are available in Cast iron, Ductile cast iron, SS 304, SS 316, SS 316 L.

The Axial Flow Submersible pump can be installed vertically, horizontally, tilting.

High Flow Submersible Pump Axial Flow Pump Technical Parameters

Model	Power		Flow Rate	Head	Discharge Dia.
QSZ Series	kw	hp	m3/h	M	mm
2000SZ-4.5-7.5KW	7.5	10	450	4.5	200
3000SZ-5.4-18.5KW	18.5	25	800	5.4	300
3500SZ-2.7-18.5KW	18.5	25	1500	2.7	350
3500SZ-5.4-30KW	30	40	1250	5.4	350
4000SZ-4-30KW	30	40	1600	7.8	400
4000SZ-5.4-37KW	37	50	1600	4	400
5000SZ-4-40KW	40	55	2000	5.4	500
5000SZ-3.8-55KW	55	75	2880	4	500
500QSZ-8.2-65KW	65	88	2160	3.8	500
6000SZ-4-65KW	65	88	3000	8.2	600
6000SZ-3.5-75KW	75	100	3200	4	600
