Regular accessories included:
*King Light LED Lamp
*Nova Star MRV208-1 receiving card
*Nova Star MSD-300 transmitter card
*Power supply 300w-5v-60a
*Automatic voltage power 100-240v
*Refresh rate 7680hz

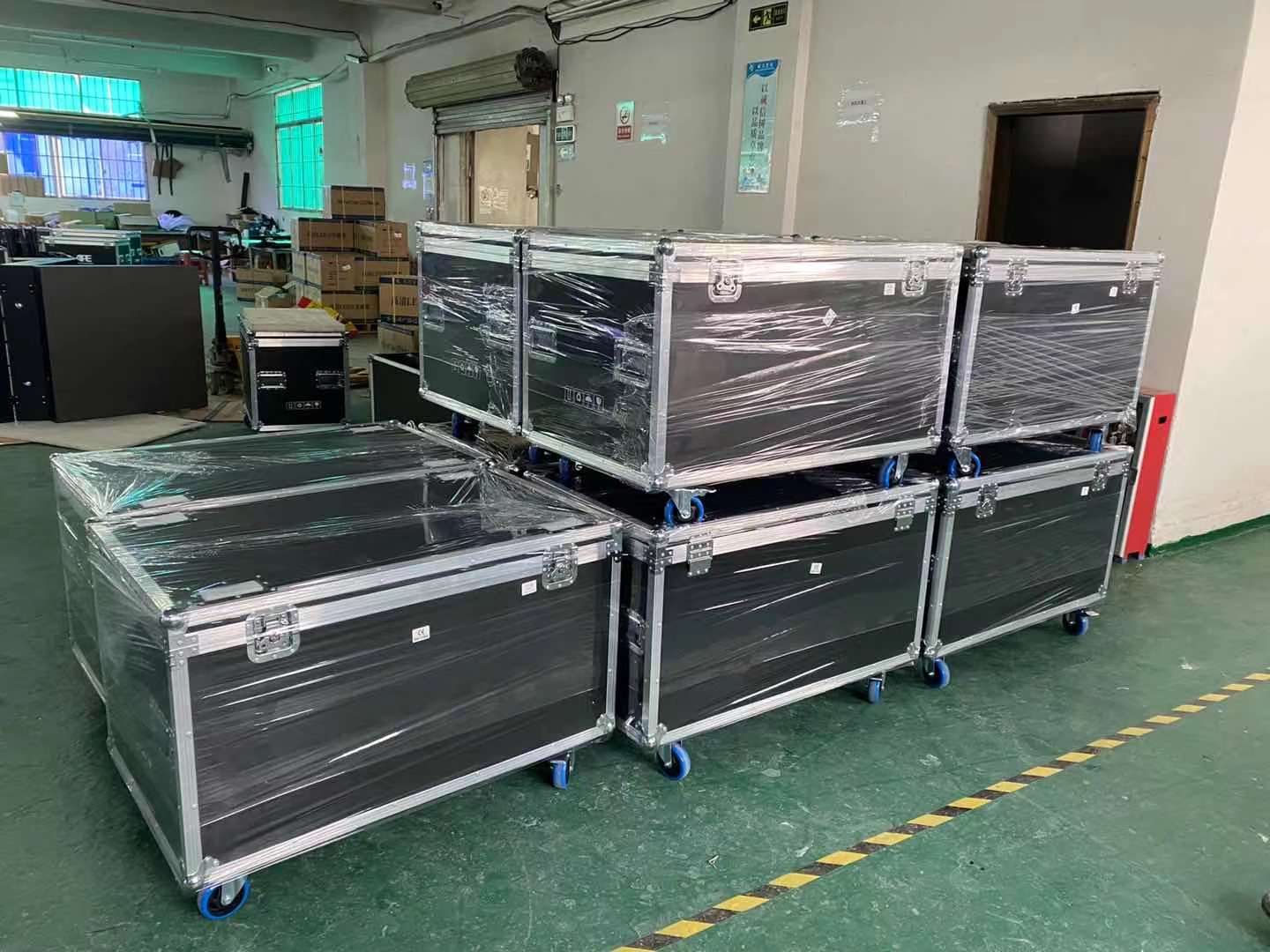

*Free flight case
Flight case packing for LED screens is a popular method of transporting and protecting these delicate pieces of equipment. LED screens are used in a variety of settings, from concerts and festivals to corporate events and trade shows. They are large, heavy, and expensive, which makes them vulnerable to damage during transportation. Flight case packing is a reliable way to ensure that your LED screen arrives at its destination in perfect condition.
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH 2.604)
|
|
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
2.6 |
|
|
（Panel size） |
MM |
L250*H250*T16.8 |
|
|
（Physical density） |
/M2 |
147456 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/32 Constant current 1/32scan |
|
|
（LED Encapsulation） |
SMD |
1515 |
|
|
（Display resolution） |
DOTS |
96X96=9216 |
|
|
（Module weight） |
KG |
0.2 |
|
|
（Module port） |
|
HUB75 |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
22 |
|
|
Panel Parameters |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
3-30 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
16 |
|
|
（Maximum power） |
W/ M2 |
350 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680Hz |
|
|
（Equilibrium brightness） |
CD/ M2 |
900-1200mcd |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC47~63HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
8500K-11500K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NOvaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP50 |
|
|
（Steel box size） |
mm |
L500Xh500/500x1000 |
|
If you are interested in the product, contact 2bvideo.com for more information for more information
