Photovoltaic Solar Cell Protection Schottky Rectifier

YZPST-GFMK-3045PS

FEATURES
● Low power loss
● Low forward voltage drop
● High forward surge capability
● High efficiency
TYPICAL APPLICATIONS
For use in solar cell junction box as a bypass diode for protection.

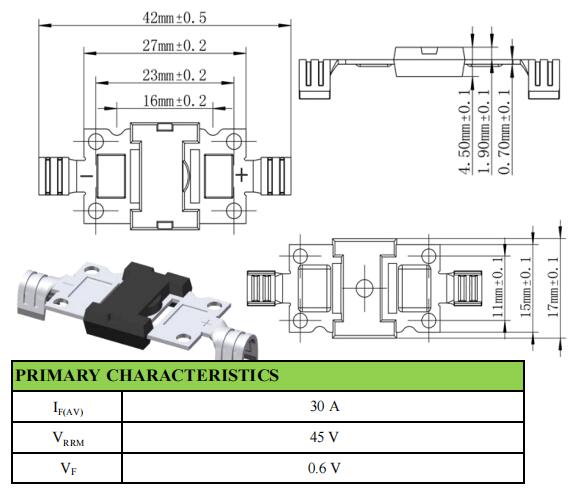

MECHANICAL DATA
Case: MJ-01 ： MJ-01
Molding compound meets UL 94 V-0 flammability rating UL 94 V-0
Terminals: Matte tin plated leads

Polarity: As marked on the body

Low power loss Photovoltaic Solar Cell Protection Schottky Rectifier

MAXIMUM RATING (TA = 25 ℃ unless otherwise noted)
PARAMETER	SYMBOL	GFMK 3045PS	UNIT
Maximum repetitive peak reverse voltage	VRRM	45	V
Maximum RMSvoltage	VRMS	31.5	V
Maximum DC blocking voltage	VDC	45	V
Maximum average forward rectified current	I F(AV)	30.0	A
Peak forward surge cuurent 8.3ms single halfsine_wave superimposed on rated load @60Hz	IFSM	240	A
Operating junction temperature range	TJ	-55 to +200	C
Storge temperature range	TSTG	-55 to +200	C

ELECTRICAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER	TEST CONDITIONS	SYMBOL	GFMK 3045PS	UNIT
Maximum instantaneous forward voltage	30.0 A	VF(1)	0.6	V
Maximum instantaneous reverse current at rated DC blocking voltage	TJ = 25 C	IR(1)	0.5	mA
	TJ = 125 C	IR(1)	100	mA

THERMAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)

PARAMETER

TEST CONDITIONS

SYMBOL

GFMK 3045PS

UNIT

Typical thermal resistance

Junction to Case

thJ-C

0.8

C/W
