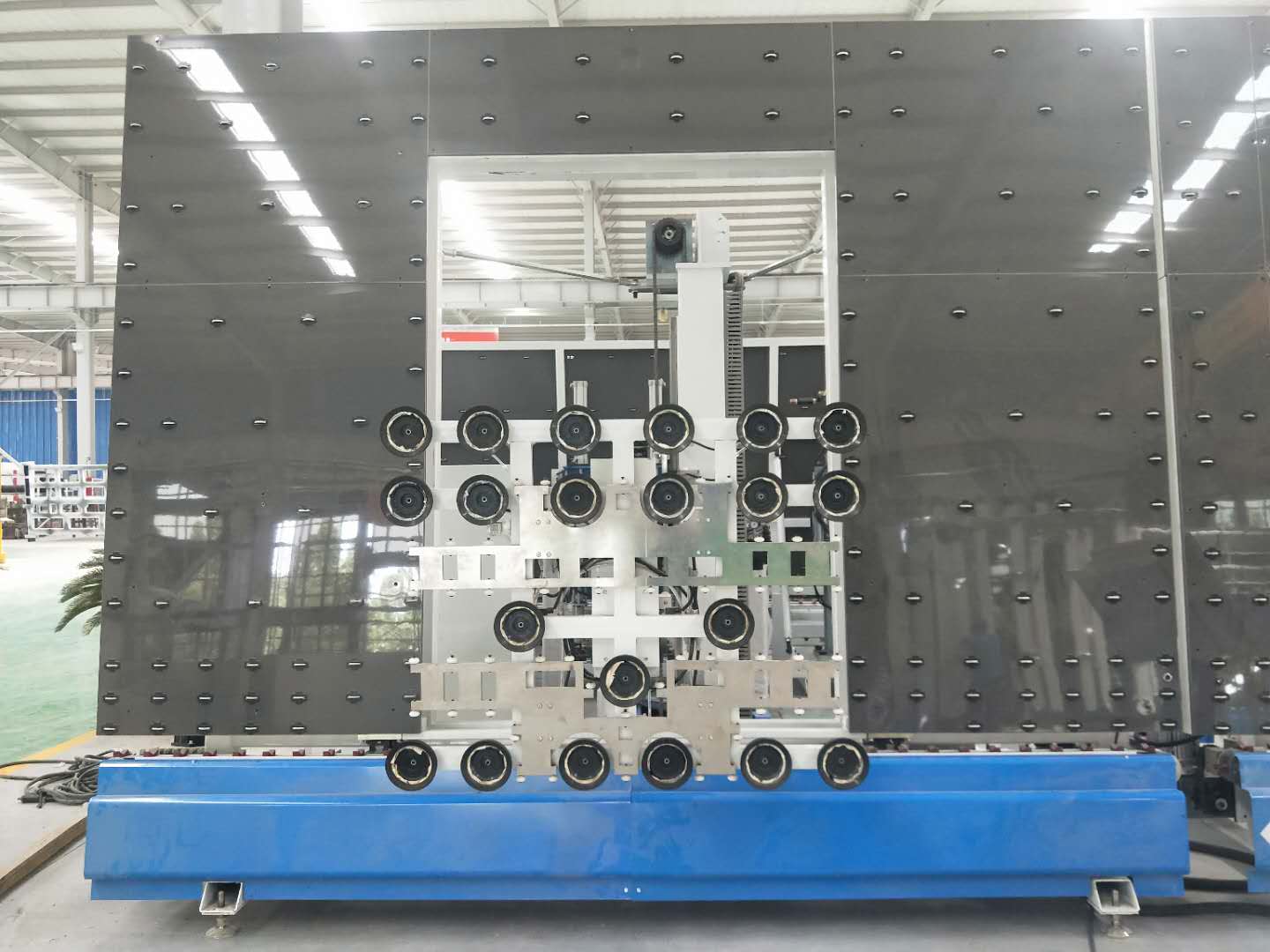

Glass Unloading Machine
Automatic Insulating Glass Unloading Machine with automatic detect glass position and glass size.It can reduce human cost and avoid worker hazard.It is necessary machine for the IGU glass factory.Our Auomatic Glass unloading Machine with PLC control,worker just operate machine via touch screen will be ok.
1 it can connect with the automatic sealant line,automatic sealant sealing line date will be transfer to glass unloading machine
2 glass unloading machine can measure how many pieces glass it will put in one glass.Once glass plate is full,it will send an alarm
3 one glass plate can be added two layers to reduce space.
Technical parameter:
|
Max glass size |
2500*3500mm |
|
Glass thickness |
12-48mm |
|
Suction arm speed |
0-12m/min |
|
The max size of suction arm stretched out |
800mm |
|
The work angle of swing arm |
84-100degree |
|
Air consumption |
100L/min |
|
Total power |
9kw |
|
Total weight |
2000kg |
|
Dimension |
3650*2600*2900mm |
Electric components Brand:
Name
Brand
Origin
PLC
PANASONIC
Japan
Servo motor
Panasonic
Japan
Touch screen
WEINVIEW
Taiwan
Low-voltage electrical
SCHNEIDER
France
Machine detail photo:

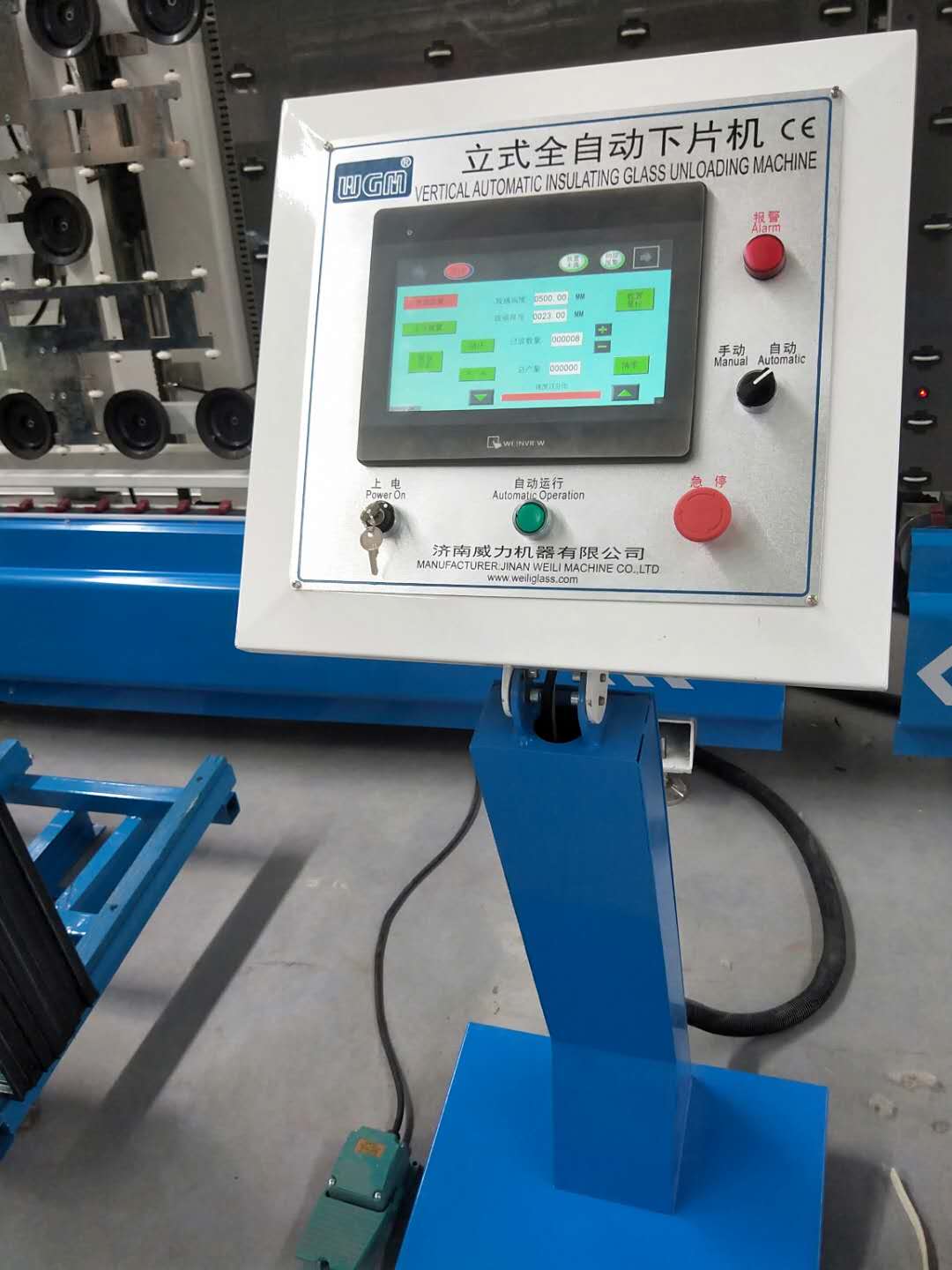

TOUCH SCREEN

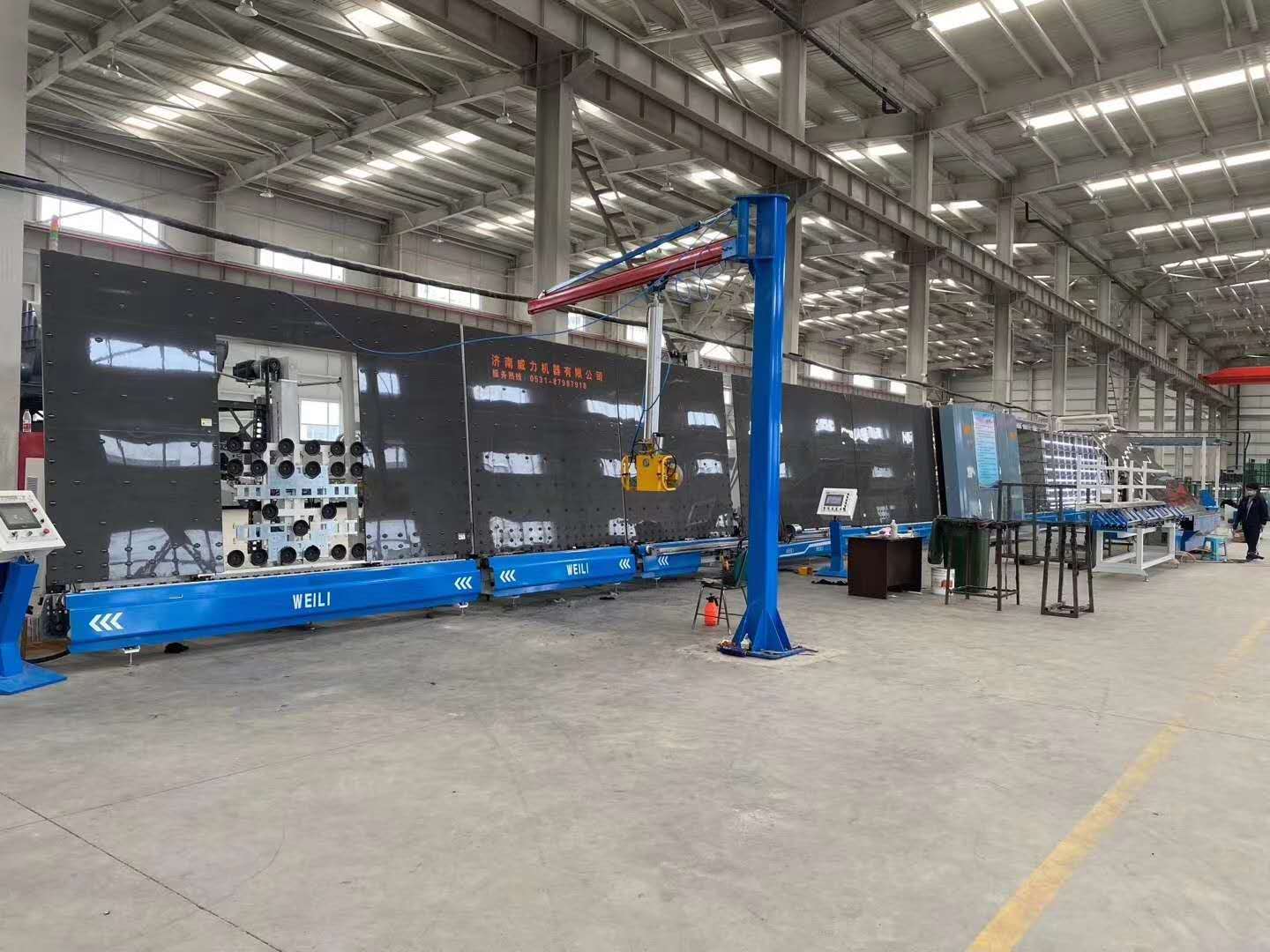

FULL COMPLETE IGU LINE
OUR NEW WORKSHOP
OUR MACHINE PATENTS
Other Items of our machine
1 Glass Vacuum Lifter
2 Insulating Glass Loading Machine
3 CNC Vertical Glass Drilling and Milling Machine
4 Insulating Glass Production Line
5 Glass Cutting Machine
