Automatical milk-tea cup screen printing machine

Machine description

Due to the popularity of leisure drinks, the use of disposable cups has exploded. These cups are made of environmentally friendly paper and plastic, and a small number of them do not require printing, but most brand stores use printing decoration, and silk screen printing is more popular and cost-effective. a higher process.

Due to the large amount of disposable cups, there is a strong demand for automatic screen printing machines in the market, and screen printing machines specially designed and manufactured for such cups have been continuously launched, becoming the latest market darling. The automatic cup screen printing machine is conveyed by conveyor belt, and then uses the manipulator to push the cup to the vertical turntable table, the turntable table rotates, and then enters the surface treatment (plasma treatment, flame treatment), screen printing (design two-color screen printing, photoelectric tracking can be installed) switch), UV curing or UVLED curing system, and then use the unloading robot to place the cups on the unloading conveyor belt. This fully automatic screen printing machine has stable operation, high speed and good printing quality, so it is very popular among customers.

S-1031UVLEDRC Full automatically milk tea cup coffee cup UV-LED screen printing machine/Structure
Feeding device	Feeding conveyor, customized feeding system
Surface treatment	Flame treatment, Plasma
Working table	8-10 stations stand rorating index stand working table
Actions	Precision indexing disc Rotating transport
Ink drying device	UV-LED Dying system
Discharging	downloading Robot and Conveyor

S-1031UVLEDRC Full automatically milk tea cup, coffee cup UV-LED screen printing Machine//Parameter
Technical parameters	Printing Max. Diameter ￠20-￠50mm; Printing Max Length 20-200mm; Printing station 10; Printing Speed 3600Pcs/H; Power supply 380V 50 MHz; Air pressure 0.6-0.8Mpa; Total power 4.5KW UV lamp wattage: 4KW
Works supply	Power： 3 phase 380V； 5-7Bar Compress air ；
Package list	Package Dimension: 2.06×1.70×1.930mm; Gross weight: 1100Kg CBM: 6.75886
H.S.Code	8443198000
Certificate	CE

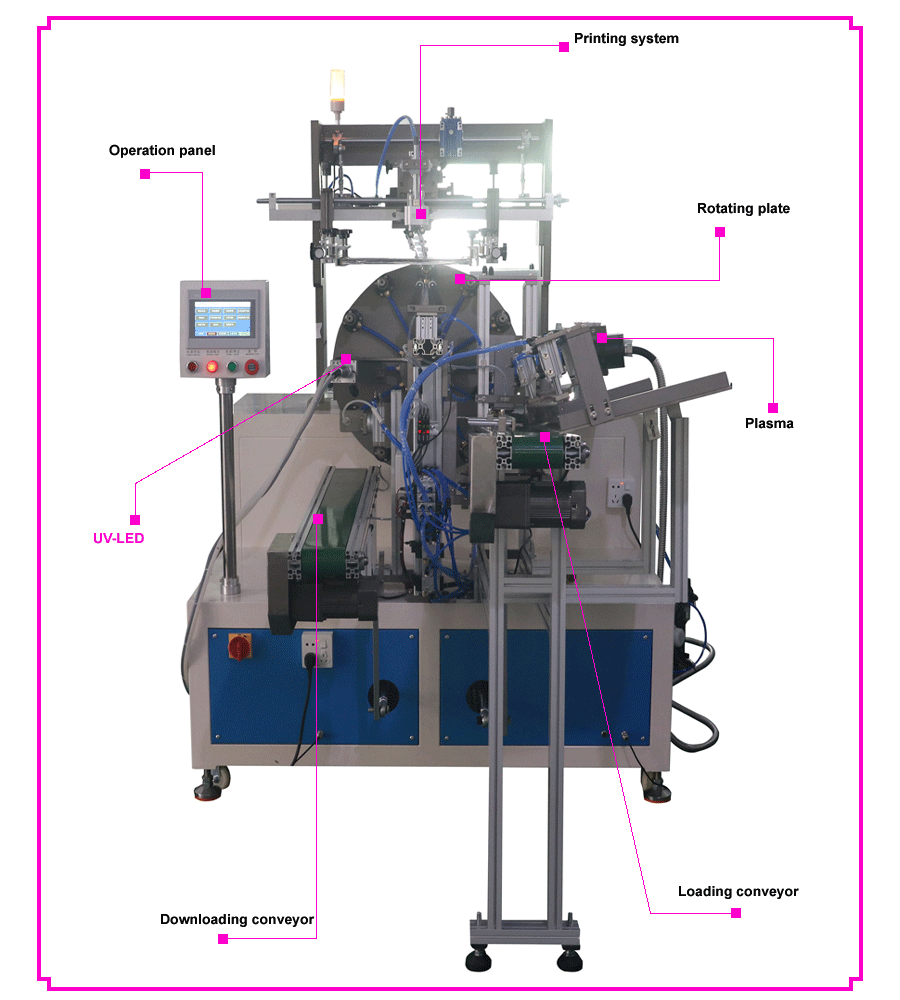

Machine structure-Advantage

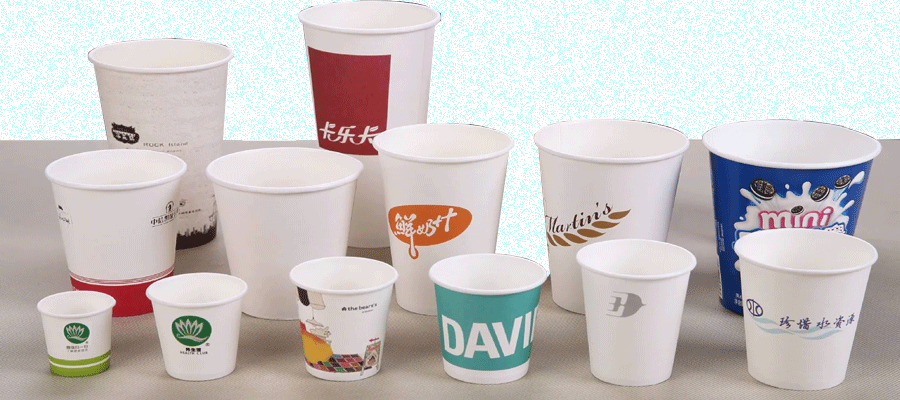

Fully automatic screen printing machine specially designed for disposable cups such as milk tea cups, coffee cups, beverage cups, etc.
The width of the integrated synchronous feeding and feeding device of the whole machine can be adjusted flexibly, which is convenient to adjust according to the size of the cup; the speed can be adjusted steplessly to match the transportation speed with the printing speed;
Automatic manipulator push feeding;
Online flame treatment device or plasma treatment can improve the surface tension of PE material and increase the adhesion of ink;
Stable vertical turntable transmission system, stable operation and high precision;
Automatic screen printing device, the fixture can be changed according to the size of the cup; electronic sensors are installed in the printing area to realize the function of no part without printing; photoelectric switch tracking system can be installed to realize color printing.
High-performance UVLED drying device, instant drying of ink; energy saving, safe and environmentally friendly.
The whole machine realizes mechanical transmission and touch screen operation, which can easily realize man-machine dialogue and make the operation more handy;
The main parts are processed by CNC, the high-quality processing accuracy ensures the stability of high-speed operation, and the printing speed is up to 2000pcs/h;
The electrical components and control system of the whole machine use German and Japanese components to ensure stable printing quality.
