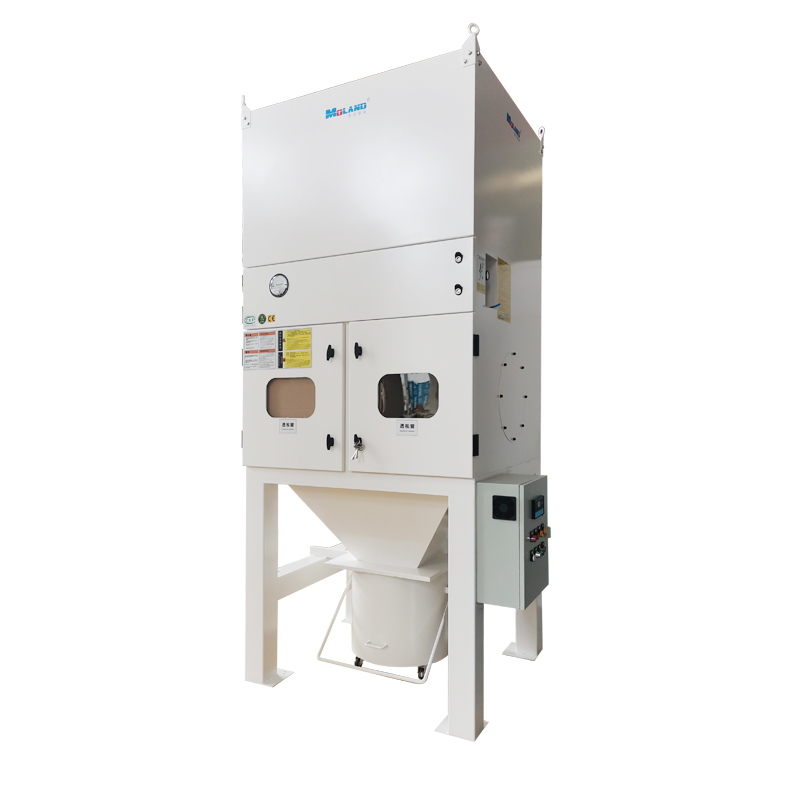

MLWF series dust collector provides perfect solution for different smoke and dust. MLWF series split-type smoke and dust collection purifier has compact structure, reasonable design, large air exhaust volume, and can be placed indoors or outdoors.
PE series split-type dust purifier and fan adopt split-type combination, which can be equipped with a variety of collection devices for large-scale welding,the smoke and dust from grinding and cutting.
We can design the best suitable smoke and dust collection system according to different site working condition.
Standard Configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· 60L Dust Collection Drawer
· Left and rear three-sided air intake (φ300-200)
· 10m Power cord
· Spark trap (large particle dust pre-filter)
Recommended workingcondition
· Welding Workstation (3m x 2.5m x 4m)
· Special Machine for Ring and Straight Welding
· Large Continuous Workload Conditions such as Intersection Wire Cutting
Spare parts
· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm(φ200)
· Suction duct(φ400)
· Ash bucket
| Power | 7.5kw | 5.5kw | 3kw |
| Voltage | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Air Volume | 7000-10500m³/h | 5000-7000m³/h | 3500-4500m³/h |
| Accuracy | 0.3μm | 0.3μm | 0.3μm |
| Filter material | PTFE Cartridge Filter | PTFE Cartridge Filter | PTFE Cartridge Filter |
| Filter Area | 108m² | 90m² | 40m² |
| Filter Size | ∅325*860mm (9 branches) | ∅325*660mm (9 branches) | ∅325*660mm (4 branches) |
| Cleaning | Automatic dedusting | Automatic dedusting | Automatic dedusting |
| Noise | 75dBA | 75dBA | 75dBA |
| Size | 1240×1470×2400mm | 1240×1470×2200mm | 960*985*2080mm |
| Weight | 980kg | 800kg |
310kg |

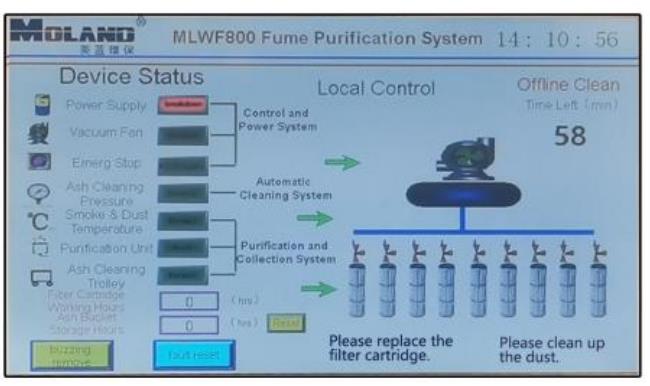

PLC Intelligent Control System
· Siemens PLC intelligent control system.
· MOLAND independent research and development,

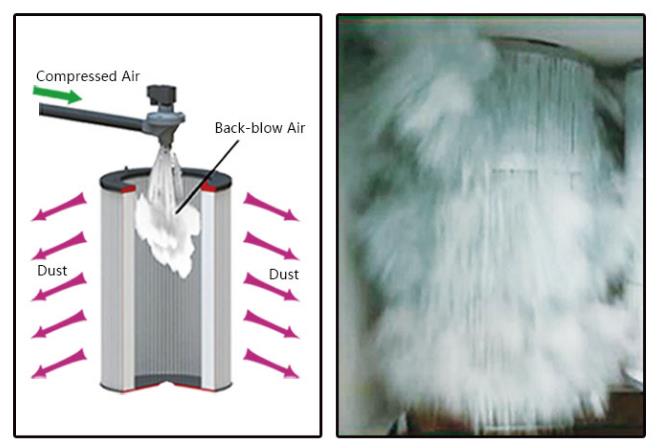

Auto Pulse Jet Cleaning System
The omni-directional pulse blowback dust removal system, which can automatically clean the filter cartridge with a filtration efficiency of 99.9%.
Cartridge Filter
·Size: Φ325*660mm
·Material: Flame Retardant Coated polyester fiber
·Filter area: 66 m^2
·Cleaning mode: Auto pulse jet cleaning
·Filtration efficiency: 0.3um，>99.9%

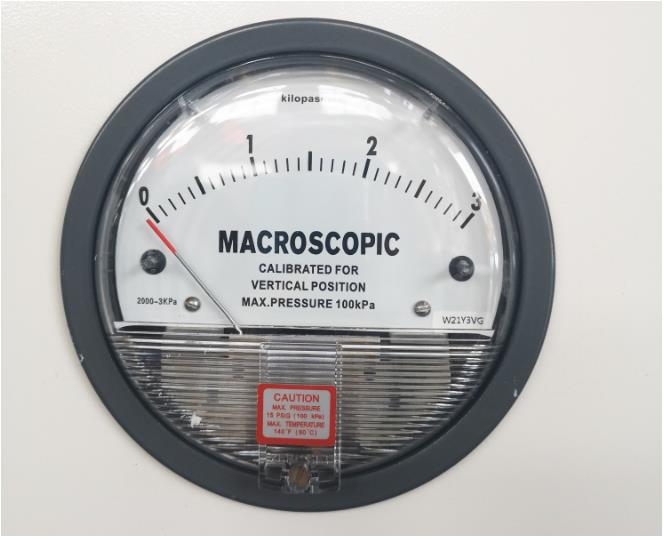

Pressure Differential Gauge
The pointer visually displays the pressure difference, and the use of the filter cartridge is monitored in real time. When the pressure difference is too high, the dust collector automatically blows back and cleans the dust.

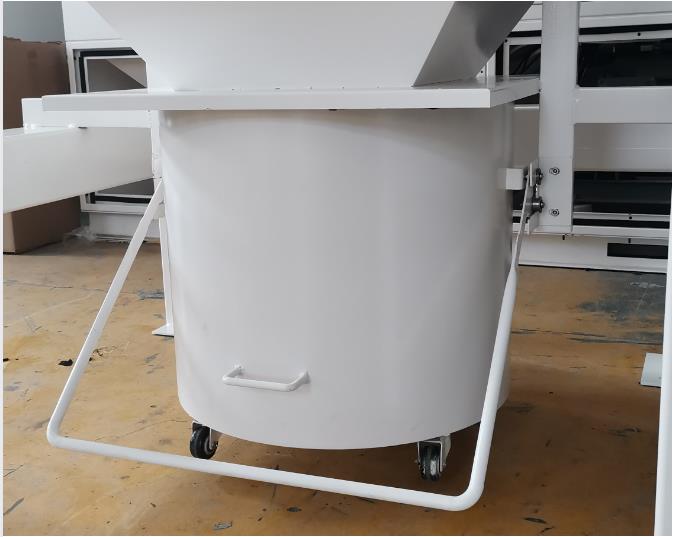

Ash Bucket
Lift-type dust collection bucket, high sealing, prevent dust from spilling, with anti-reverse suction structure, the dust collection effect is more ideal
