Product details

The filter is integrated with double housing, a selector valve, and a bypass valve, enabling seamless filter replacement without system shutdown, utilizing metal mesh or advanced synthetic fiber media, to chieve filtration accuracy of 3-200μm to remove contaminants efficiently.

Change-Over Return Line Filter (SDRFD)

---up to 1300 l/min

---up to 25 bar

---material: aluminum, casting

1. Filter Housing

• Construction ：Change-Over Return Line Filter consists of one-piece housing with bolt-on cover plates. The two housings are connected by a ball change-over valve with negative overlap and single-lever operation. There is a bypass valve and two clogging indicators on it.

2. Filter Element

• Max. Allowable DP:

BN/ HC – 25 bar P/HC – 10 bar W/HC – 30 bar V – 30 bar

3. Description

Mounting As tank-top or inline filter

Flow Inlet: by bypass valve; Outlet: bottom

Temperature range -10℃~ +100℃

Pressure setting of clogging indicator △Pa= 2 bar – 0.2 bar (others on request)

Bypass cracking pressure △Po= 3 bar - 0.5 bar (others on request)

4. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

Symbol for hydraulic systems

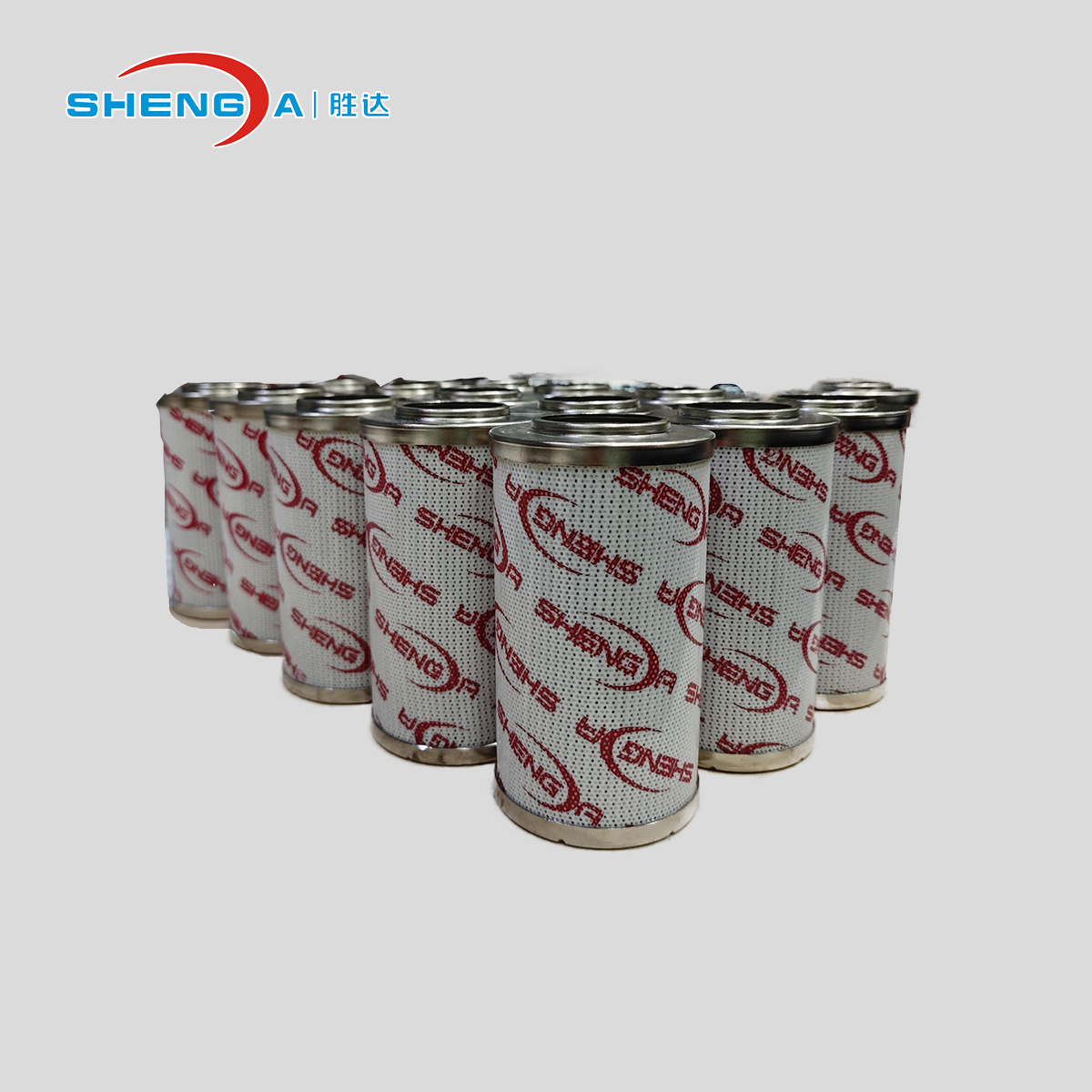

Filter Element

Filter elements are available with the following pressure stability values:

BN/HC: 25 bar

Paper(P/HC): 10 bar

Wire mesh( W/HC ): 30 bar

Stainless steel fiber( V ): 30 bar

Compatibility

It can be used for mineral oils, lubrication oils, non-flame fluids, synthetic and rapidly biodegradable fluids. For water or other application, please contact us.

General

Mounting

Tank-top mounted or inline filter.

Flow

Inlet: by a ball change-over valve

Outlet: down

Temperature range

-10℃~100℃(others on request)

Pressure setting of clogging indicator

△Pa=2bar-0.2bar (others on request)

Bypass cracking pressure

△Po=3bar-0.5bar (others on request)
