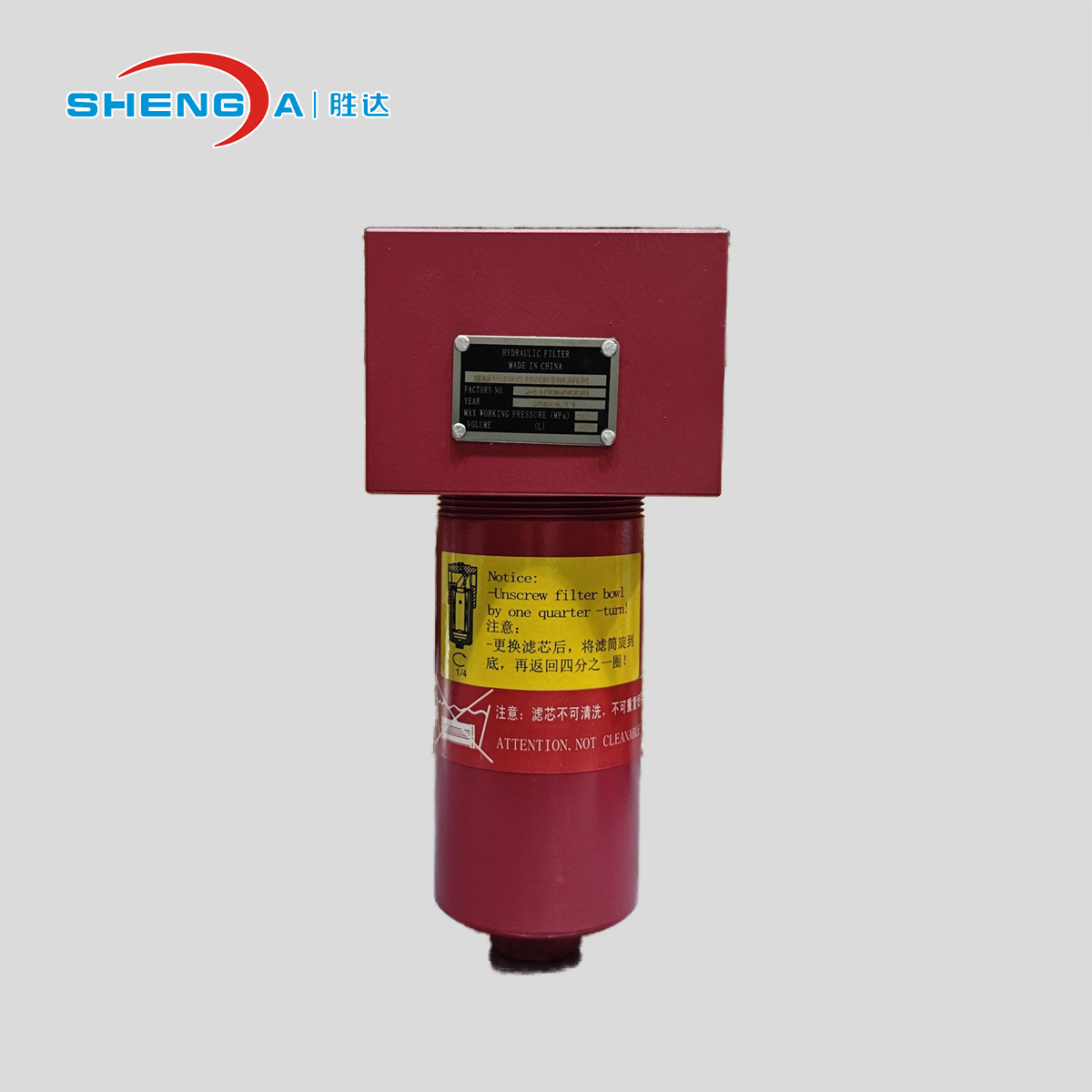

I. Product Overview

The DFP series filter is a return-line filtration solution engineered by Shengda Filtration for hydraulic systems, lubrication circuits, and industrial fluid media. Designed with compactness, efficiency, and smart monitoring, it meets stringent cleanliness requirements for small-to-medium-sized equipment.

II. Technical Specification

1.1 Filter Housing

Construction

Chang-over pressure filters are designed in accordance with international regulation, which consist of a filter housing with a screw-on cover plate

Standard equipment

without clogging indicator

two-piece bowl for size 990 and above

drain plug with pressure relief (size 330 and above)

1.2 Filter Element

Shengda are sure that our filters are of reliable performance so that they can protect hydraulic parts from polluting and machines from abrasion.

Filters are validated according to the following standards

DINISO 2941 DINISO 2942 DINISO 2943 ISO 3724 ISO 3968 ISO 16889

Filter elements are available with the following pressure stability values

BN/HC:20bar W/HC:20bar V:210bar BH/HC:210bar

1.3 Seals

NBR Or FPM

1.4 Special models and accessories

-Bypass valve

1.5 Spare parts

-See Spare part and maintenance list

1.6 Compatibility with hydraulic fluids ISO2943

-Hydraulic oil H to HLPD DIN 51524

-Lubrication oils DIN 51517, APJ, ACEA, DIN 51515, ISO6743

-Compressor oil DIN 51506

-Biodegradable operating fluids DMA24568, HETG, HEES, HEPG

-Non-flame operating fluids HFA, HFB, HFC, and HFD

2.General Mounting

As pressure filter for manifold block mounting

Temperature range: -10℃~to+100℃

Pressure setting of clogging indicator: ΔP=5bar-10%

Bypass cracking pressure: ΔPa=6bar+10%

III. Product Features

1.Excellent Filtration Performance: Utilizes top-tier filtration materials to effectively remove impurities, particles, and dust from oil, ensuring system cleanliness and stability.

2.Large Capacity Design: The filter cartridge has a large capacity, maintaining efficient filtration for extended periods, reducing replacement frequency, and lowering maintenance costs.

3.High-Pressure Resistance: The filter can withstand high pressure, avoiding deformation or damage, ensuring stable operation in high-pressure environments.

IV.Application

Our products have been widely used in petrochemical, coal chemical, sewage treatment, nuclear power, agricultural machinery, steel plant, power plant, metallurgic plant, paper mill, medicine and other industries.
