Automatic Ribbon screen printing machine

The screen printing machine for printing continuous strips and roll materials belongs to the category of roll-to-roll screen printing machines. There are two main types. One is the screen printing machine for printing paper, film and other materials with good dimensional stability. It has the following characteristics:
1) The workbench adopts an aluminum alloy suction screen printing table. When the roll material is transported to the printing position according to a certain distance, the material stops moving, the suction action opens, and the printing is completed. Then, the roll material continues to be pulled forward.
2) The drying of the machine can use a winding drying furnace, which saves the space occupied by the machine under the condition of ensuring the drying of the material. Now there are also some product packages that use UV drying or UVLED drying. A curing unit can be installed in the post-printing process, and the UV ink is dried instantly, so the footprint of the machine is greatly reduced.
3) The photoelectric tracking switch is installed at the front of the machine table, and the single-color screen printing machine can perform overprinting of the second color. The machine can connect multiple monochrome machines to complete multi-color overprinting.
This roll-to-roll screen printing machine is suitable for printing paper packaging, membrane switches, thermal transfer films and other products. With the development of the market, the functions of roll-to-roll machines have been greatly improved. For example, adding a thermal transfer unit can realize cold stamping. When printing thermal transfer film, the machine can be equipped with an automatic powder shaker unit, and some factories will Add die-cutting or cutting function.
There is also a kind of screen printing machine with stretchability and elasticity such as printing ribbons. Its characteristics are as follows:
1) The workbench adopts a synchronous belt driven by a motor, and the product will move forward with the synchronous belt for a certain distance for printing, which avoids the graphic deformation caused by the expansion and contraction deformation of the product during printing.
2) Ribbon and other products are basically printed with thermosetting ink and glue, and the ink drying adopts IR drying process, and the length of the drying oven varies from 2 meters to 4 meters. Currently, webbing products rarely use UV curing process.

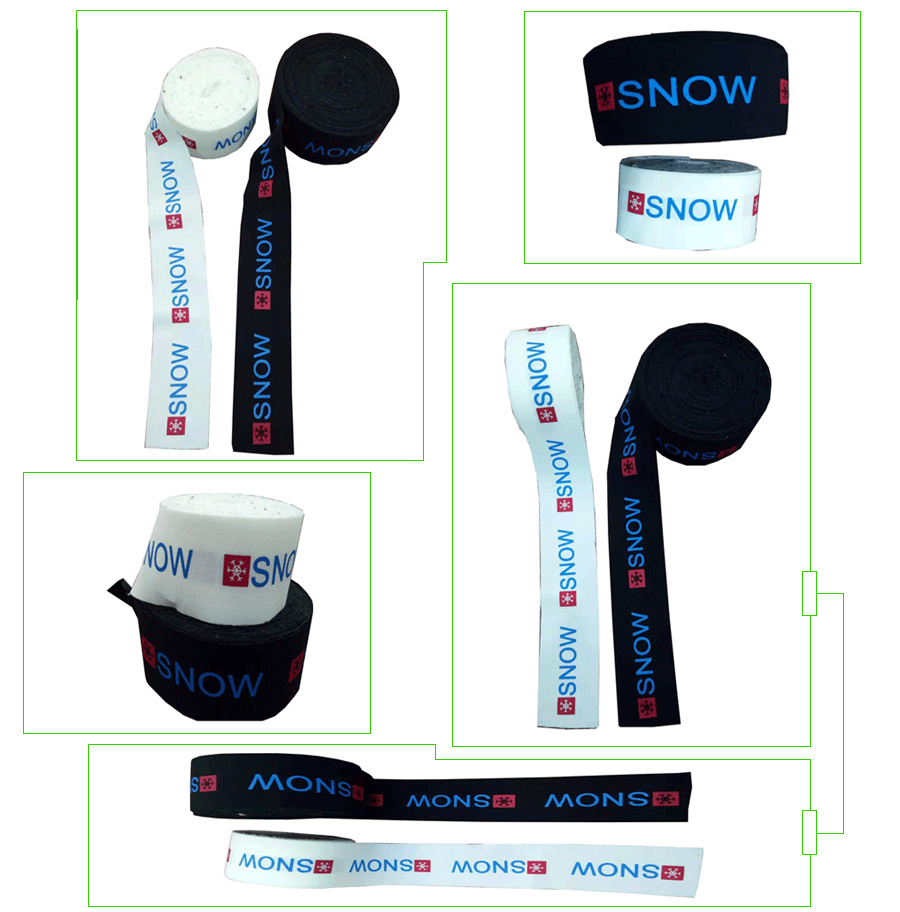

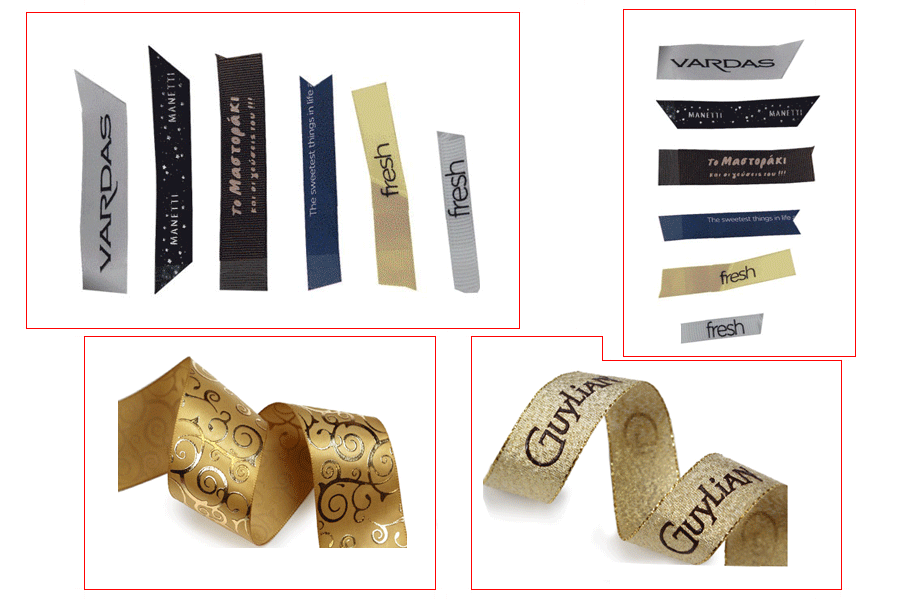

Samples

Ribbon is a narrow or tubular fabric made of various yarns, usually in the form of a roll of unlimited length.

Yarn can be natural fibers such as cotton and linen, or chemical fibers such as polyester, nylon, polypropylene, and spandex. Some shoulder straps of underwear and decorative belts of home clothes use cotton webbing, and some handles of linen handbags are natural fibers. Chemical fibers include: high-strength and durable luggage straps, straps for outdoor equipment, etc.; shoelaces, climbing safety belts, team logo belts, billboard belts; swimsuit straps, medical straps, trouser belts, hat decorative belts and yoga clothing decorative belts. Ribbon involves clothing, footwear, luggage, security, household goods, sporting goods, electronic equipment, outdoor decoration and other fields. Ribbon can be decorated by screen printing machine, hot stamping machine, embossing machine, and chemical transfer machine.

Technical data

ribbon width: 10-200mm
Printing stroke: 600mm
Printing speed : 15M/Min
Power supply: 3 Phase 380V
Motor wattage: 1.5kw
Feeding Motor:375W;
IR Motor: 60W
Cool Motor: 5W.
Net weight: ≈1200kg
Max Frame dimension: 400×700mm.
IR wattage: 2KW(1)+2KW(2)
IR Length: 2000mm
Power: 3 phase 380V;
10M Length space for installation
Package dimension: 3.4*1.37*1.56m;-2pcs
Gross weight: 750kg.
7.2789

Advantage

That shut down for operating an ink rub net increase, which will help the color adjustment;
Block printing with vacuum suction function, ribbon positioning is more accurate and reliable;
High-speed printing, the normal per-minute speeds of up to 15M;
Which can print up to eight different types of ribbon;
Double blade design, printing, inking cleaner and reliable;
All-electric control, no compressed air;
Automatic feeding, winding tension control;
Smooth running smoothly, the printing stroke and speed adjustable;
Taiwan inverter control constant torque operation, to ensure consistent printing results;
Using IR infrared drying system, printing, drying synchronization is complete;
