Cloth roll heat sublimation machine

Eating and dressing are the most basic consumer needs of human beings. They promote the continuous progress of human lifestyle. Human beings' high requirements for the quality of life have further brought technological progress at the social level into modernization and science and technology.

For clothing, human beings have long abandoned natural bark, animal skin and other things, and replaced them with various new technologies and new materials of light textile fabrics. Human beings have long been not limited to a single color, but have decorated various fabrics in a colorful way.

Fabric decoration has a long history. Some have been eliminated, some are still used today, and modern decoration methods are endless. Roller sublimation transfer technology is the most widely used, most stable technology, richest transfer color, and most environmentally friendly processing technology.

The roller transfer machine mainly consists of a steel roller filled with oil and a blanket with a soft structure to form a pressure source. The fabric and the sublimation transfer machine are in close contact and enter the embossing gap. The roller can produce stable heat. Under the action of heat and pressure, the image and text on the sublimation transfer paper will be transferred to the fabric.

The drum-type thermal sublimation transfer machine is a device commonly used in thermal transfer technology. First, the pattern to be transferred is printed on the thermal sublimation paper using thermal sublimation ink using a printer, and then the thermal sublimation paper with the pattern is fed into the drum-type thermal sublimation transfer machine together with the material to be transferred (such as cloth, cut pieces, etc.). The drum of the machine heats and pressurizes the ink on the thermal sublimation paper to sublimate into a gaseous state, and then penetrates into the material fiber. After cooling, the gaseous ink re-solidifies on the material, thereby realizing the transfer of the pattern.

Structural composition

• Drum heating system: Generally, electric heating tubes or heat transfer oil circulation heating methods are used to make the surface temperature of the drum uniform and can be accurately controlled within the set range.

• Transmission system: It is composed of a motor, a reducer, a transmission chain or a belt, etc., which drives the drum to rotate at a uniform speed to ensure that the material and the thermal sublimation paper are smoothly transmitted during the transfer process.

• Pressurization system: Usually a pneumatic or hydraulic device is used, and the pressure of the drum on the material can be adjusted according to the material and transfer requirements.

• Feeding and receiving system: including unwinding device, guide roller, tensioning device, rewinding device, etc., responsible for accurately feeding the sublimation paper and materials into the roller, and rewinding the transferred materials and waste paper.

• Control system: with PLC or single-chip microcomputer as the core, it can accurately set and monitor parameters such as temperature, pressure, speed, transfer time, etc. in real time.

323

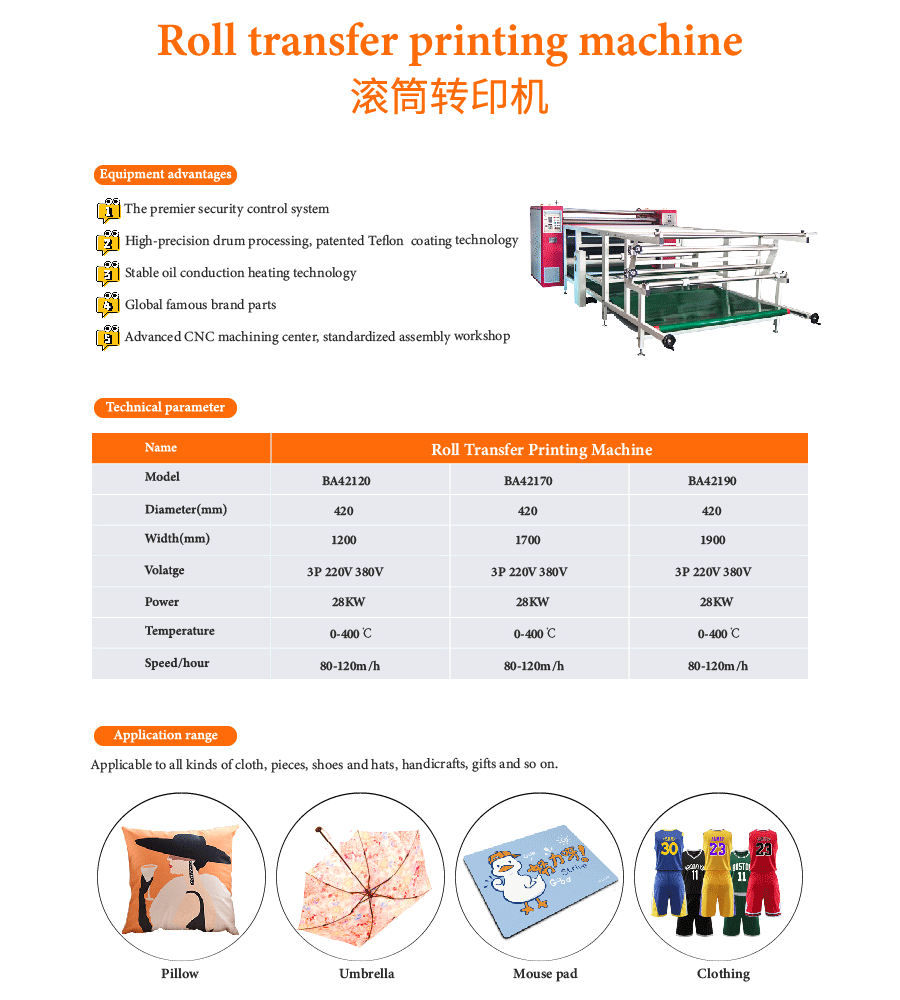

Technical Parameters

Model	BB42170	BB42190
Roller size	Diameter 420*1860 mm	Diameter 4210*2050 mm
Roller surface	coated with	coated with
Transfer width	1700 mm	1900 mm
Transfer speed	120 m/h	120 m/h
The main machine dimension(m)	2.511.2	2.6411.2
The work table dimension(m)	3.51.880.9	3.52.050.9
installed dimension(m)	4.52.51.2	4.52.641.2
Blanket separation method	Manual	Manual
power supply	3-phase 380 V	3-phase 38 0V
Heating temperature	260℃	260℃
Conveyor belt material	PVC	PVC

Main Features

1.The most advanced technology and imported units are adopted by machine controlling system with automatic positioning, accuracy together with security, electronic constant temperature controlling with high accuracy, long service life and other features.

2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature.

3.Printing speed is equipped with continuous speed adjustment system, feeding equipment is convenient for operation with swiftness and high reliability.

4.Equipped with continuous speed adjustment system, you can adjust printing speed as you need.

5.The roller was heating up with oil and temperature heating system.

6.We can provide total service for heat sublimation print technology,

7.Get CE certificate,1 year warranty

Detailed Images

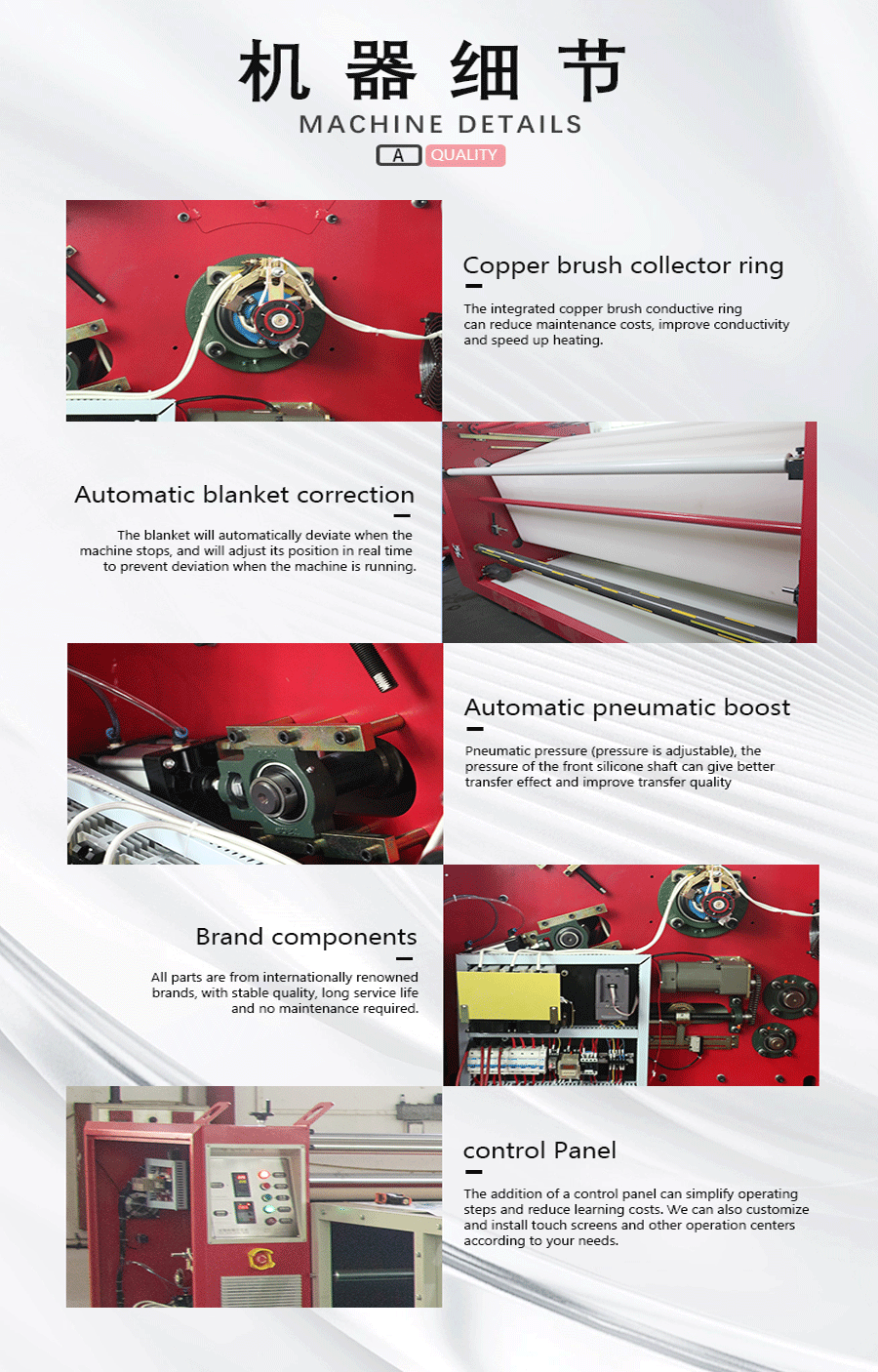

1.Drum
Roller is made by seamless steel pipe, coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.Life time is 5-8 years.

2.Integrated Slip Ring
Integrated slip ring, with a safety protection device, can solute all kinds of problem in the course of using carbon brush slip ring.Transmission date mote stable .Maintenance -free.

3. Air Swelling Shaft

used air swelling shaft, improve work efficiency.Short inflatable operation time, easy to operation, carrying a large weight. Winding more tightly.Every machine has two air swelling shaft, winding used sublimation paper and protective paper.

4.PVC Conveyor
PVC conveyor belt with flat, smooth, not easy to heat, but easy to maintain the original state of textile after the transfer; conveyor belt with a network structure, easy to heat, but short life, light textiles easily lead to wrinkles. PVC conveyor belt mainly for the user to provide a variety of textile transfer convenience. Users can choose according to their own needs.
