Product details

Manual Gilding For PVC Napkins Cloth

The manual hot stamping machine is a hot stamping machine with a relatively simple structure, and it uses human power as the power source. Although the market share is shrinking day by day, it is still widely used in the proofing workshop of some factories and the testing of bronzing paper, the production of gifts with small orders, the production of fake baits in fishing sports, and the inspection of some paper packaging industries.
The manual hot stamping machine and the pneumatic hot stamping machine use the same heating device and temperature control device, and the automatic hot stamping paper winding device. The hot stamping process uses human power to push the hot plate down and touch the product to achieve hot stamping, and the operation and adjustment are more convenient.

394

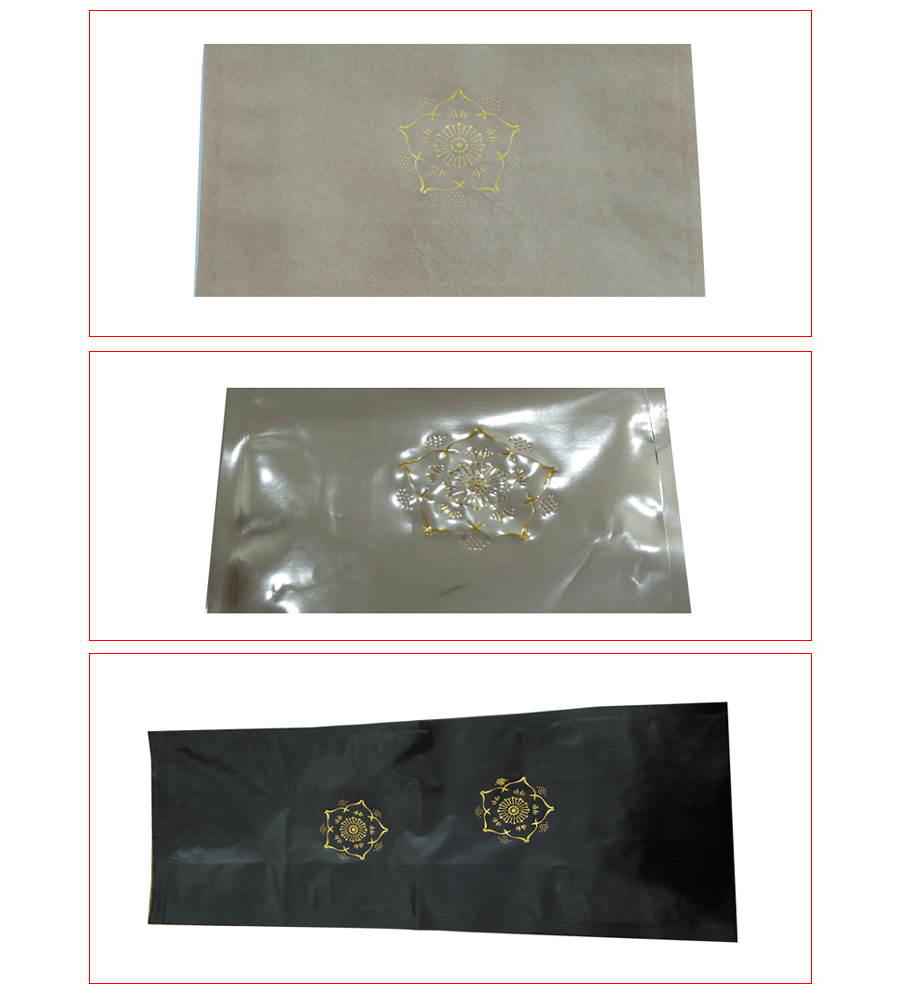

Gilding machine is used for stamping on plain work-piece. Large table make it could fix big products on the stamping machine worktable. Manual hot foil stamping machine could stamp on all kinds of flat products like paper.Wedding invitation cards, greeting cards, you could get all kinds of cards via this manual hot foil stamping machine, gold or silver stamping make it shine.

Manual Gilding For PVC Napkins Cloth//Technical Parameters

ITEM	HM-TC3030LT	HM-TC3035LT	HM-TC3040LT	HM-TC3045LT
Size of Hot Plate(mm)	300×300	300×350	300×400	300×450
Work Table Size(mm)	420×500	420×500	420×500	420×500
Max. Pressure(mm)	4000	4000	4000	4000
Max. Head Stroke(mm)	40	40	40	40
Heater Capacity(W)	1200	1200	1200	1200
Temperature adjustment	0-300℃	0-300℃	0-300℃	0-300℃
Gross weight (Kg)	160 kg	180 kg	220 kg	260 kg
Package(mm)	840×840×1140
Works supply	1 phase 220V power supply

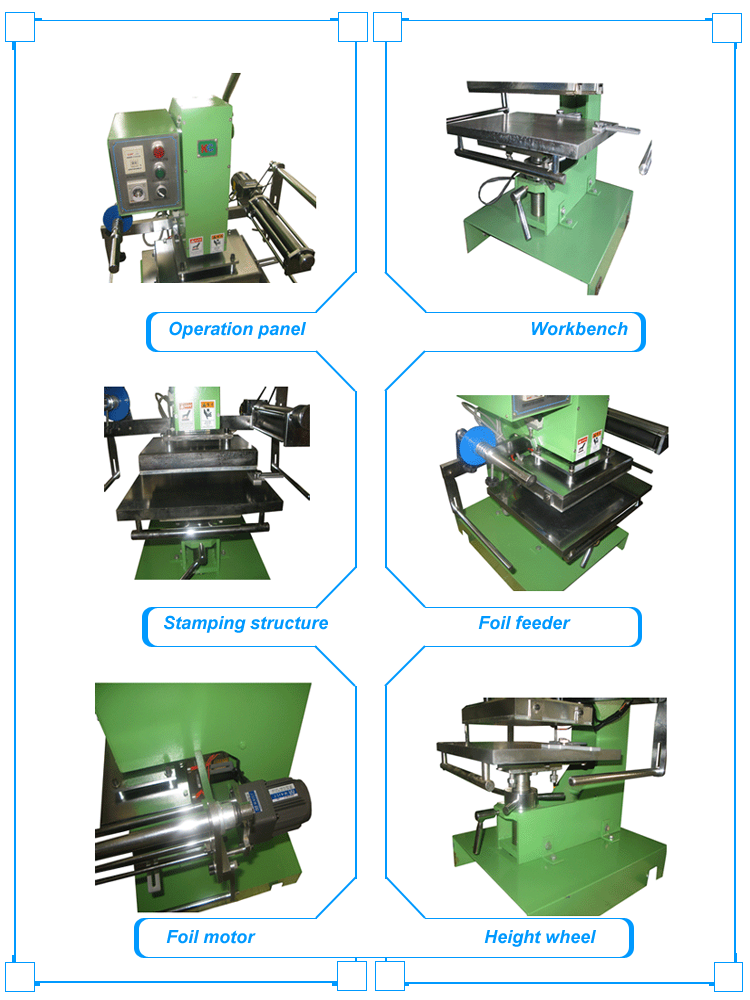

Manual Gilding For PVC Napkins Cloth //Details

Manual Gilding For PVC Napkins Cloth //Advantage

Table can be manually pulled out for easy product to take on and off;
Table can be back-front, rotate adjustment, quick easy safe operation;
Stamping plate with screw height adjustment control, precision and stability;
Automatic temperature control system, temperature can be set freely;
Stamping time can be adjusted;
Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
Heating pipe heating systems, long life, easy to replace;
Manual stamping operation, self-locking mechanism Pressing constant pressure;
High-strength steel plate and cast gilt table, flatness
