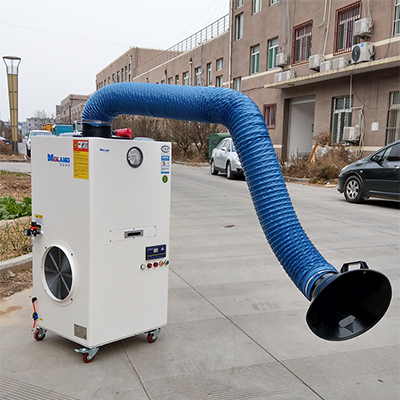

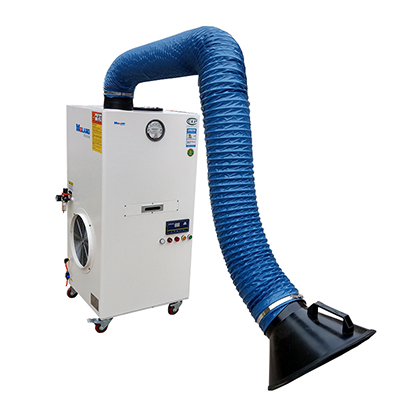

Moland MLWF220FA is a Mobile Industrial Fume Extractor with Cartridge Filter, mechnical vibration cleaning system and intelligent control system.
Key words: Mobile Fume Extractors, Industrial Dust Collectors, Downdraft Tables, Fume Extractor with Extraction Arm
Application
This Mobile Fume Extractor is applicable to the treatment of welding fume with large smoke production, such as non alloy steel, precious, metal, galvanized material, aluminum, etc. It can work continuously for a long time, and it is applicable to W3 welding.
Standard Configuration
*Filter Element: filtration efficiency >99.9%, 0.3um
* 2m / 3m universal flexible suction arm
* Fault phase protection and overload protection device

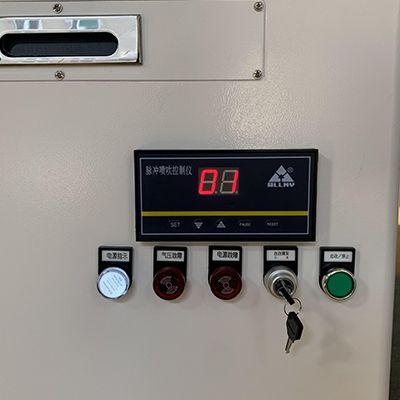

* Pulse controller
* Power supply and air supply alrm
* Differential pressure gauge
* 5m power cord
* Spark catcher ( large particle dust pre filter0
* Suction arm (Dia.200mm*3m)
Performance Description
The dust purifier has passed the product certification of CCEP China Environmental Protection Industry Association, and the filtration efficiency is >=99.9%.
Advantages of self-developed dust cleaning system:
* Ensure that the cartridge filter can have high permeability for a long time and keep good dust collection effect.
* The required dust removal pressure and compressed air consumption are low. The cleaned dust is collected in the dust collection drawer and can be cleaned regularly according to the use condition.
* The dust cleaning system shall continue to work after the fan is shut down to ensure the dust cleaning effect.
* Power status monitoring: alarm for over-voltage and undere-voltage in case of wrong phase disconnection to prevent damage of motor and electrical parts.
* Air source status monitoring: alarm when the air source pressure is too low to prevent incomplete dust cleaning. The differential pressure gauge can directly display the filter element use status.
Technical Parameters

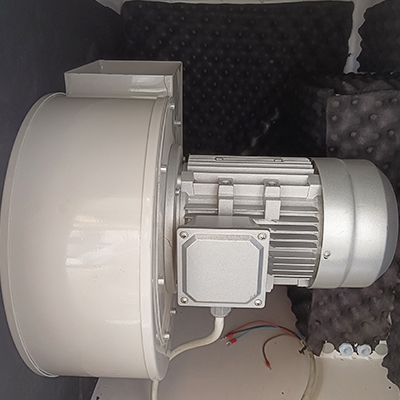

| Motor Power | 1.5KW |
| Working Voltage | 380V 50Hz |
| Air Volume | 2200 m3/h |
| Accuracy | 0.3um |

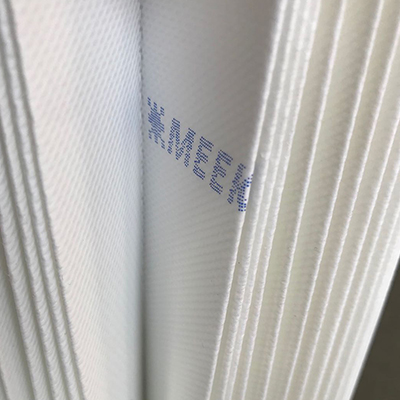

| Filter Material | Flmae retardant film coated polyester fiber |
| Filter Area | 10 m2 |

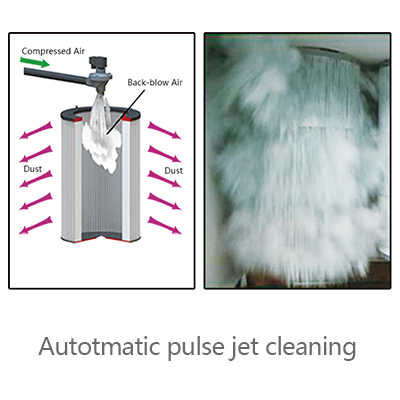

| Cleaning Mode | Automatic pulse jet cleaning |
| Noise Level | 65dBA |
| Size | 600*600*1405mm |
| Weight | 125kg |

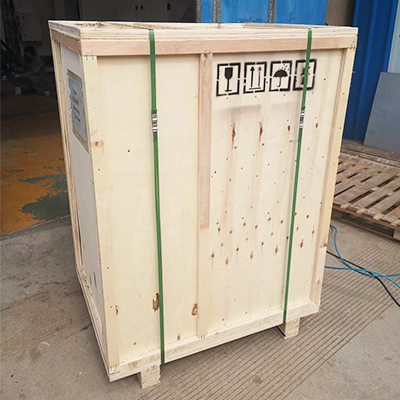

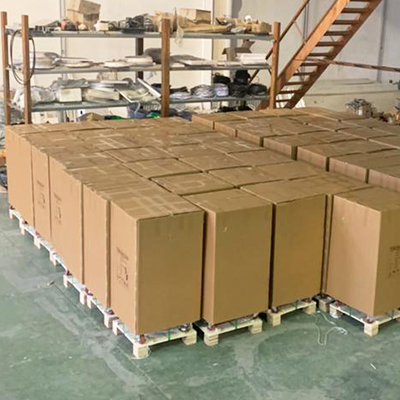

Product Display and Packing
 |
 |
|
|
|
 |
 |
We also supply other models of Mobile Fume Extractors, stationary Industrial Dust Collectors, CNC Cutting Smoke Extractors, Polishing Downdraft Tables, etc. Welcome to contact us for more information.
