YZPST-2CLG20KV/0.2A
Features
Avalanche characteristic
More sizes to choose
epoxy
Resin molded in vacuum,have anti-corrosion in the surface.
Tj: -40℃—+150℃
Applications
High voltage rectifier used in electrostatic cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly
Maximum Rating
|
Item |
Symbol |
Unit |
Conditions |
Voltage |
|
|
Repetitive Peak Reverse Voltage |
VRRM |
KV |
Ta=25℃ IR=1.0μA |
20.0 |
40.0 |
|
Non-Repetitive Peak Reverse Voltage |
VRsM |
KV |
Ta=25℃ IR=1.0μA |
24.0 |
48.0 |
|
Average Forward Current |
IF(AV) |
mA |
（50KHz Half-sine Wave , Resistance load T break=50℃) |
200 |
200 |
|
Surge Forward Current |
IFSM |
A |
0.01S Half-Sine wave 50Hz |
20 |
20 |
|
Operating Ambient Temperature |
Ta |
℃ |
|
-40~ +150 |
-40~ +150 |
|
Reverse Recovery Time |
trr |
nS |
IF=2mA IR=4mA IRR=1mA |
100 |
100 |
|
Storage Temperature |
T stg |
℃ |
|
-40~ +125 |
-40~ +125 |
| Forward Peak Voltage | VFM | V | Ta=25℃ IF=0.2A | ≥51 | ≥68 |
| Peak Reverse Current | IRRM1 | μA | Ta=25℃ VRM=VRRM | 2 | 2 |
| IRRM2 | μA | Ta=100℃ VRM=VRRM | 20 | 20 |

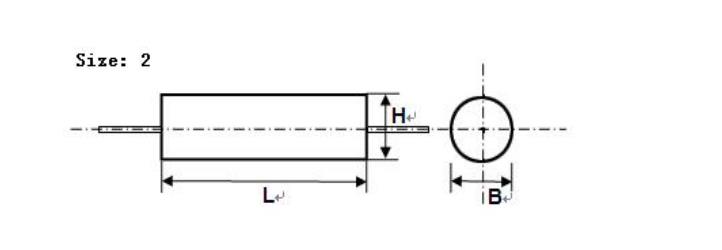

Dimensions (Unit: mm)
|
Item |
L |
B(H) |
Axial Lead |
|
2CLG20KV/0.2A |
25 |
8 |
Dia 1.2mm |
|
2CLG40KV/0.2A |
60 |
8 |
Dia 1.2mm |
