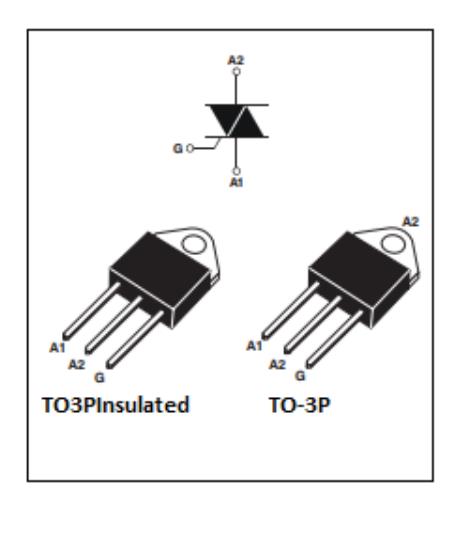

30A 600V TRIAC YZPST-BTA30-600V
DESCRIPTION:
The BTA30 triac series is suitable to fit all models of
control Found in applications such as motor
control ,industrial and domestic lighting ,heating and
static switching , motor speed controllers,…Thanks to
their clip assembly technique, they provide a superior
performance in surge current handling capabilities
By using an internal ceramic pad, the BTA series
provides voltage insulated tab (rated at 2500VRMS)
complying with UL standards.
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40 ~175 |
℃ |
|
Operating junction temperature range |
Tj |
-40~150 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
600 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
600 |
V |
|
Non repetitive surge peak Off-state voltage |
VDSM |
VDRM +100 |
V |
|
Non repetitive peak reverse voltage |
VRSM |
VRRM +100 |
V |
|
RMS on-state current |
IT(RMS) |
30 |
A |
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
300 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
378 |
A2S |
|
Critical rate of rise of on-state current (I =2×IGT) |
dI/dt |
50 |
A/μS |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
4 Quadrants
| Symbol | Test Condition | Quadrant | Value | Unit | |
| IGT | Ⅰ Ⅱ Ⅲ | MAX. | 20 | mA | |
| VGT | V =12V R =33Ω | Ⅰ Ⅱ Ⅲ | MAX. | 1.3 | V |
| VGD | VD=VDRM Tj=125℃ R=3.3KΩ | Ⅰ Ⅱ Ⅲ | MIN. | 0.2 | V |
| IL | IG=1.2IGT | Ⅰ Ⅲ | MAX. | 50 | mA |
| Ⅱ | |||||
| IH | IT=100mA | MAX. | 40 | mA | |
| dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MIN. | 400 | V/μs | |
STATIC CHARACTERISTICS
| Symbol | Parameter | Value(MAX.) | Unit | |
| VTM | ITM =4.5Atp=380μs | Tj =25℃ | 1.5 | V |
| IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
| IRRM | Tj =125℃ | 1 | mA | |

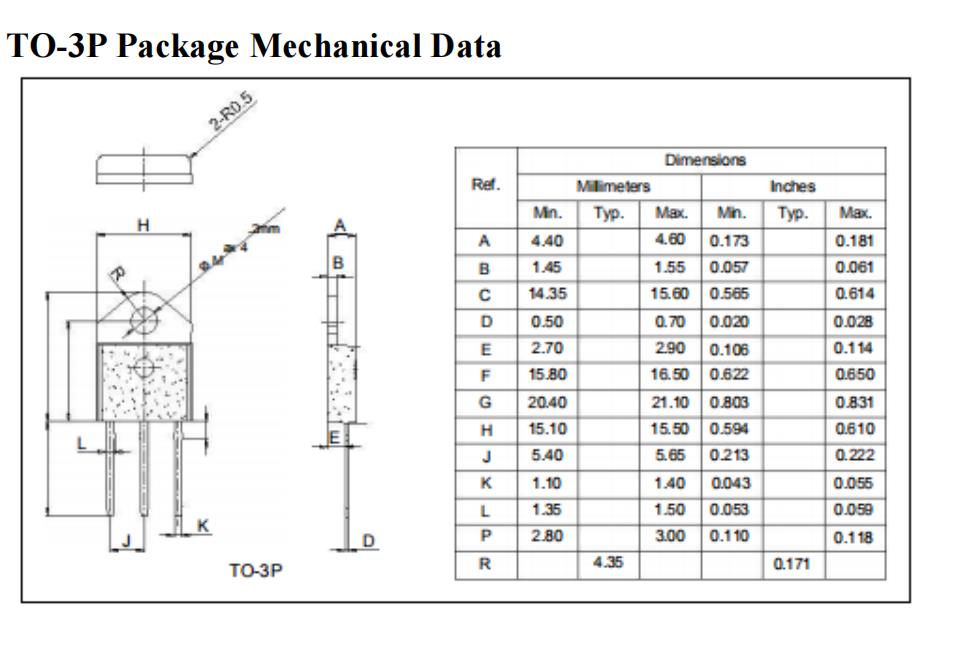

TO-3P Package Mechanical Data
