Symbol |
Condition |
Ratings |
Unit |
|
IT(AV) |
Single phase,half wave,180° conduction, TC=116°C |
150 |
A |
|
ITRMS |
Single phase,half wave,180° conduction, TC=116°C |
230 |
A |
|
ITSM |
Tj=150°C |
3000 |
A |
|
I2t |
Tj=150°C |
38 |
kA2S |
|
VDRM/VRRM |
|
400/400 |
V |
|
di/dt |
non-repetitive |
100 |
A/us |
|
Viso |
A.C.1minute |
3000 |
V |
|
Tj |
|
-30 ~ + 150 |
°C |
|
Tstg |
|
-30 ~ + 125 |
°C |
|
W |
approximate |
250 |
g |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
IDRM /IRRM |
AtVDRM,Single phase,half wave,Tj=150°C |
40 |
mA |
|
VTM |
On-State Current 450A,Tj=150°C |
1.2 |
V |
|
VT(TO) |
Tj=150°C |
- |
V |
|
tgd |
Tj=25°C |
- |
us |
|
tq |
Tj=150°C |
- |
us |
|
IGT/VGT |
Tj=25°C |
100 / 3.0 |
mA/V |
|
VGD |
VD=67%VDRM , Tj=150°C |
0.25 |
V |
|
DV/DT |
VD=67%VDRM |
200 |
V/us |
|
IH |
Tj=25°C |
- |
mA |
|
IL |
Tj=25°C |
- |
mA |
|
Rth(j-c) |
Per Module |
0.15 |
°C/W |

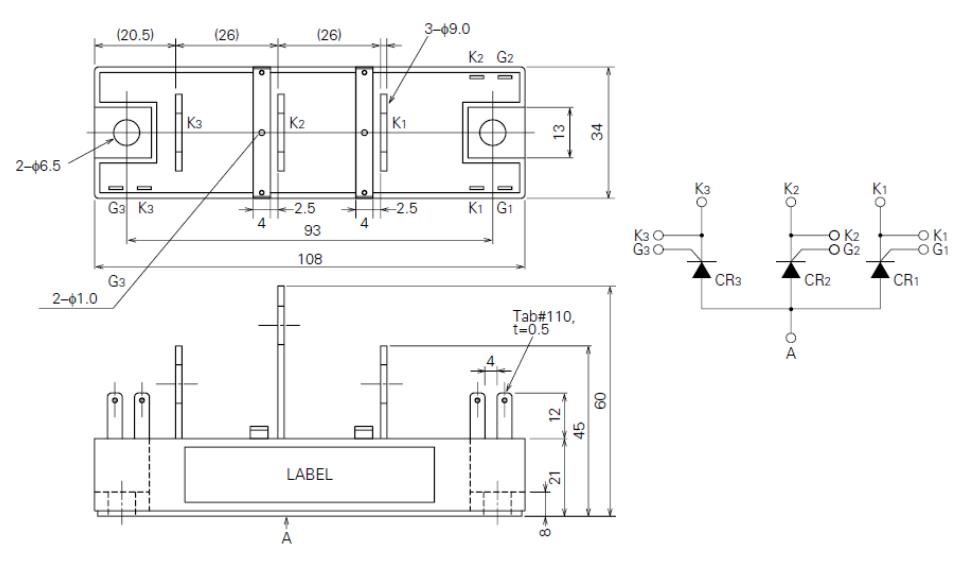

Outline Drawing
