· Battery chargers
BLOCKING
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM VRSM |
Tj= Tj Max. |
1800 1900 |
V |
|
IRRM |
AtVRRM ，Single phase ，half wave ，Tj= Tj Max. |
20 |
mA |
|
VINS |
50Hz, 1S/1min |
3000/2500 |
V |
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV)M |
TC=100°C; 180° sine |
171 |
A |
|
IF(RMS)M |
TC=100°C; 180° sine |
270 |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
5600 |
A |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
157 |
kA2S |
|
VF(TO) |
(I > π x IF(AV)),Tj= Tj Max. |
0.75 |
V |
|
rF |
(I > π x IF(AV)),Tj= Tj Max. |
0.8 |
mΩ |
|
VFM |
On-State Current 500A ，Tj= Tj Max. |
1.26 |
V |
Electrical Characteristics
Symbol
Condition
Ratings
Unit
Rth(j-c)
Per Module
0.13
°C /W
Rth(c-h)
Per Module
0.03
°C /W
Tj
-40 ~ + 150
°C
Tstg
-40 ~ + 150
°C
M
mounting torque
6
Nm
terminal torque
6
Nm
W
310
g

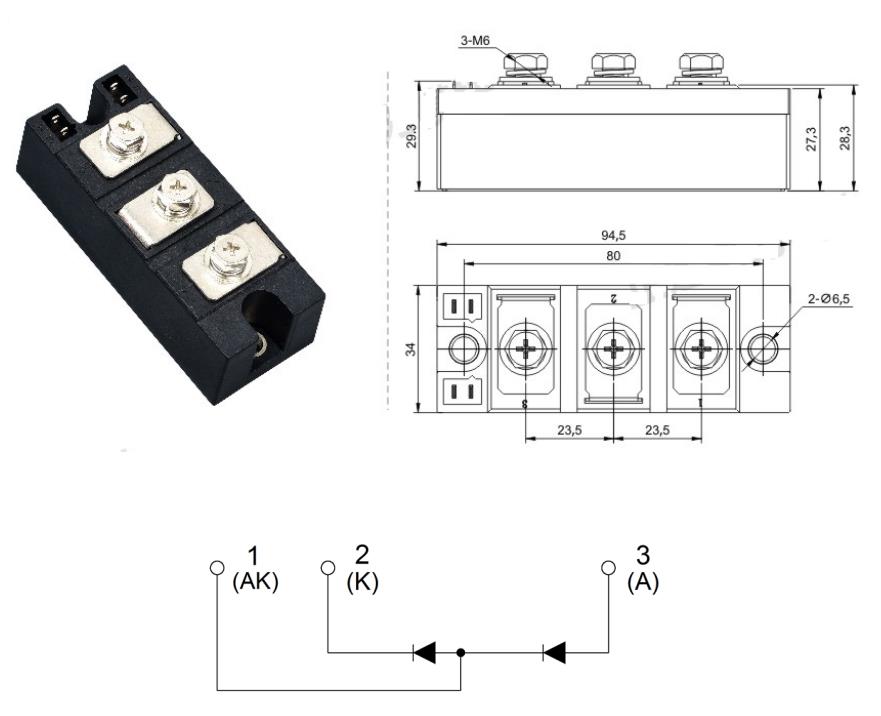

Outline Drawing
